Summary of Contents for SereneLife SLFPS3

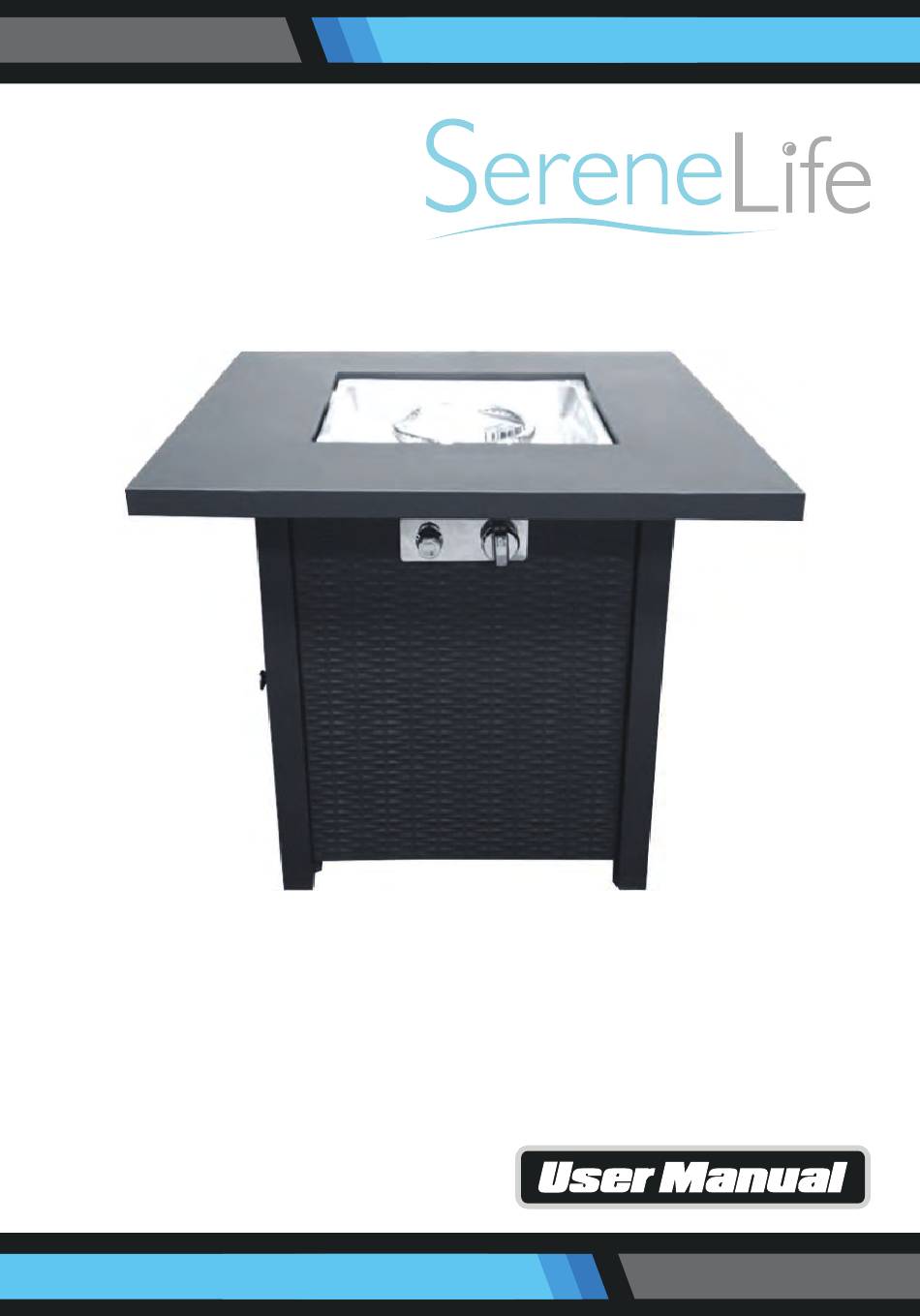

- Page 1 SLFPS3 Propane Gas Fire Pit Table 28 inches 40,000 BTU Square Gas Firepits with Cover for Outside...
- Page 2 DANGER FIRE OR EXPLOSION HAZARD If you smell gas: • Shut o gas to the appliance. • Extinguish any open ame. • If odor continues, leave the area immediately. • After leaving the area, call your gas supplier or re department. Failure to follow these instructions could result in re or explosion, which could cause property damage, personal injury, or death.
-
Page 3: Safety Information
SAFETY INFORMATION Before you assemble or operate this unit, please carefully read this entire manual. Failure to do so may result in a re, explosion, injury or death. WARNING • The installation of this unit must adhere to local codes or Propane Storage and Handling Code, CSA B149.2. - Page 4 • Always ensure that lava rocks/pumice stones/LavaGlass are completely dry before use. Failure to do so will cause them to crack or pop. • Do not operate unit until all parts are fully assembled. • Do not paint or color any part of this heating unit. •...
- Page 5 • All installation and repair should be done by a quali ed professional. This unit should be inspected annually and cleaned regularly. • Inspect all elements of this heating unit before each use. If there is damage, the burner must be replaced. •...
- Page 6 IF APPLICABLE: • Allow heating item to cool completely before placing on lid. • DO NOT use heating item while lid is installed. Always remove the lid while heating item is in use. WARNING • Do not light or use gas unit if lava rocks are wet. Ensure lava rocks are completely dry before igniting as intense heat could cause the rocks to crack.
- Page 7 WARNING When you turn the cylinder, the gas hose needs to be straightened during use. Otherwise the hose may melt and cause a re. SAFETY INFORMATION Only use the regulator and hose assembly provided with this unit. Replacement parts must be supplied directly by us. Inspect the burner before use of this unit.
-
Page 8: Description Qty
Combustible materials should not be within 60 inches of the top of the unit, or within 48 inches around the entire unit. HARDWARE DESCRIPTION ITEM M6 x 12 Screw M6 x 25 Screw Before beginning assembly of this product be sure all parts are present. Compare parts with package contents list and hardware contents list. - Page 9 ASSEMBLY INSTRUCTIONS • Please keep this owner’s manual for future reference. • Do not exceed 1/4” depth of small lava rocks directly above burner holes. Applying too many lava rocks may result in unburned gas pooling in the re bowl. Ventilation is required to allow fresh air in and any residual gas to escape. •...
- Page 10 B. Locate the battery and remove from plastic. Unscrew the rubber cap of the electric igniter and place AA battery into the battery case. Make sure the positive pole ("+") is towards the cap. Screw the cap back onto the battery case tightly. See Figure B. Figure B C.
- Page 11 1. Check that the control knob (M) for the gas supply system is turned to the “OFF” position before starting any assembly. 2. Attach leg (G/H/I/J) to the metal stand (K) using 4 pcs. screws (BB) and 4 pcs washers (CC). 3.
- Page 12 6. Put the lid 7. Place propane gas tank (not included) into the metal stand (K). Make sure the gas tank sits on the metal stand (K) completely. Turn the preassembled wing screw on the outer part of metal stand (K) clockwise to secure the propane gas tank tightly.
-
Page 13: Operation
OPERATION Before performing a leak test, be sure that no sparks can occur and you are in a spacious outdoor area. Connect the propane gas tank to the regulator and turn the valve on the unit to the “o ” position. Brush a soap and water mixture on all connections. -
Page 14: Maintenance
To Extinguish 1. Turn control knob clockwise to the "HIGH" position; push and continue turning the control knob to the "OFF" position. 2. Close the cylinder valve on the propane gas tank if you don't intend to use it for a long time. -
Page 15: Troubleshooting
TROUBLESHOOTING Problem Cause Solution Igniter pin and burner are wet Dry o with a soft cloth Igniter battery is incorrectly Check which direction the inserted battery is inserted Contact us for parts Igniter pin is broken replacement Heating unit won’t light Reconnect wire to the igniter box located inside... - Page 16 TROUBLESHOOTING Problem Cause Solution No gas ow Check that the gas tank isn’t empty Turn the control knob to Excess ow safety valve has been activated the ‘o ’ position. Close the Sudden drop in tank valve and disconnect gas ow propane gas tank.
- Page 17 Features: • Not Convertible to Natural Gas • With Fire Pit Cover Lid • Stainless Steel Fire pan • Assembled Gas Hose Regulator • Adjustable Flame Height by Valve Knob • Sturdy Metal Gas Fire Pit Table • Easy to Put Propane Tank, In, and Out •...
- Page 18 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
