ATI Technologies PortaSens II O & M Manual

Portable gas leak detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

PortaSens II
Portable Gas Leak Detector
Home Office
Analytical Technology, Inc.
6 Iron Bridge Drive
Collegeville, PA 19426
Ph:
800-959-0299
610-917-0991
Fax: 610-917-0992
Email:
sales@analyticaltechnology.com
Model C16
European Office
ATI (UK) Limited
Unit 1 & 2 Gatehead Business Park
Delph New Road, Delph
Saddleworth OL3 5DE
Ph: +44 (0)1457-873-318
Fax: + 44 (0) 1457-874-468
Email:
sales@atiuk.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PortaSens II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATI Technologies PortaSens II

Summary of Contents for ATI Technologies PortaSens II

  • Page 1 PortaSens II Portable Gas Leak Detector Model C16 Home Office European Office Analytical Technology, Inc. ATI (UK) Limited 6 Iron Bridge Drive Unit 1 & 2 Gatehead Business Park Collegeville, PA 19426 Delph New Road, Delph Saddleworth OL3 5DE 800-959-0299...

  • Page 2: Product Warranty

    PortaSens II Portable Gas Leak Detector, Model C16 PRODUCT WARRANTY Analytical Technology, Inc. (Manufacturer) warrants to the Customer that if any part(s) of the Manufacturer's equipment proves to be defective in materials or workmanship within the earlier of 18 months of the date of shipment or 12 months of the date of start- up, such defective parts will be repaired or replaced free of charge.

  • Page 3: Table Of Contents

    PortaSens II Portable Gas Leak Detector, Model C16 Table of Contents PRODUCT WARRANTY ..........2 .......... 33 AMPLE ETTINGS Sampling Time (SAMP) ........33 SPECIFICATIONS ............4 Measuring Time (MEAS) ......... 33 INTRODUCTION ............5 Clearing Limit (CLEAR) ........33 II ............

  • Page 4: Specifications

    PortaSens II Portable Gas Leak Detector, Model C16 SPECIFICATIONS Gas Sensor Accepts H10 “Smart Sensor” gas sensor modules (not included) Range Sensor dependent (see Smart Sensor Modules on page 50, or contact ATI) Display Backlighted, graphics LCD Accuracy Sensor dependent (typically ± 5% of value, limited by cal. gas)

  • Page 5: Introduction

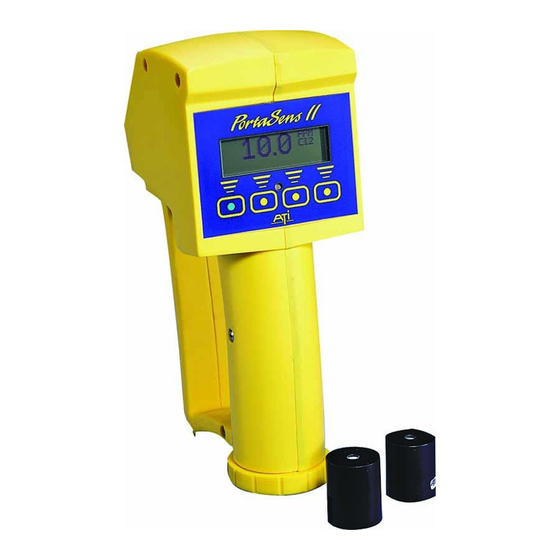

    INTRODUCTION PortaSens II The PortaSens II is a rugged, hand-held device used to detect leaks of toxic gas, and also to detect oxygen displacement or deprivation. It adapts quickly to measure different gasses by inserting the appropriate gas sensor module. The modules retain all of the calibration and configuration settings for the target gas, such as the full scale range and alarm settings.

  • Page 6: Package Contents

    PortaSens II Portable Gas Leak Detector, Model C16 Package Contents The following items are included. PortaSens II Gas Leak Detector (Figure 1) Sampling Wand (Figure 2) Outlet Tube Barbed Fitting (Figure 2) Sensor Keeper (Figure 6) Flow Meter (Figure 7)
  • Page 7 PortaSens II Portable Gas Leak Detector, Model C16 Figure 2. PortaSens II,Rear View (ATI-0403) O & M Manual Rev-J 7/15 - 7 -...
  • Page 8 PortaSens II Portable Gas Leak Detector, Model C16 Figure 3. PortaSens II, Side View (ATI-0402). O & M Manual Rev-J 7/15 - 8 -...
  • Page 9 PortaSens II Portable Gas Leak Detector, Model C16 Figure 4. C16 Port (8-position MINI-DIN, female receptacle) Pin No. Signal Description DB9 Pin on Cable 03-0201 /CTS Input Clear to send - assert to suspend device output. /RTS Output Request to send – asserted by device before transmit.
  • Page 10 PortaSens II Portable Gas Leak Detector, Model C16 Output Transmit data – device transmits data on this pin. AOut Output Analog output – 0-1 VDC output, proportional to gas concentration reading: AOut = gas_rdg/sensor_range * 1.0 VDC Not connected. AOut Com.
  • Page 11 PortaSens II Portable Gas Leak Detector, Model C16 Figure 5. H10 Gas Sensor Module (not included) 00-0981 H10 Sensor Keeper Replace Battery every Six (6) Months Figure 6. Sensor Keeper Figure 7. Flow Meter O & M Manual Rev-J 7/15...

  • Page 12: Smart Sensor

    PortaSens II Portable Gas Leak Detector, Model C16 SMART SENSOR The PortaSens II measures gas concentration levels using “Smart Sensor” modules, which store their calibration and configuration settings, such as, zero, span, range, and alarm levels. This allows them to be quickly changed to detect leaks of different toxic gasses, or to detect oxygen displacement or deprivation.

  • Page 13: Sensor Response Times

    PortaSens II Portable Gas Leak Detector, Model C16 Sensor Response Times The table below lists the time required to obtain readings of 66%, and 90%, of an instantaneous exposure to various gasses. The times listed are for the sensor only, and do not include travel time through the wand or tubing, or digital damping by the device.

  • Page 14: Gas Interferences

    PortaSens II Portable Gas Leak Detector, Model C16 Gas Interferences Some sensors exhibit a minor sensitivity to non-target gases and vapors. Table 3 lists the cross- sensitivity factors of sensors to various, “interference” gases. To use the table, find the sensor type along the top, and then scan down the column for the factor corresponding to one of the interference gases listed on the left.
  • Page 15 PortaSens II Portable Gas Leak Detector, Model C16 Notes on Interference Table: Sensors marked with an asterisk (*) in the oxygen column are 3 electrode sensors that require a minimum of 5% oxygen to operate properly. Hydrogen sensors require oxygen levels at least two times the maximum percent hydrogen value to be measured.

  • Page 16: Operation

    OPERATION Quick Start The PortaSens II is simple to operate. After removing the device from the storage case, install a gas sensor module (see Changing the Sensor on page 12) and plug the sampling wand into the inlet port of the manifold (Figure 2 on page 7).

  • Page 17: Startup Sequence

    PortaSens II Portable Gas Leak Detector, Model C16 Startup Sequence The startup sequence for a typical device with an ammonia sensor is shown in the table below. The gas symbol, range, and alarm settings will vary according to the installed sensor.

  • Page 18: Gas Concentration Reading

    PortaSens II Portable Gas Leak Detector, Model C16 Gas Concentration Reading The gas concentration reading appears on the device display Range Resolution with the units of measure, and the gas symbol. The range setting of 0.00 to 4.99 0.01 the device determines the resolution of the reading, as shown in the 5.0 to 49.9...

  • Page 19: Batteries

    PortaSens II Portable Gas Leak Detector, Model C16 Batteries The primary battery is a standard, alkaline D-cell. It is housed in the handle of the device and will operate the device continuously for approximately 75 hours. If the primary battery becomes discharged, or disconnected, a secondary (rechargeable) battery will supply power for up to 6 hours.

  • Page 20: Led Indicator

    PortaSens II Portable Gas Leak Detector, Model C16 LED Indicator The LED on the panel indicates battery status. It lights steady when the charge cable is connected. When the cable is disconnected, the LED flashes once every six seconds to indicate the device is capable of starting (one, or both, batteries are ready).

  • Page 21: Response Test

    PortaSens II Portable Gas Leak Detector, Model C16 Response Test A response test is recommended before each use. Table 5 lists methods for generating gas that are appropriate for a target gas. Contact ATI for details on other methods. Table 5. Gas Generation Methods.

  • Page 22: Inlet And Outlet Extensions

    PortaSens II Portable Gas Leak Detector, Model C16 Inlet and Outlet Extensions The inlet port is located on the manifold lid and features a quick-disconnect fitting (see Figure 2 on page 7). The fitting permits connection of the flexible wand, for probing around mechanical equipment, and sampling confined spaces without entering.

  • Page 23: Operating Modes

    PortaSens II Portable Gas Leak Detector, Model C16 Operating Modes The four operating modes of the device are Normal, Sample, Configuration, and Calibration mode. The mode affects how, and when, the gas concentration reading is updated on the display. The operating mode also determines if alarms are enabled or disabled (inhibited).
  • Page 24 PortaSens II Portable Gas Leak Detector, Model C16 The device displays the time remaining in the second interval while it collects readings and averages them. On MEASURING 00:30 expiration, the device beeps and continues with display ABORT SM3. ABORT – ends Sampling mode and returns to the Main Display, D10, and resumes Normal mode.

  • Page 25: Alarms

    PortaSens II Portable Gas Leak Detector, Model C16 Alarms The device features three level alarms designated as Caution, Warning, and Alarm, in order of increasing severity. The levels are stored in the H10 sensor memory, and are read at startup, and when a sensor is installed.

  • Page 26: Low Flow Alarm ("Pump Trouble")

    PortaSens II Portable Gas Leak Detector, Model C16 Low Flow Alarm (“Pump Trouble”) The device contains an internal diaphragm pump, which forces a continuous sample stream of gas to the sensor at a rate of approximately 400 cc/min. A blockage in the inlet or outlet port causes the pump motor to stall, and the device compensates by increasing the pump motor speed.

  • Page 27: Device Configuration

    Portable Gas Leak Detector, Model C16 DEVICE CONFIGURATION The PortaSens II configuration is the combined user and calibration settings stored in the device and H10 sensor memories. Some settings are considered critical to the safe operation of the device, and require a special key press sequence to change them.

  • Page 28: Alarm Settings

    PortaSens II Portable Gas Leak Detector, Model C16 Alarm Settings The device features three alarms named, Caution, Warning, and Alarm. Each alarm has the settings shown below, which may be configured by following the instructions listed in Table 7, below.
  • Page 29 PortaSens II Portable Gas Leak Detector, Model C16 Table 8. Caution settings menu. Display Description/Instructions This displays the settings for the Caution alarm, as indicated by the C symbol on the left side. The numeric digits ¯ represent the set point. The line below C indicates the S.P.
  • Page 30 PortaSens II Portable Gas Leak Detector, Model C16 Table 10. Alarm settings menu. Display Description/Instructions This displays the settings for Alarm, as indicated by the A symbol on the left side. The numeric digits represent the set point. The up arrow, , indicates the alarm functions as a S.P.

  • Page 31: Display Settings

    PortaSens II Portable Gas Leak Detector, Model C16 Display Settings The settings listed below affect the displayed gas concentration reading, which may be adjusted by following the steps detailed in Table 11 below. Range The Range setting determines the 100% full scale reading of the device, which (RANGE) corresponds to the 1v analog output signal.
  • Page 32 PortaSens II Portable Gas Leak Detector, Model C16 Table 11. Reading display settings. Display Description/Instructions While viewing the Main Display, D10, press and hold the MENU key and the unmarked key (button 2) for approximately 5 seconds. When the display is cleared,...

  • Page 33: Mode Settings

    PortaSens II Portable Gas Leak Detector, Model C16 Sample Mode Settings Sample mode uses the following settings, which can be adjusted by following the steps detailed in Table 12 below. Sampling Sampling Time is the interval in which the pump is allowed to run, in order to Time draw a consistent volume of gas.
  • Page 34 PortaSens II Portable Gas Leak Detector, Model C16 Press one of the following keys to edit the Clearing time. ABORT Restores the previous value and returns to SD1. Increments the value ABORT SAVE Decrements the value SAVE Saves the edited value and returns to SD1.

  • Page 35: Sensor Calibration

    Portable Gas Leak Detector, Model C16 SENSOR CALIBRATION The PortaSens II sensor calibration is a two-step process referred to as Zero and Span. Each calibration adjusts settings that are used to compute the gas concentration reading. Since the settings reside in the sensor module, modules may be calibrated separately, and used in any device.

  • Page 36: Span Calibration Steps

    PortaSens II Portable Gas Leak Detector, Model C16 Pressurized Gas Sources Supplying gas to the device from a pressurized source requires a bypass-T to be inserted between the source and the manifold (Figure 11 below). This is required to limit gas pressure on the intake side of the sample pump when the source is open, and prevent the inlet from being blocked when the source is closed.
  • Page 37 PortaSens II Portable Gas Leak Detector, Model C16 Press the ZERO key to display the Zero function, CD2. ZERO SPAN DONE ZERO CALIBRATION If using a pressurized gas source such as Nitrogen, start the flow. ABORT SAVE Wait for the reading to stabilize at its lowest value...

  • Page 38: Data Logger

    PortaSens II Portable Gas Leak Detector, Model C16 DATA LOGGER Data Logger Operation and Settings The device logs (records) time stamped, gas concentration readings in intervals of 1, 5, 10, or 15 minutes. The logged readings range from 0 to the full scale range; therefore, it is important to adjust the Range setting prior to starting the data logger (see Display Settings on page 31).
  • Page 39 PortaSens II Portable Gas Leak Detector, Model C16 Press one of the following keys. 01 Minute Interval 007 Days 20 Hrs Free CLEAR Hold this key down for two seconds to clear the CLEAR START DONE data log memory, which then removes the label above the button.

  • Page 41: C16Log

    The program runs on all versions of Microsoft Windows, on or after Windows 98, including Windows XP, 2000, 7 and 8. The application installs from the CD labeled, “PortaSens II Datalog”, which is supplied with the device, and is also available for download (PortaSensII DataLog.zip) from the ATI website, at: http://www.analyticaltechnology.com...

  • Page 42: Version 2.0 And Higher

    PortaSens II Portable Gas Leak Detector, Model C16 Most adapters implement the USB CDC class, for which Windows has built in drivers. If this is not the case, the computer may need to download the driver from the internet. If this fails, or if the computer is not connected to the internet, or if you are not running Windows Update, you may need to manually install a driver for the particular adapter you are using.

  • Page 43: Configure Tab

    PortaSens II Portable Gas Leak Detector, Model C16 Figure 12. Main Form, Configure Tab Configure Tab The Configure tab controls the connection, data formats, and automatic data transfer settings. File Location Important Note for Windows, Version 7 and Higher The default folder for saving data log files is “C:\Program Files\Analytical Technology\C16Log”.
  • Page 44 PortaSens II Portable Gas Leak Detector, Model C16 Automatic File Names When selected, files names generated by the program are comma separated strings of the form: Log, <gas symbol>,<mm-dd-yyyy>[,n] where, <gas symbol> is the target gas of the logging session, like, H2S, <mm-dd-yyyy>...

  • Page 45: Download Tab

    PortaSens II Portable Gas Leak Detector, Model C16 (default is 24 hour). Separate Check this box to save a separate file for each logging session (default). Files for Each Leave the box unchecked if you prefer to save all sessions to a single file.
  • Page 46 PortaSens II Portable Gas Leak Detector, Model C16 Output Files Output files are ASCII text, beginning with a header, and followed by lines of data records. The header begins with, “C16 PortaSens DataLog Data”, and includes the gas symbol, the full scale range, and units of measurement.
  • Page 47 PortaSens II Portable Gas Leak Detector, Model C16 c. Automatic file name, single file, 24-hour format, comma separated fields. Figure 15. Example output files. O & M Manual Rev-J 7/15 - 47 -...

  • Page 48: Maintenance

    PortaSens II Portable Gas Leak Detector, Model C16 MAINTENANCE Intake Pump Filter The intake pump filter is a small disk of fabric that is located under manifold lid (see Figure 2 on page 7). A blocked filter will slow the response of the device, and cause the pump motor to run at a higher rate, thereby discharging the batteries sooner.

  • Page 49: Spare Parts

    PortaSens II Portable Gas Leak Detector, Model C16 Symptom Possible Cause and Corrective Action Device does not This problem is often caused by a mismatch between the C16Log application’s COM connect to PC port setting, and the actual setting assigned to the port used to connect the device.

  • Page 50: Sensor Modules (Model H10)

    PortaSens II Portable Gas Leak Detector, Model C16 Smart Sensor Modules (Model H10) The table below lists the part number, gas name, and chemical symbol of the target gas for each H10 module, and groups them by gas type. The table also lists the minimum and maximum values of each sensor’s range setting, and the most reading resolution possible.
  • Page 51 PortaSens II Portable Gas Leak Detector, Model C16 Phosgene COCl 0.1 PPM 00-1016 ACID GASES Acetic Acid 1 PPM 00-1045 Acid Gases Acid 0.1 PPM 00-1038 Hydrogen bromide 0.1 PPM 00-1455 Hydrogen chloride 0.1 PPM 00-1017 Hydrogen cyanide 0.1 PPM...
