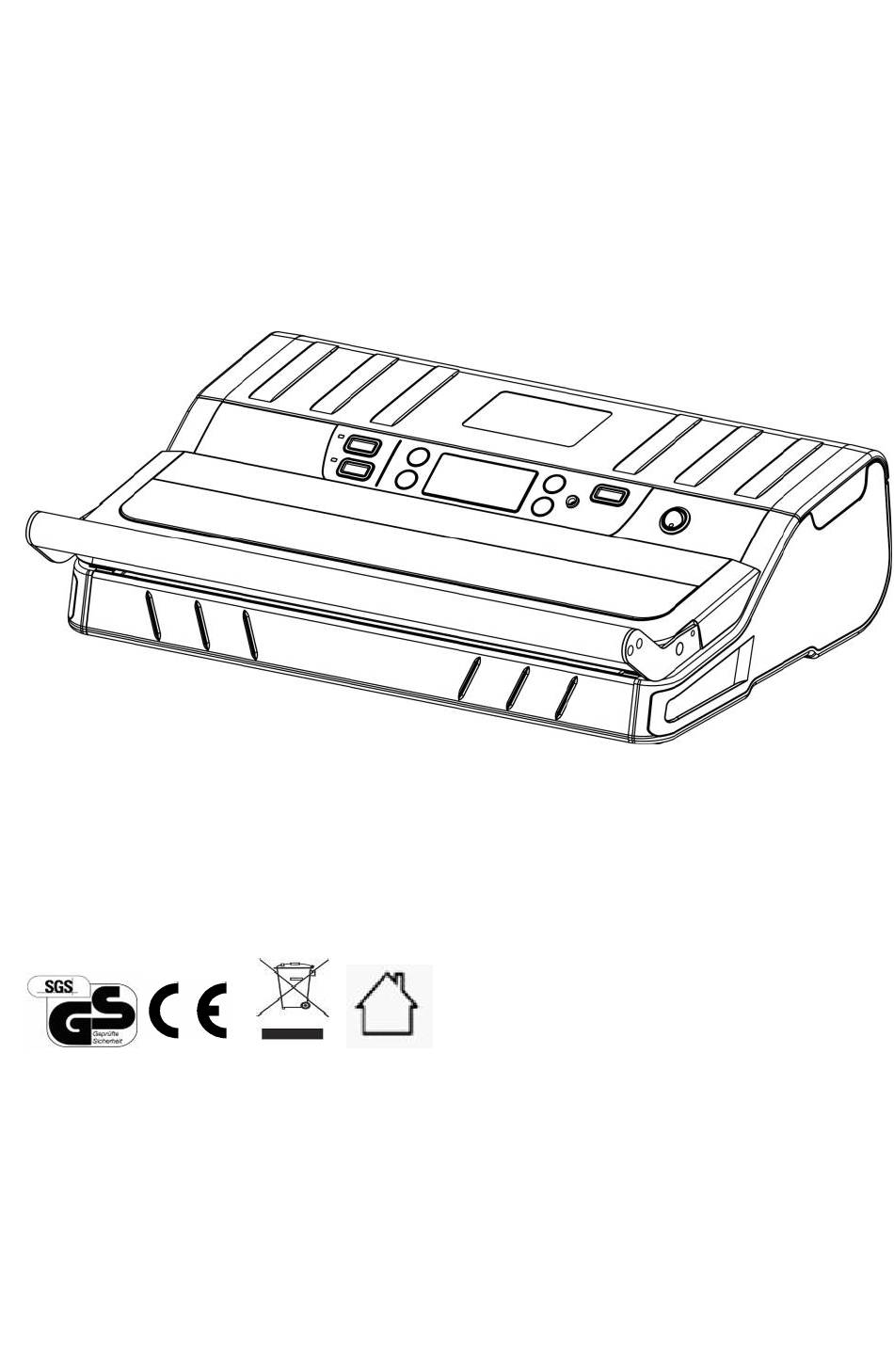

- Page 1 VS5490 VACUUM SEALER INSTRUCTIONS...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS When using this electrical appliance, safety precautions should always be observed, including the following: READ ALL INSTRUCTIONS 1. Carefully read all of the instructions before using this appliance and save for future reference. 2. Before plugging cord into wall outlet, or disconnecting, make sure that the cover of the machine is in unlocked condition, and unplug from outlet when not in use or before cleaning. - Page 3 a heat source. 12. It’s better not to use an extension cord with this unit. However, if one is used, it must have a rating equal to or exceeding the fating of this appliance. 13. When disconnect, to avoid any injury, please unplug by grasp the plug, not the cord.
-
Page 4: Construction And Functions
CAUTION: SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY AB:1MIN PER CYCLE CONSTRUCTION AND FUNCTIONS 1. AUTO VAC/SEAL-DRY: At stand-by condition, it starts the automatic operation of vacuuming the bag and then automatically seals the bag when vacuum is complete; this function for dry bags and items without moisture, with a shorter heat sealing time. - Page 5 4. SEAL ONLY: This button provides two functions: ⚫ To seal the open end of a bag, used to make a bag from a bag roll; ⚫ When the automatic “Vacuum &seal” function is in operation, this button stops vacuuming the bag and immediately starts to seal the bag so that less vacuum pressure inside the bag can be controlled by the operator to avoid crushing for delicate items.
-
Page 6: Front Handle
7.CANISTER: To start vacuuming for canisters, jar lids, wine stoppers or other accessories through a hose. This operation no need to lock the cover. 8. ACC PORT: To insert the hose for canister and wine stopper before “marinates” or “canister” operations. 9. - Page 7 15. SEALING STRIP: Place the bag to be sealed over this strip. Clean and dry or replace it when distorted or broken 16. GASKET: Keep air away by forming vacuum chamber with upper and lower gasket. Clean and dry or replace it when distorted or broken. 17.
-
Page 8: Power Cord
21. POWER CORD FIXER : Storage the power cord. 22. POWER CORD : Power cord. 23. DOOR : ACC pipe storage room door. 24. ROOM : Storage the acc pipe. - 6 -... -
Page 9: Vacuum Packaging With A Bag
OPERATING INSTRUCTIONS I. Making a bag with bag roll 1. Open the back cover . 2. Make sure the bag cutter is on one end of the cutter rack, Then put the cutter rack to the back. 3.Pull out the bag to the suitable length you want. 4.Put down the cutter rack and make sure it is on the right place of the bags, then slide the cutter from one end to the other end to cut the bag. - Page 10 NOTE: This product provides very high vacuum pressure during vacuum packaging with a bag, in order to avoid crushing of the delicate item by the high vacuum pressure, observe the status of the vacuum pressure inside the bag and switch the “ MANUAL SEAL” button immediately when the desired vacuum pressure is achieved.
- Page 11 Ⅳ. Vacuum package in a Canister & Vacuum Bowl 1.Wipe canister cover, canister base and ensure they are clean and dry. 2.Put the items into the canister and do not fill up too full so that the cover can be in good contact with the canister bowl rim. Clean the cover rim of the canister and bottom seal gasket of the canister cover;...
-
Page 12: Cleaning And Maintenance
2.Press Marinate button to start working. The indicator LED will be light and the screen will be show the progress. It will release air automatically after finished vacuum, this is for 1 working cycle, this machine will total working for 5 cycles. It takes about 6 minutes to finish the process. 3.When the indicator light crush out, then the screen show the “complete”, the marinate process is completed. -
Page 13: Troubleshooting
is careful to prevent any damage, and assemble as original position to ensure no vacuum leaking. Vacuum bags 1. Wash bags in warm water with a mild dishwashing soap 2. When wash bags in dishwasher, turn bags inside out and spread them over top rack of dishwasher, so entire surface is exposed to the washing water. - Page 14 Troubleshooting Problem Solution Check if the edge of the bags has liquid, oil stain or any chippings? If yes, please clean the edge of bags and try again. Check if the heating element damage and good setting or not? If damaged, please exchange the heating element and make sure it is well installed.
-
Page 15: Disposal Of The Device
Check if you packed the fresh vegetables or fruit and seed food? All fresh vegetables or fruit and seed are not suitable to storage under room temperature after vacuumed, they have photosynthesis and respiration. Suggest to storage them in refrigerated. DISPOSAL OF THE DEVICE PROTECTION OF THE ENVIRONMENT At the end of the life of your product, it should go to a specially... -
Page 16: Food Preservation Guidelines
FOOD PRESERVATION GUIDELINES Classificatio Normal Vacuum Food Items Temperature Preservation Preservation 5 ± 3 ℃ 2 ～ 3days 8 ～ 9days Fresh Raw Meat Fresh Fish/ Sea 5 ± 3 ℃ 1 ～ 3days 4 ～ 5days Food 5 ± 3 ℃ 4 ～...
