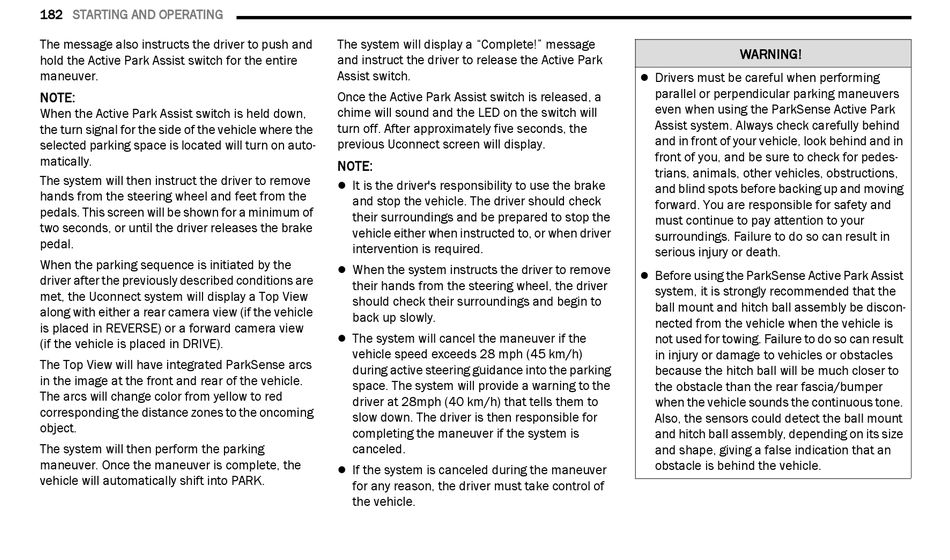

182 STARTING AND OPERATING
The message also instructs the driver to push and
hold the Active Park Assist switch for the entire
maneuver.
NOTE:
When the Active Park Assist switch is held down,
the turn signal for the side of the vehicle where the
selected parking space is located will turn on auto-
matically.
The system will then instruct the driver to remove
hands from the steering wheel and feet from the
pedals. This screen will be shown for a minimum of
two seconds, or until the driver releases the brake
pedal.
When the parking sequence is initiated by the
driver after the previously described conditions are
met, the Uconnect system will display a Top View
along with either a rear camera view (if the vehicle
is placed in REVERSE) or a forward camera view
(if the vehicle is placed in DRIVE).
The Top View will have integrated ParkSense arcs
in the image at the front and rear of the vehicle.
The arcs will change color from yellow to red
corresponding the distance zones to the oncoming
object.
The system will then perform the parking
maneuver. Once the maneuver is complete, the
vehicle will automatically shift into PARK.
The system will display a "Complete!" message
and instruct the driver to release the Active Park
Assist switch.
Once the Active Park Assist switch is released, a
chime will sound and the LED on the switch will
turn off. After approximately five seconds, the
previous Uconnect screen will display.
NOTE:
It is the driver's responsibility to use the brake

and stop the vehicle. The driver should check
their surroundings and be prepared to stop the
vehicle either when instructed to, or when driver
intervention is required.
When the system instructs the driver to remove

their hands from the steering wheel, the driver
should check their surroundings and begin to
back up slowly.
The system will cancel the maneuver if the

vehicle speed exceeds 28 mph (45 km/h)
during active steering guidance into the parking
space. The system will provide a warning to the
driver at 28mph (40 km/h) that tells them to
slow down. The driver is then responsible for
completing the maneuver if the system is
canceled.
If the system is canceled during the maneuver

for any reason, the driver must take control of
the vehicle.
WARNING!
Drivers must be careful when performing

parallel or perpendicular parking maneuvers
even when using the ParkSense Active Park
Assist system. Always check carefully behind
and in front of your vehicle, look behind and in
front of you, and be sure to check for pedes-
trians, animals, other vehicles, obstructions,
and blind spots before backing up and moving
forward. You are responsible for safety and
must continue to pay attention to your
surroundings. Failure to do so can result in
serious injury or death.
Before using the ParkSense Active Park Assist

system, it is strongly recommended that the
ball mount and hitch ball assembly be discon-
nected from the vehicle when the vehicle is
not used for towing. Failure to do so can result
in injury or damage to vehicles or obstacles
because the hitch ball will be much closer to
the obstacle than the rear fascia/bumper
when the vehicle sounds the continuous tone.
Also, the sensors could detect the ball mount
and hitch ball assembly, depending on its size
and shape, giving a false indication that an
obstacle is behind the vehicle.
