Overview

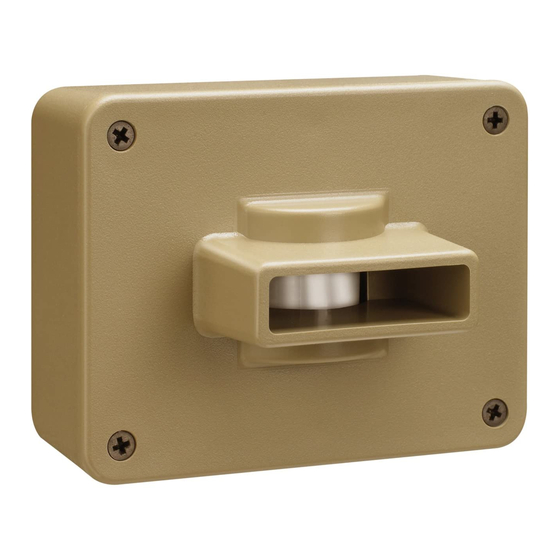

The Wireless Alert Sensor is a Passive Infra-Red Motion Sensor that detects movement of people and vehicles. Each sensor has its own unique
ID, for a secure radio link. The base station (not provided) can learn the signals of up to 8 sensors. The base station gives a single beep for the
fi rst sensor that is programmed, a double beep for the second, and so on. Additionally, multiple base stations can work with the same sensor to
sound in different places.
WARNING: This product can expose you to chemicals including lead, which are known to the State of California to cause cancer or birth
defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

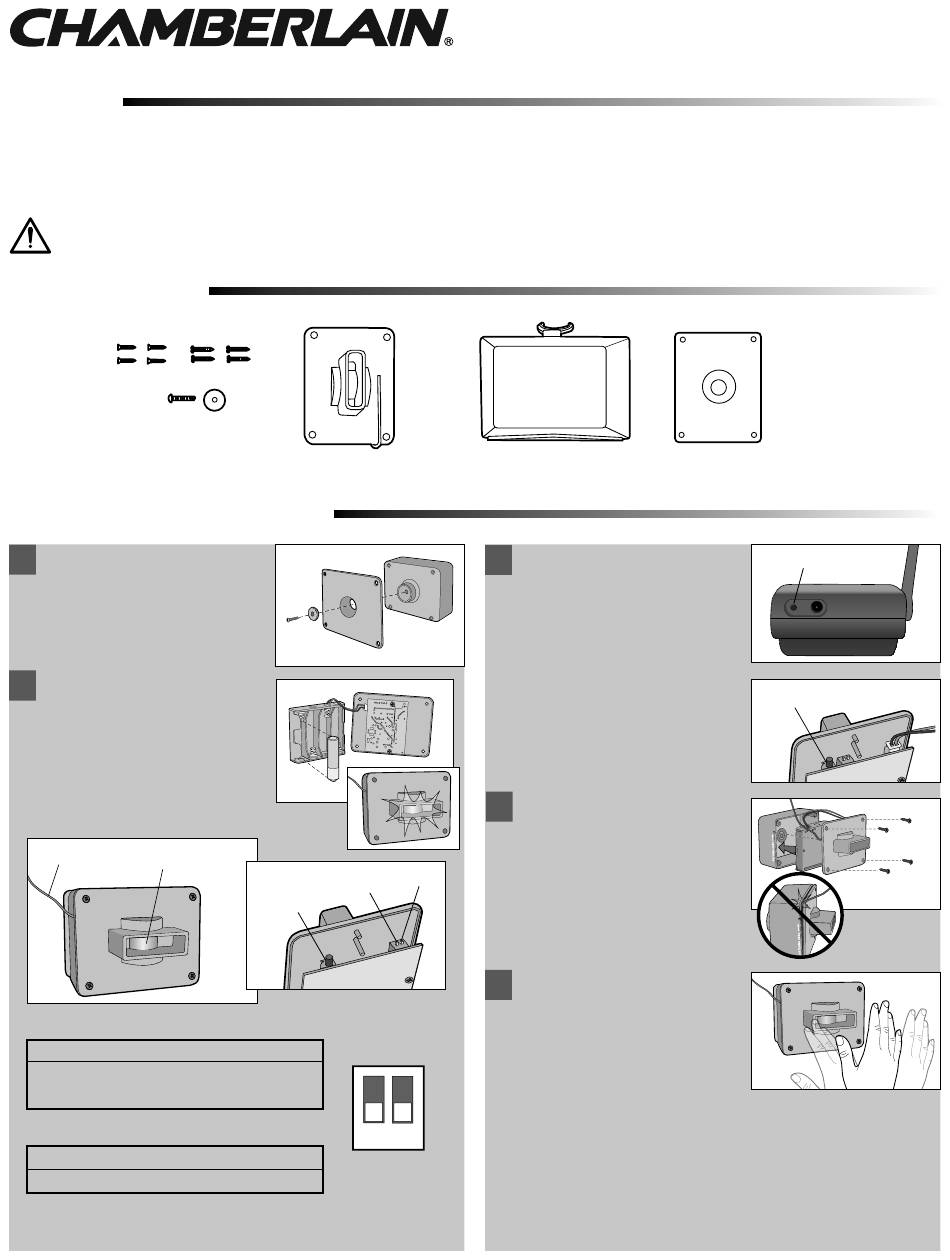

Carton Inventory
Swivel Bushing
Assembly and Programming
1
Attach Motion Sensor box to
mounting plate with large silver
screw. Tighten screw until
Motion Sensor stays in place
when repositioned.
2
Install 4 AA Alkaline batteries.
(Lithium batteries recommended
for colder environments.)
LED light will fl ash.
SWITCH SETTINGS
Motion Sensor
Antenna
SWITCH #1:
OFF 15 Feet (4.5 m) Detection Range
30 Feet (9.1 m) Detection Range
ON
(Default)
SWITCH #2:
OFF Low Sensitivity
ON High Sensitivity (Default)
NOTE: To avoid detection of small animals
move Switch #2 to OFF.
Motion Sensor
Switch #1 Switch #2
Learn
Button
OFF
1 2
ON
Sun/Rain Shield
3
A Ensure Base Station and
Motion Sensor are in close
proximity to each other. Press
and release Learn Button
on Base Station. Buzzer will
sound.
B Within 60 seconds, press the
Learn Button on the inside of
the Motion Sensor. LED light
will illuminate and Base Station
will buzz.
4
Insert battery pack facing away
from circuit board and fasten
cover with the smallest screws
(provided).
NOTE: Ensure the batteries do
not touch the circuit board and
the antenna and battery wires are
not pinched.
5
Test Motion Sensor by waving
hand in front of sensor. LED light
should fl ash and the Base Station
will buzz X number of times
indicating which sensor has been
activated.
1
WIRELESS MOTION ALERT
ADD-ON SENSOR
MODELS CWPIR AND CWPIRC
Mounting Plate
Learn Button
Learn Button
