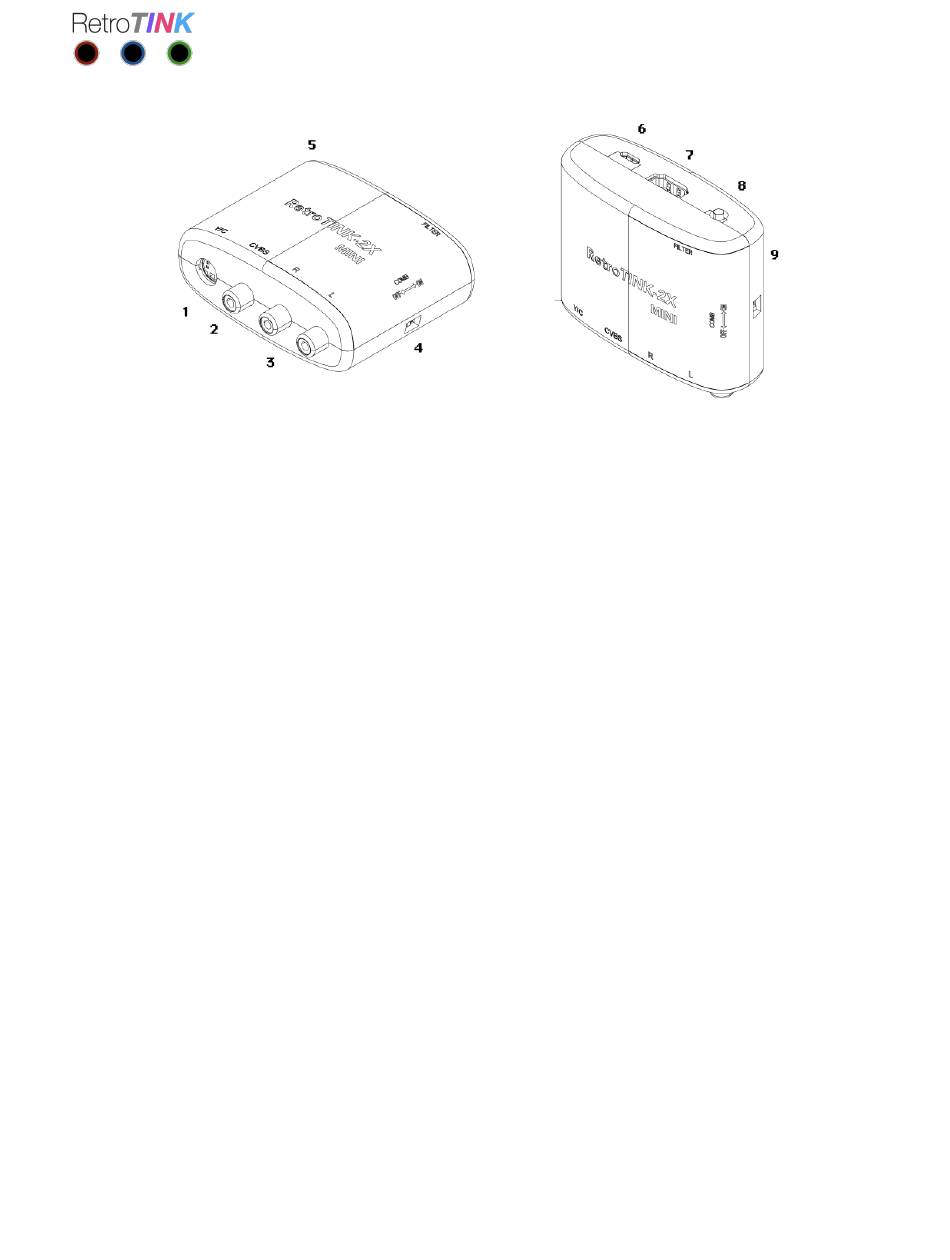

1. S-Video input.
2. Composite input.
3. Audio input.
4. COMB switch. Toggles between notch (Retro) and comb (Auto) filtering for composite
video. Auto also engages high frequency luma noise rejection for PAL S-Video.
5. Indicator LED:
• Flashing: No input detected.
• White: S-Video input.
• Yellow: Composite input.
6. MicroUSB power input. Connect to any microUSB power source capable of supplying
500 mA or more.
7. Digital Video output to your HDTV.
8. FILTER button. Cycles between normal and smoothed modes.
9. Indicator light for Smoothing Filter. Blue when smoothing filter is on.
