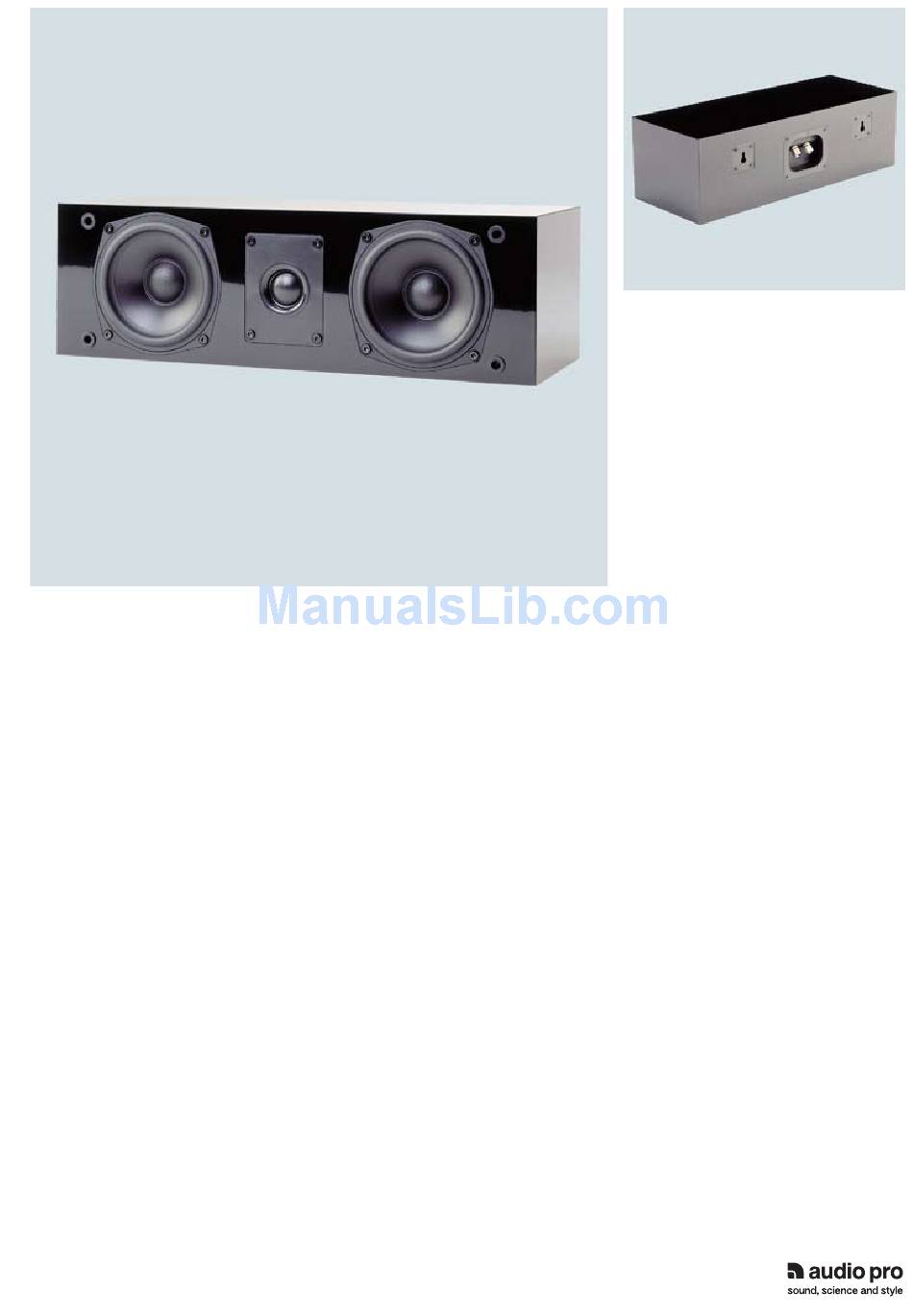

Image 21
The centerspeaker is probably the most important speaker
in home theater sound. It must reproduce voices and
sound effects clearly and with high fidelity. It should also
be voice-matched with the other speakers in the system.
Image 21, which is voice-matched with Image 11 and
Image 40, offers an amazing sound stage despite its
small format.
The two woofers and the soft dome tweeter are magneti-
cally shielded to avoid interference with your TV set.
A centerspeaker is normally placed under or on the TV set,
but with Image 21's built-in wall brackets, you can also
hang it from the wall.
Image 21
Type: Closed box
Tweeter: 1" soft dome, shielded
Woofer 1: 4 1/2", shielded
Woofer 2: 4 1/2", shielded
Frequency range: 60-20.000 Hz
Sensitivity (1W/1M): 88 dB
Impedance: 8 ohm
Crossover frequency: 3.600 Hz
Amplifier requirement: 10-100W
Dimensions (WxHxD mm): 400x124x155 mm
Color: Black high-gloss
