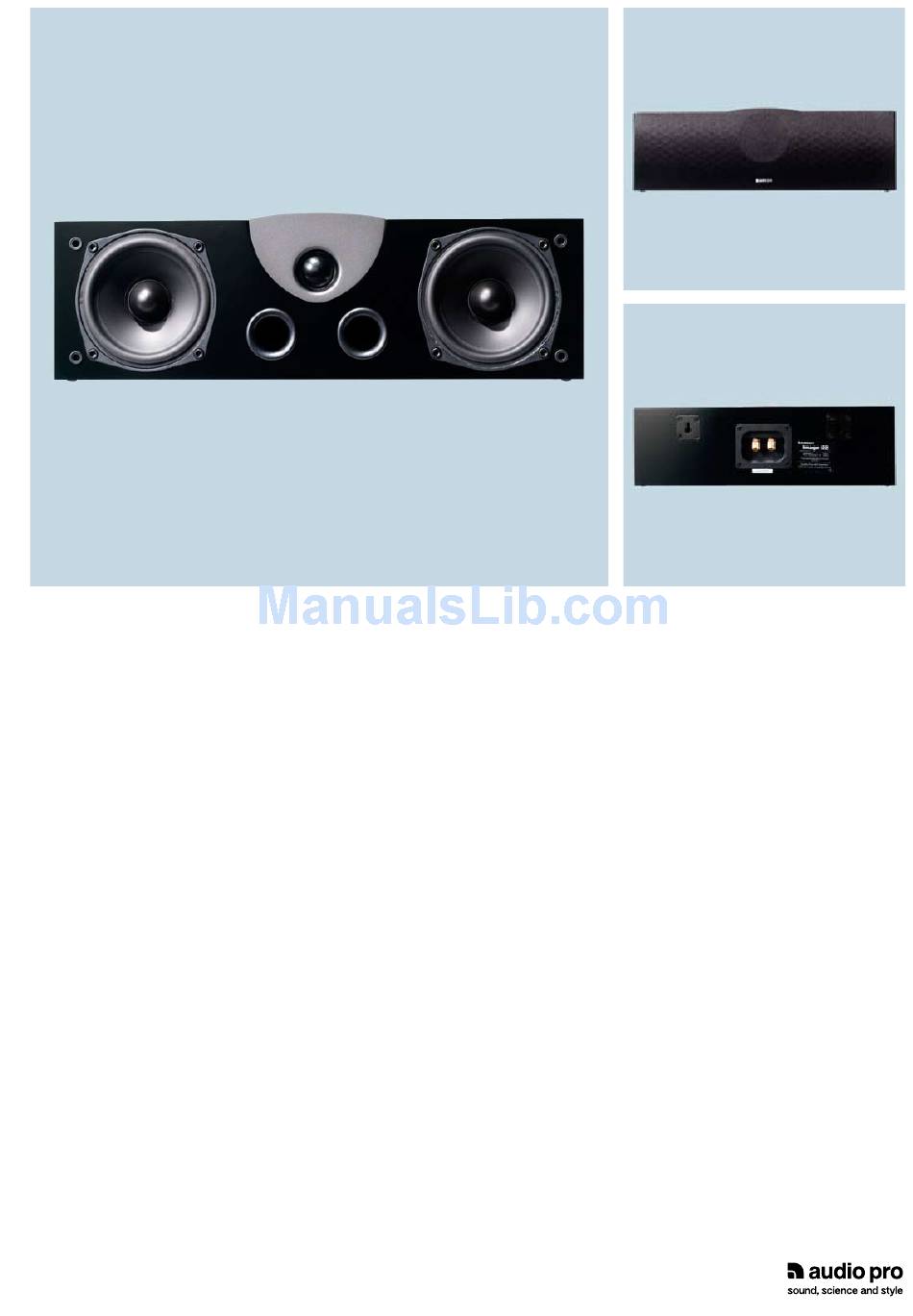

Image 22
Image 22 is a dedicated center speaker that offers an
amazingly large sound image despite its small format.
It reproduces voices and sound effects in a clear and
natural way.
A center loudspeaker should normally be placed above or
under the TV but, with its built-in wall brackets, the Image
22 can easily be hung on a wall.
All drivers are magnetically shielded to avoid distortion to
the TV screen.
Image 22 is equipped with the same set of drivers as
Image 12 and Image 44, and therefore offers perfect
voice-matching in a home theater equipped with these
speakers. Add the tiny subwoofer B1.28 and the sound
image from this small and elegant speaker pair will stretch
all the way from 27 - 25.000 Hz.
IMAGE 22
Type: Center speaker, 2-way, bass reflex
Tweeter: 1", soft dome, shielded
Midrange/Woofer: 2x4 1/2", shielded
Frequency range: 45-25.000 Hz
Sensitivity (1W/m): 88 dB
Impedance: 8 ohm
Crossover: 2.800 Hz
Amplifier requirement: 10-125W
Dimensions (WxHxD): 420x126x190
Weight: 7 kg
Connectors: Heavy duty binding posts
Cabinet: MDF
Finish: High-gloss laquer foil
Colors: Black or silver
Other: Voice-matched with Image 12 and Image 44
