Avanti Room

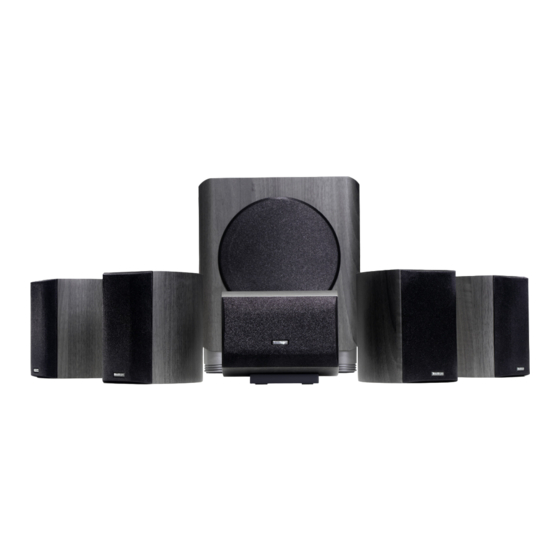

Avanti Room is the clear choice from the Avanti series for
home theater systems. You receive five Avanti A.1 units
with the 150 watt ace bass subwoofer SW-150. A.1 is a
bass reflex speaker that is easy to place anywhere in a
room. Put it on a bookshelf or a stand or mount it on the
wall using the wall bracket provided. SW-150 is a sub-
woofer with a specially made 6 1/2" long-throw bass. The
bass box can be angled through 180 degrees and has
both high and low level inputs.
AVANTI A.1
Type: Satellite, can also be used as a center speaker,
2-way, bass reflex
Tweeter: 1", soft dome, shielded
Midrange/Woofer: 3 1/2", shielded
Frequency range: 100-20.000 Hz
Sensitivity (1W/m): 87 dB
Impedance: 8 ohm
Crossover frequency: 6.000 Hz
Amplifier requirement: 10-100W
Dimensions (WxHxD): 110x150x160
Weight: 1,6 kg
Connectors: Heavy duty binding posts
Cabinet: MDF
Finish: Vinylfoil
Colors: Dark Italian Walnut and Italian Graphite Walnut
Speaker stand, wallbracket: Wallbracket included
Other: Voice-matched with A.2 and A.3
SUB SW-150
Type: Powered subwoofer with built-in ace-bass®
amplifier, bass reflex
Amplifier: 150 W rms
Woofer: 6 1/2" long-throw
Frequency range: 30-100 Hz
Lo-pass filter: 50-100 Hz, variable 24 dB/octave
Hi-pass filter: 100 Hz, 6 dB/octave
Dimensions (WxHxD): 270x326x372 mm
Weight: 11 kg
Connectors: Line and speaker level input, heavy duty
binding posts and RCA-input
Adjustments: Auto standby, variable level adjustment,
variable frequency adjustment 50-100 Hz, phase
adjustment 0-180°
Cabinet: MDF
Finish: Vinylfoil
Colors: Dark Italian Walnut and Italian Graphite Walnut
