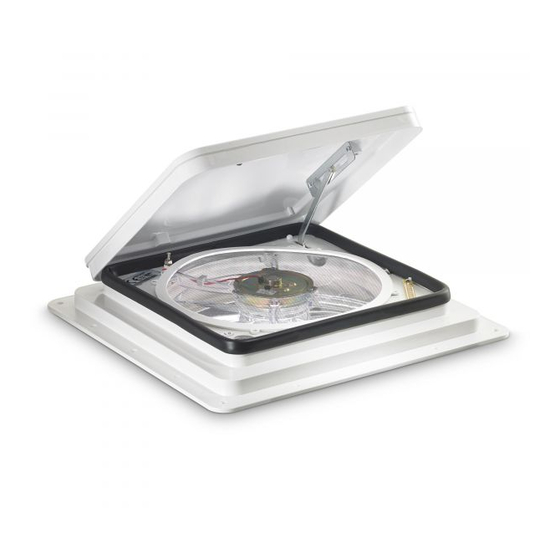

Fan-Tastic Vent 7350 Operation Manual

V E N T
Fan-Tastic Vent
P .O. B o x 1 6 2 7 E l k h a r t , I N 4 6 5 1 5
PHONE: 800-521-0298 FAX: 800-201-4973
INTERNET: http://www.fantasticvent.com
ENGLISH, FRANCAIS, (CANADA)
SAFETY INFORMA TION
F O R Y O U R SAFETY
R E A D Y ALL I N STRUCTI O NS B E F O R E OPERA TI N G F AN
R E F E R T O )0000( F O R MODEL NUMBER
SAFETY ALERT S Y M B O L S
Safety Symbol s alerting you to potential personal safety hazards.
Obey all safety messages following these symbol s .
W ARNING
avoid possible
injury or death
W ARNING ELECTROCUTI O N
• Disconnect power supply prior to installation.
R E C O M M E N D WIRE FOR POWER
SUPPL Y :
A minimum of 16-gauge stranded copper
must be used. Insulated connectors must
be used.
R O O F MOUNTING INSTRUCTIONS: OEM (ORIGINAL EQUIPMENT MANUF ACTURERS)
A F T E R M A R K E T
Gasket or Sealer is required between mounting flange bottom & top of roof. Additional
compatible sealant over screws & at flange where it meets roof. Clamp fans; use a double
bead of compatible sealant only between the mounting flange and roof (No putty tape,
butyl or gaskets to be used with Clamp Fans). For rubber roofs use E P D M compatible roof
sealant, e.g. Dicor 551 LSW or 502 LSW .
RECOMMEND SCREWS:
No. 8 self-tapping flat head - 3/4" to 1" in length. All 16 holes must be used for proper
seal . After ceiling fan has been mounted and wired, install interior garnish with screws
provided. Garnish may be trimmed for thinner roofs. For deeper than standard garnish
cal l Fa n-T astic Vent T oll Free. OEM Cl a mp fans require mounting screws and correct height
garnish pre-determined by O E M Customer and Fan-T astic Vent. T orque all screws equally.
D o not over tighten.
CAUTI O N
avoi d possible injury
and/or property damage
INST ALLA TION
WIRE C O L O R CODE:
Bl a ck - Positive or Fused
White - Negative or Ground
DOCUMENT PART NUMBER 8613-01
Us
Protected by U.S. Patents 7,731,574
]ntertek
4 0 0 4 7 / 8
F U S E : SYSTEM HAS BEEN FUSED BY F AN-T ASTIC VENT . REPLACEMENT V ALUE LABEL
O N F AN AT FUSE HOLDER. REPLACEMENT INSTRUCTIONS:
Locate the round black cap of the fuse holder (about the size of a dime) on the face of
the fan. Push up and quarter turn counter clockwise and pull down to expose the fuse.
Repl a ce the old fuse with a new one and push in the fuse holder. Secure with clockwise
rotation of the cap. R E P L A C E M E N T MUST BE S A M E T Y P E AND RA TING.
R E V E R S E SWITCH MOUNTED ON THE F AN:
Units equipped with a reverse switch in the fan motor and fan blade must be completely
stopped before reversing fan.
B U L B TYPE THERMOST A T INSTRUCTIONS:
N o additional external wiring.
N O T E :
A S A F E T Y SWI T CH HAS B E E N I N ST ALLED O N T H E UNIT , D O M E MUST BE O P E N E D
A P P R O X I M A T E L Y 3 I N CHES B E F O R E M O T O R WILL O P E R A T E . WHEN DOME IS SHUT
C O M P L E T E L Y , M O T O R WILL NOT O P E R A T E .
P E R M A N E N T M A G N E T M O T O R S P E R F O R M AS D E S I G N E D O N F I L T E R E D
O C C U R R E N T . UNFI L TERED D C C U R R E N T MAY C R E A T E I R RI T A TI N G NOI S E
F R O M F AN BLADE M O T O R S AND MA Y C A U S E CI R CUI T B O A R D S T O FAIL.
H O W T O USE YOUR F AN-T ASTIC VENT'
Cl o se all vents when using your Fan-T asti c Vents. Slightly open windows on shaded side
of coach afford the most comfortable ambient air, even on hot days. Remember, you
direct the airflow by opening a window. Always try to position yourself between an
open window and the fan for greatest airflow comfort.
Any installation or operating problems call Fan-T astic Vent toll free immediately, (800)
521-0298
AUT OMA TI C LIFT MOT ORS
T o manually open or cl o se the lid on your Fan-T asti c Vent®, grasp the black hand knob and
turn in the direction desired. DO N O T PULL D O W N O N THE KNOB! Doing so may damage
your fan and/or cause physical injury.
Previ o usFan-T asti c Vent Models used a two position (clutch) knob that required pulling
down to activate the manual feature. This new lift motor does not require any such
action.
Fan-Tastic Vent Fans
& Controllers
and/or 7,731,249
Other Patents Pending
