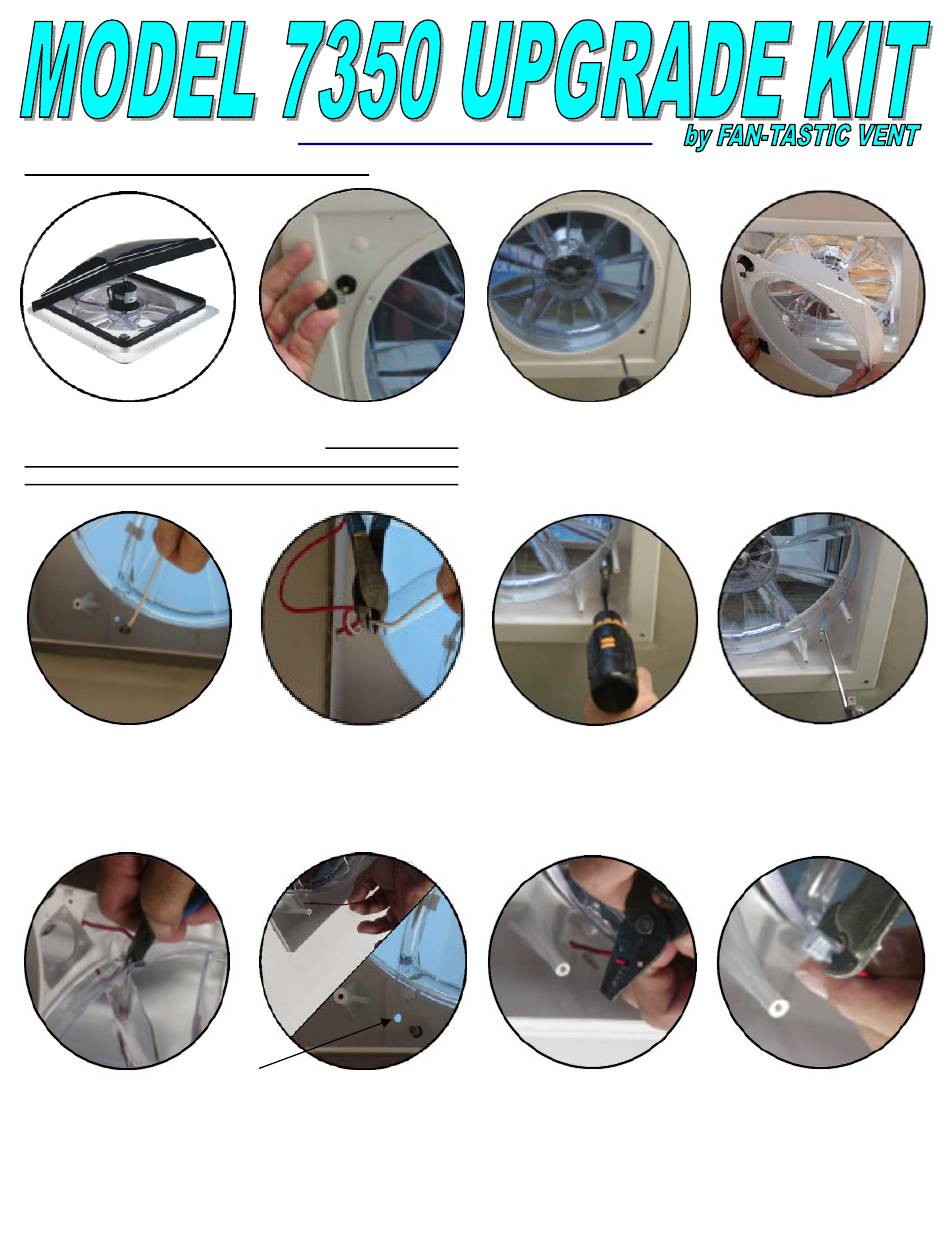

Fan-Tastic Vent 7350 Upgrade Kit Installation Instructions

Read Instructions Entirely Before Beginning
1

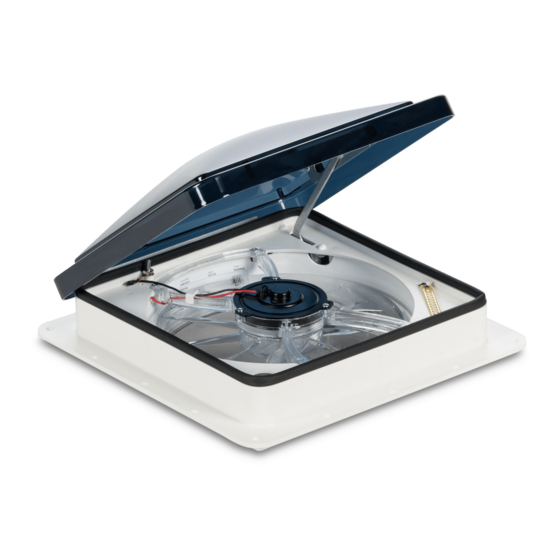

Open Dome 2/3rds
STEP 1 & 1b.
OPEN THE DOME 2/3rds. REMOVE THE FUSE
FROM BOTH CURRENT AND NEW SCREEN ASSEMBLY BY
PUSHING UP THE BLACK FUSE CAP 1/4 TURN LEFT AND PULL!
(SINCE '97 SOME CAPS REQUIRE A SLOTTED SCREWDRIVER)
3
Unplug Dome Switch
STEP 3 & 3b.
DISCONNECT POWER SUPPLY WIRES (BLACK &
WHITE or RED AND WHITE) ON DRIVER SIDE OF FAN BY UNPLUG-
GING OR CUTTING 2"-3" FROM STRAIN RELIEF KNOTS.
5
Cut the Clip Off (only)
STEP 5 & 5b.
(IF NOT ORIGINALLY EQUIPPED WITH A REVERSE SWITCH),
UNPLUG THE RED or BLUE WIRE FAN MOTOR LEAD FROM THE 3-
SPEED SWITCH. CUT THE CLIP OFF OF THE FAN MOTOR LEAD.
PULL THE WIRE OUT OF THE BASE FROM THE TOP SIDE.
LOCATE THE HOLE NEXT TO THE DOME SWITCH AND FEED THE
FAN MOTOR LEAD THROUGH TO THE INSIDE (5b).
INSTALLATION INSTRUCTIONS.
* NOTE: ALL ASSEMBLY SCREWS ARE STANDARD #2 PHILLIPS
1b
Remove the Fuse
3b
Cut Dome Switch Wire
5b
Feed the Lead Back Up Thru Base
2
Remove 5 Screws
STEP 2 & 2b.
REMOVE THE LIFT KNOB (MANUAL) OR LIFT
MOTOR (AUTO). NOW REMOVE 3 TO 5 SCREWS FROM THE FACE
OF THE SCREEN ASSEMBLY (ASM) (removal of the screen is not
necessary) .
.
4
Unscrew the Lift-Arm ASM
STEP 4 & 4b.
(
If you have a Manual Fan), REMOVE 2 SCREWS FROM
THE LIFT ARM ASM BASE, UNHOOK THE LIFT-ARM FROM THE DOME SLIDE
AND PULL THROUGH THE SLOT IN THE BASE.
THROUGH SLOT IN BASE AND
ARM ASM TO THE BASE WITH TWO #10 SCREWS.
5c
Strip the End
STEP 5c & 5d.
STRIP OFF INSULATION ON THE FAN MOTOR
LEAD WIRE APPROX. 3/8" FROM THE END AND PUT THE BLUE
FEMALE CLIP (provided) ON THE BARE END AND CRIMP IT
SECURELY. CONNECT THE FAN MOTOR LEAD (RED or BLUE)
WIRE TO THE RED AND BLUE STRIPED WIRE ON YOUR NEW
UPGRADED SCREEN ASSEMBLY.
1
2b
Drop Control Panel
4b
Unhook Lift-Arm and Remove
PUT NEW LIFT-ARM
HOOK TO SLIDE
ON DOME. SECURE LIFT-
5d
Crimp Blue Female Clip
