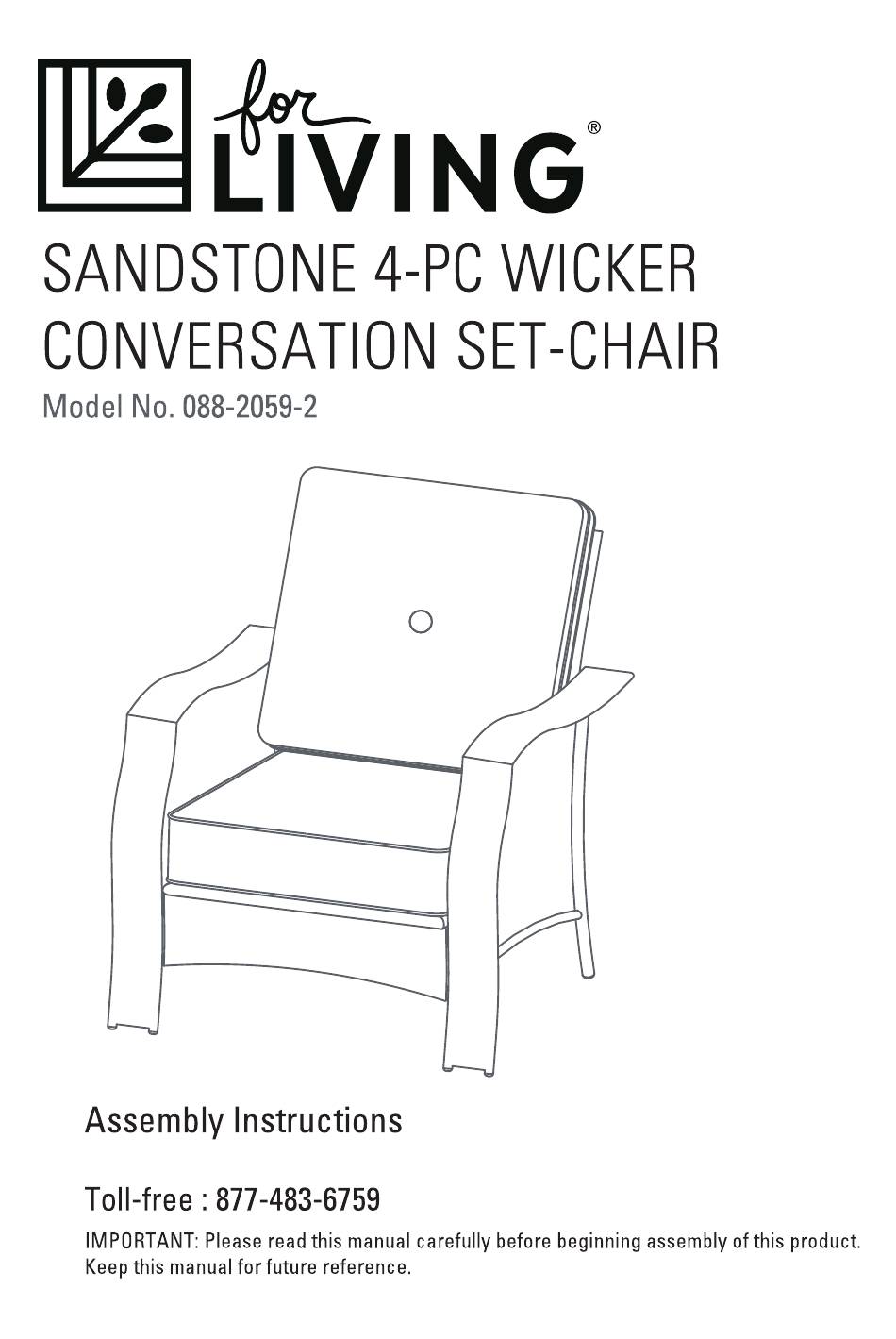

Summary of Contents for for Living SANDSTONE 088-2059-2
Page 6
Step 1 Requires C, D, BB, CC Place the back frame (D) on a soft flat surface. Line up the bolt holes on the back frame (D) with the corresponding bolt holes on the seat frame (C). Insert M6x40 combination bolts and washers (BB) and lightly tighten the bolts using the hex key (CC). Do not completely tighten until all assembly is completed.
Page 7
Step 3 Requires B, C, D, AA, BB, CC Repeat the same step for the left arm (B). NOTE: Do not completely tighten. Step 4 Requires E, F, CC Ensure all bolts are securely tightened using the hex key (CC). Turn the chair the correct way up.
Page 15
° de modele : 088-2059-2 Etape 1 Requiert C, D, BB, CC Placez !'armature de dossier (D) sur une surface plane et molle. Alignez les trous de boulon de !'armature de dossier (D) avec les trous de boulon correspondants de !'arma ture de siege (C).
Page 16
Etape 3 Requiert B, C, D, AA, BB, CC Repetez la meme etape pour l'accoudoir gauche (B). REMARQUE : Ne serrez pas complètement. Etape 4 Requiert E, F, CC Assurez-vous que taus les boulons sont completement serres l'aide de la cle hexagonale (CC).
Page 24
Step 1 Requires : C, D, BB, CC Place the back frame (D) on a soft flat surface. Line up the bolt holes on the back frame (D) with the corresponding bolt holes on the seat frame (C). Insert M6x40 combination bolts and washers (BB) and lightly tighten the bolts using the hex key (CC).
Page 25
Step 3 Requires : B, C, D, AA, BB, CC Repeat the same step for the left arm (B). NOTE: Do not completely tighten. Step 4 Requires: E, F, CC Ensure all bolts are securely tightened using the hex key (CC). Turn the chair the correct way up.
Page 33
° de modele : 088-2059-2 Etape 1 C, D, BB, CC Requiert : Placez !'armature de dossier (D) sur une surface plane et molle. Alignez les trous de boulon de !'armature de dossier (D) avec les trous de boulon correspondants de !'armature de siege (C). lnserez les boulons mixtes M6x40 avec rondelles (AA) et serrez legerement les boulons l'aide de la cle hexagonale (CC).
Page 34
Etape 3 Requiert : B, C, D, AA, BB, CC Repetez la meme etape pour l'accoudoir gauche (B). REMARQUE : Ne serrez pas complètement. Etape 4 Requiert: E, F, CC Assurez-vous que tous les boulons sont completement serres l'aide de la cle hexagonale (CC).
Page 42
Step 1 Requires: A, B, AA, BB Place the table rim (A) on a soft flat surface. Line up the bolt holes on the table rim (A) with the corresponding bolt holes on the table legs (B). Insert M6x15 bolt with washer (AA) and lightly tighten the bolts using the hex key (BB).
Page 51
° de modele : 088-2059-2 Etape 1 Requiert: A, B, AA, BB Placez le cadre de table (A) sur une surface plane molle. Alignez les trous de boulon du cadre de table (A) avec les trous de boulon correspondants des pieds de table (B).
