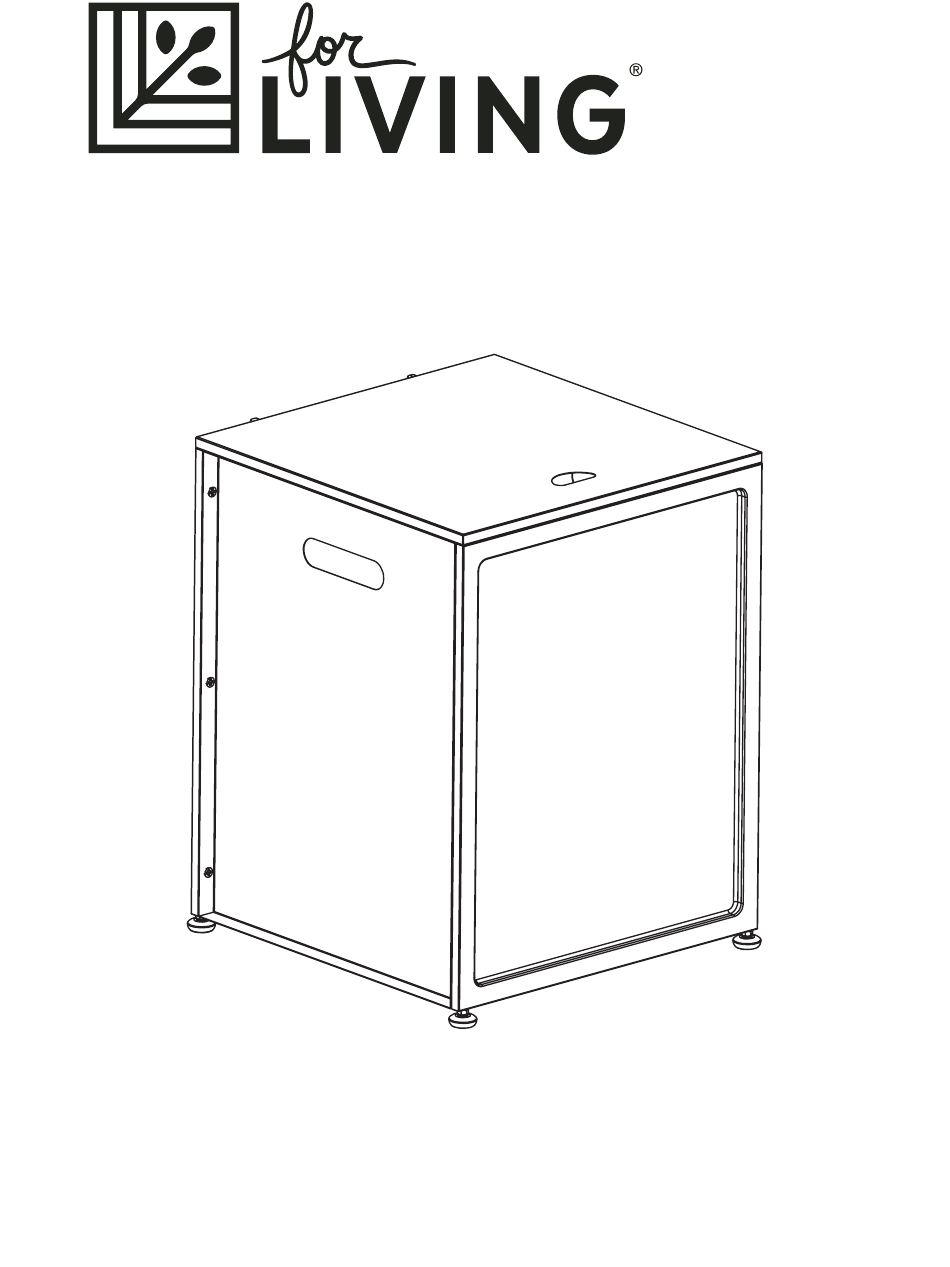

- Page 1 Tank hideaway ® Model No. 085-1503-6 Assembly Instructions Toll-free: 1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference.
- Page 2 Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8 | Made in China...
-
Page 3: Important Safety Instructions
Important Safety Instructions Parts List Assembly Cleaning and Maintenance Technical Specifications Warranty Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the tank hideaway ® • MAXIMUM WEIGHT CAPACITY: This item can withstand an additional weight of 30 lb (13.6 kg). •... - Page 4 Model No. 085-1503-6 Front panel - 1 Back panel - 1 Side panel - 2 Top panel - 1 Stand - 1 Screw M5x10 - 16 Shown at actual size Screw M6x30 - 2 Shown at actual size Feet - 4 Shown at actual size...
- Page 5 Let us help you! DO NOT RETURN YOUR PRODUCT TO THE STORE. CALL US FIRST! 1-877-483-6759 If you have questions regarding your product, require warranty assistance, or have damaged or missing parts, please call our customer service toll-free helpline. Contact us for assistance; we’re here to help. IMPORTANT: Please read and understand this manual before any assembly.
- Page 6 Model No. 085-1503-6 Step 1 Requires 1, 2, C Attach the feet C to the bottom of the front panel 1 and the back panel 2. Shown at actual size Step 2 Requires 1, 2, 6, A Attach front panel 1 and back panel 2 to the stand 5 using four M5 x 10 screws A. Shown at actual size...
- Page 7 Step 3 Requires 1, 2, 3, A Attach the two side panels 3 to the front panel 1 and the back panel 2 using twelve M5 x 10 mm screws A. Shown at actual size Step 4 Requires 2, 5, B Attach top panel 5 to the back panel 2 using two M6 x 30 mm screws B.
- Page 8 Model No. 085-1503-6 Step 5 Place assembled item in desired location, adjusting feet C as needed to ensure it is level. Then, place 20 lb (9 kg) propane gas tank (not included) on top of stand 5. Turn the preassembled wing screw on the stand 6 clockwise to secure the gas propane tank.
- Page 9 Step 7 Connect the regulator (from your gas appliance) to the propane gas tank. Warning! • Open the cover to connect or disconnect your regulator and to open or close the propane gas tank valve. Make sure the hose is not pressed underneath the tank hideaway ®...
- Page 10 Model No. 085-1503-6 Caution! • Check all screws and nuts periodically for tightness, tightening them again as required. • Store the item in a cool, dry place away from direct sunlight. • During harsh or wet weather conditions, store inside to protect integrity of finish. •...
- Page 11 This For Living product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase. This product is not guaranteed against wear...
