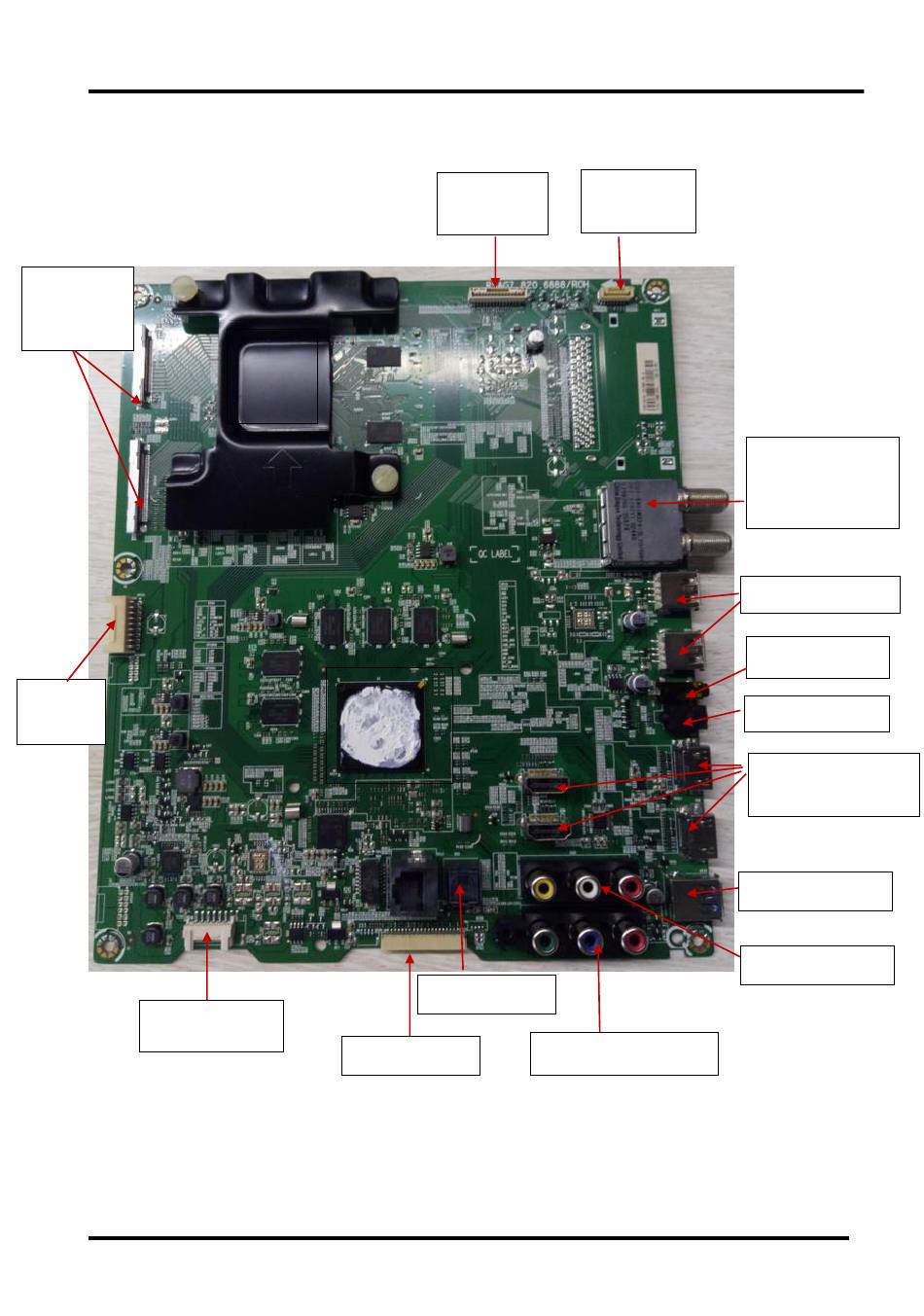

2.1.3 6888 main board layout
XP2002,XP2003
VBI output
Xp24 power
input
input
Xp3 Speaker output
FRC IC
NT72334
Chassis
MTK5658MCEJ
Xp18 IR/Key/WIFI
Xp18 IR/Key/WIFI
XP2004
XP2005 local
debug
dimming
output
XS3 SPDIF OUT
XS6 component video input
- 14 -
FRC
U7
CDT-940IM324-S
L20\ROH
XS13， XS14 USB2.0
XS1 Service
XS2Audio output
XS7,XS8,XS9,XS10
HDMI
XS15 USB3.0
XS5 AV/Audio
input
