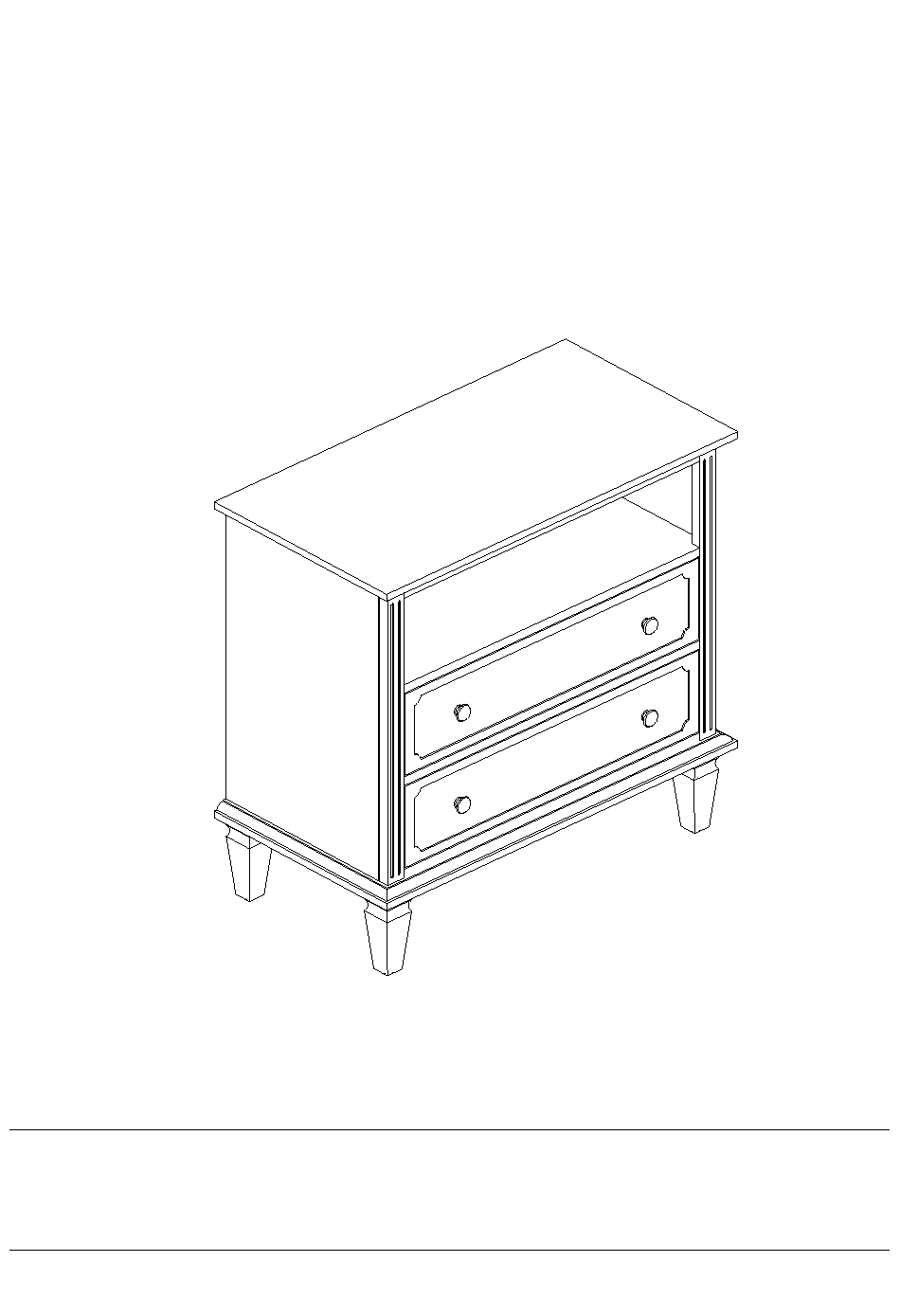

- Page 1 NOTE: This brochure contains IMPORTANT safty info. Please read and keep for future reference. 01/22...
- Page 2 MAINTAINANCE AND WARNING 1.Keep furniture away from heat sources. 2.Do not clean furniture with harsh cleaner or polishes.Do not use detergents,solvents,abrasives,spray packs or leather cleaner. Use non-color mild soa with warm water to clean spills(Mix 1:10 soap to water). 3.Do not place furniture under direct sunlight,material will possibly fade over time.
-
Page 3: Explosive View
EXPLOSIVE VIEW 2PERSONENS 03/22... -
Page 4: Parts List
PARTS LIST 1 04/22... -
Page 5: Hardware List
HARDWARE LIST Ø3*15MM Ø4*22MM Ø4*25MM Ø3*12MM Ø6*40MM Ø4*39MM Ø3*20MM TOOL LIST HARDWARE SPARE LIST Ø3*15MM Ø6*40MM Ø4*25MM 05/22... - Page 6 ASSEMBLY INSTRUCTIONS STEP-1 1. install leg J on of bottom panel B, ensure the corresponding holes are aligned and fix with screw #7, then tighten the screw with an Allen key #13. Ø6*40MM 06/22...
- Page 7 ASSEMBLY INSTRUCTIONS STEP-2 1.Insert part (F) into part (E),make sure all holes align aligned and fix then screwdriver with screw #4 tighten the screw with an #14. Ø4*25MM 07/22...
- Page 8 ASSEMBLY INSTRUCTIONS STEP-3 Insert side panel (E ＆F& G) into panel (D),make sure all holes aligned and then tighten it with allen key #13 as picture show. 08/22...
- Page 9 ASSEMBLY INSTRUCTIONS STEP-4 1.Insert side panel (C) into the corresponding hole of preassembled step 3，make sure all holes aligned and use allen key #13 to tighten it as picture show. 09/22...
- Page 10 ASSEMBLY INSTRUCTIONS STEP-5 1.Insert preassembled step 4 into the corresponding hole of bottom panel (B) ， make sure all holes aligned and use allen key #13 to tighten it as picture show. 10/22...
- Page 12 ASSEMBLY INSTRUCTIONS STEP-7 1.insert part (H) into the preassembled step 6,make sure all holes aligned and use screw#4 to attach them ， tighten screw #4 with screwdriver#14. Ø4*25MM 12/22...
- Page 13 ASSEMBLY INSTRUCTIONS STEP-8 1.insert part #5 into the preassembled step 7,make sure all holes aligned and use screw #2 to attach them ， tighten screw #2with screwdriver#14. Ø3*12MM 13/22...
- Page 14 ASSEMBLY INSTRUCTIONS STEP-9 1.Insert the top plate (A) into the corresponding holes in the pre-assembly step 8, make sure all the holes line up and tighten it with a size 13 Allen key as shown in the picture. 14/22...
- Page 16 ASSEMBLY INSTRUCTIONS STEP-11 1.Connect part (L&M) to part K using screw #4 and tighten it with screwdriver #14. 2.slide in the part (N) into the groove in part (L&M). make sure they are also in groove in part (K). Ø4*25MM 16/22...
- Page 17 ASSEMBLY INSTRUCTIONS STEP-12 1.Connect the (O) and (L&M) using screw #4 , and tighten it with screwdriver #14. 2.Install handle #3 to panel (O) using bolt #1 and tighten it with screwdriver #14. Ø4*22MM Ø4*25MM 17/22...
- Page 18 ASSEMBLY INSTRUCTIONS STEP-13 Attention ： When installing the drawer,slide the steel ball slide rail of side panel to the most front as picture show. Female slider Male slider Schematic diagram of slide rail disassembly 18/22...
- Page 19 ASSEMBLY INSTRUCTIONS STEP-14 Use screw #12 to attach plastic bracket #9 to panel (A),make sure all holes aligned and tighten screw #12 with screwdriver Ø3*20MM 19/22...
- Page 20 ASSEMBLY INSTRUCTIONS STEP-15 Ø4*39MM 1. Mark the position on the wall, that corresponds to the location of bracket #9 on the panel A; Drill and insert the expandable screw #8 by hammer. 2. Assemble the bracket #9 to the wall. Align the hole in the bracket #9 with the expandable screw #8 ,use screw #11 to attach it , tighten screw #11 with screwdriver #14.
-
Page 22: Warranty
WARRANTY 1.We strive to offer high-quality products,and we also try our best to satisfy each and every customer that orders from us with product or service as needed. 2.We provide 30 days warranty starting from the time you receive the item.Each customer must provide a record of their order such as the order number,or item receipt for any items that are out of the warranty period you may also still receive.
