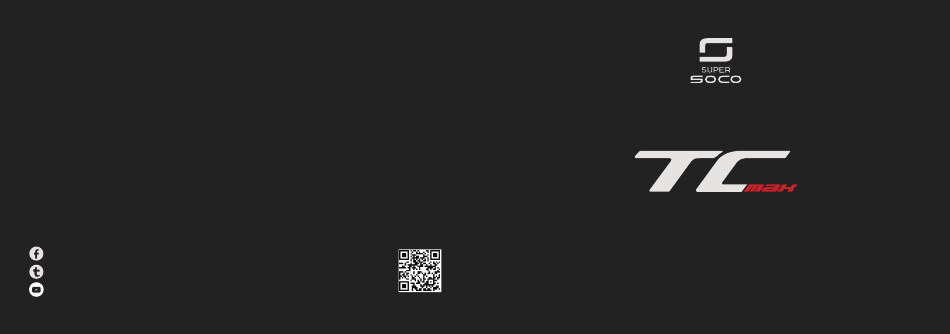

- Page 1 Follow us SUPER SOCO World SUPER SOCO World USER MANUAL SUPER SOCO World Scan QR code to www.supersoco.com download e-user manual...
- Page 2 ,wire harness and maximum speed. Please contact the SUPER SOCO Customer Service Center 400-021-2008 if you have any questions about this bike. We are at our service at any time. Wish you safe and pleasant riding experience!
- Page 3 SAFETY INSTRUCTIONS To ensure the safety of you and others, please make sure to observe the following matters: Please do not lend your vehicle to someone who can not control it to avoid injury Minors under 16 years old is not allowed to ride our bike on the road. Please ride your bike in the bicycle lane, do not exceed the maximum speed (Keep right on the road if there is no bicycle lane) Do not ride after you take medications which may effect your riding ability, drink alcohol or when you feel physically ...
- Page 4 SAFETY INSTRUCTIONS Check before riding. In case of any abnormality, please timely repair or go to official dealer’s service center. a. Check the power circuit, lighting circuit statues etc. b. Check whether the front and rear brakes work properly c. Check the handlebar and the front and rear wheels fixing d.
- Page 5 QUICK START PARTS INSPECTION Quick Start Mirrrors User manual Keys Spanner for mirrors Charger...
- Page 6 QUICK START INSTALL BATTERY PACK Open storage,take out Put battery package in. Connect power plug. Switch of circuit protector, cover. put cover back and close storage.
- Page 7 QUICK START IGNITE TC-MAX Press ‘UNLOCK’ on remote Put helmet on. Get on TC-MAX, kick side control, “POWER” button on. stand out. Press ‘Power’ , power on. Press ‘Parking’ button, Turn accelerator gently, unpacking TC-MAX, TC-MAX run. parking symbol off.
- Page 8 IOS system:APP only supports Apple ISO 9.0 system and above. Android system: APP only supports Android 4.4 system and above. Download and install the SUPER SOCO APP by QR code in this manual or key box. SOCO APP...
- Page 9 CONTENTS Description of Components and Parts Operation guide Riding guider Battery use instruction App instruction Maintenance FAQ & Trouble shooting...
- Page 10 DESCRIPTION OF COMPONENTS AND PARTS SCHEMATIC DIAGRAM OF COMPONENTS AND PARTS SIDE VIEW TOP VIEW Rear mirror Storage box Front brake Brake cylinder lever Accelerator Right-handlebar switch assy Speedometer assy Headlamp Battery Winker compartment Tall lamp Motor Saddle Electronic side stand FOC vector controller Rear brake Brake disc...
- Page 11 DESCRIPTION OF COMPONENTS AND PARTS DIAGRAM OF SPEEDOMETER Speed Controller temperature Temperature & distance Total mileage Display current speed Distance per charge/ trip distance/ Display the temperature under Display the total mileage rotating speed, ambient temperature current operating conditions Power display bar Battery percentage display Gear Display Display current battery power...
- Page 12 DESCRIPTION OF COMPONENTS AND PARTS DIAGRAM OF SPEEDOMETER Data connecting NORMAL Mode ECO Mode Charging Battery error High beam indicator Prompt fault code Parking Light Winker indicator light on M bottom instruction Displacement switching Range/Temperature Change between KM/Mile and KM/P & MPH In normal mode，press the switch for one second, turned into In normal mode, press it longer than 8 seconds, then release.
- Page 13 OPERATION GUIDE LEFT SWITCH High/low beam switch Winker switch Right switch Up position, high beam on; Turn to left, left winker on; Press, horn on; release, horn off. Down position, low beam on. Turn to right, right winker on.
- Page 14 RIGHT SWITCH Mode switch Front Light switch Parking switch Up position, front light on; Down TC-MAX is set with 3 modes: Press,light on, TC-MAX at parking position, front light automatically on. 1: ECO mode 2: NORMAL mode 3: position; (Front...
- Page 15 OPERATION GUIDE REMOTO CONTROL TC-MAX use second generation smart remote control, within 50 meter radius, press the button, can lock or unlock your TC-MAX. F.POWER D.LOCK After unlocking TC-MAX via remote control, press the “POWER”, power on, press again, LOCK, when TC-MAX in resting power off.
- Page 16 OPERATION GUIDE g.HANDLEBAR LOCK TC-MAX in parking position, turn handlebar to the extreme left position, put key in handlebar lock, and turn the key to right position, handlebar locked. Put the key in handlebar lock, turn the key to left position, handlebar unlocked.
- Page 17 Kill switch, protect power, when current over than set range cause by abnormal situation or short circuit, kill switch will stop the connection between battery and TC-MAX automatically, for safety reason. TIPS: For your own safety, please put kill switch at “OFF” position: A.
- Page 18 Whether the mirrors are clean and adjust them to the appropriate angle. Whether the brake oil is enough, whether the brake lever and brake system work properly or not. Any exceptions or operational doubts, please contact Super SOCO official dealer’s service center.
- Page 19 RIDING GUIDE b. POWER ON Press “UNLOCK” on remote Put on helmet. Riding TC, kick out side stand. control, “POWER” continuously Press “POWER”, power on. Press ‘Parking’ button, Turn throttle gently, TC-MAX unpacking TC-MAX, parking symbol off.
- Page 20 TC-MAX need to power on under steady standing status. In case any unusual situation, please move the bike to side of the road, in case any dangerous,please don’t restart the bike when it still running or in the middle of the road.
- Page 21 BATTERY USE INSTRUCTION a.CHARGING ON-BOARD Connect the charger to TC-MAX charging port. Connect the charger with power supply, during normal charging, red light keeps on. When fully charged, green light keeps on. Battery Charging Display Charging: Red light on. Full Charged: Green light on.
- Page 22 BATTERY USE INSTRUCTION b.External charging Open storage, switch off kill switch, take out storage cover. Disconnect the power plug. Put key in battery lock, turn to right, then can take out the battery pack from bike. Connect charger with battery, then connect charger with power supply, charger working, red light keeps on. TIPS：...
- Page 23 BATTERY USE INSTRUCTION c.Storage、maintenance、transport In case long time no use battery, please charge it till 50% (in case battery is empty, charge the battery pack 5 hours is enough). Disconnect the battery from bike when storing them. Store in dry ventilated place, at least charge 4 hours each 2 months.
- Page 24 The mobile community can be turned on and interpersonal communication can be realized in a new way. The functionality of the SUPER SOCO APP might be updated, difference will be happened due to different model and APP update. Please refer to the latest version.
- Page 25 TC-MAX. DAILY CLEAN AND MAINTENANCE The new bike must do the first inspection and maintenance in the official SUPER SOCO Service Center when it reaches 1,000 km or two months (whichever comes first).
- Page 26 Battery aging or normal scrap Change battery Battery cannot be charged Poor contact of charger plug Check whether the battery plug is at right position or not Used wrong charger Use SUPER SOCO charger Battery aging or normal scrap Change battery...
- Page 27 FAQ & TROUBLE SHOOTING Error Causes Solutions Error 99 on speedometer Controller communication error Please contact after sales service or dealeraler Error 98 on speedometer Controller stop working(Possible over Please stop riding and wait for a while then restart or current,motor blocking,under voltage,over contact after sales service or dealer temperature)
- Page 28 FAQ & TROUBLE SHOOTING Error Causes Solutions Error 90 on speedometer Battery discharging over current error Please stop riding if keep showing and contact after sales service or dealer Error 89 on speedometer Battery charging low temperature error Please move the bike to warm indoor place and wait for a while Error 88 on speedometer Battery discharging low temperature...
- Page 29 FAQ & TROUBLE SHOOTING b.BELT WEAR ANALYSIS Error Causes Solutions In the case of internal tooth crack(in the shape of hair): Running under supervision; In the case of out tooth crack: Replace the belt; In the case of missing tooth: Replace the belt In the case of blurred core edge: Running under supervision;...
- Page 30 FAQ & TROUBLE SHOOTING c.BATTERY FAULT REMOVAL Battery Status Issues Causes Solution Before using Battery runs out, unable to Battery no power Please charge the battery activate the bike In Operation In battery low power mode. Battery runs out, low-voltage Please charge the battery Battery below 10% ,bike protection...
- Page 31 FAQ & TROUBLE SHOOTING Battery Status Issues Causes Solution Storage Press “Start” , no power The battery is stored too long time, Please charge the battery. If it is battery runs out not possible to charge,please contact after sales service or dealer In Charge Display 89 error code Charging at low temperature...
- Page 32 CHECK LIST RANGE 1000 3000 6000 9000 12000 15000 18000 21000 24000 Torque（N·m） Brake fluid" Tire pressure and wear" Brake shoe wear degree before and after" Before and after the disc brake wear" Front axle nut fastening" Tighten the rear flat fork nut" Rear wheel axel nut Upper:22 Front shock bolt fastening...
- Page 33 SOCO wish you a happy voyage Bind APP Download APP 请粘贴 二维码...
