Amisco 50562 Quick Start Manual

Amisco 50562 Quick Start Manual

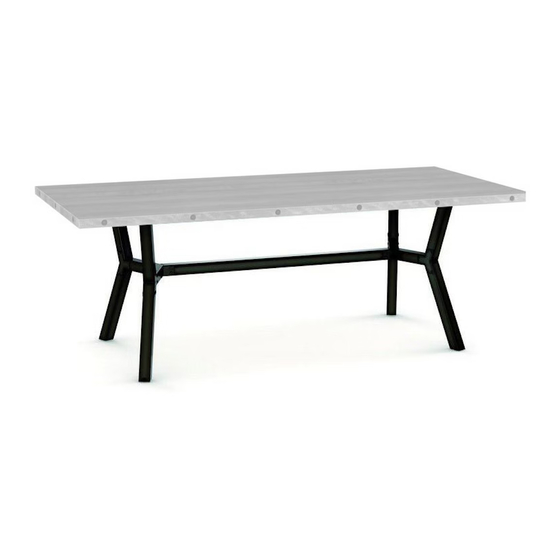

Table base (top not included)

Advertisement

M656480200 / Revision: 1, 17-12-2015 G.L.
TABLE BASE (top not included)
BASE DE TABLE (dessus non-inclus)
50562 / 50567
Dealer or installer: Leave all documents to the consumer.

IMPORTANT

Détaillant ou installateur: Laissez tous les documents au consommateur.
Consumer: Keep this document with your proof of purchase for reference.
Consommateur: Conservez ce document avec votre preuve d'achat pour référence.
Do not
contact or return
your product to
the store
Contact us within 30 days from your
purchase date. Monday to Friday, from
8:30 a.m. to 12 p.m., 1 p.m. to 4:30 p.m.
(Eastern standard time). Keep handy
your proof of purchase and the Amisco
product number when calling.
PARTS LIST / LISTE DES PIÈCES
ITEM
DESCRIPTION
Leg
1
Patte
Crossbar
2
Traverse
Plate
3
Plaque
Hardware bag
4
Sac de quincaillerie
TWO (2) PEOPLE ARE REQUIRED TO ASSEMBLE THIS
PRODUCT

LIST OF TOOLS REQUIRED:

- A phillips screwdriver.
- An allen key 5/32" (included).
- A mesuring tape or ruler.
IMPORTANT: In order to prevent any damage to
this product, DO NOT USE ANY POWER TOOL to
assemble it.Assemble this product by hand.
Thank you for choosing an Amisco product
Merci d'avoir choisi un produit Amisco
Problems, assembly videos, warranty, product care or
other information?
www.amisco.com
1 800 361-6360
Problèmes, vidéos d'assemblage, garantie, conseils
d'entretien ou autre information?
Amisco product number/Numéro du produit Amisco
QTY
2
1
4
1
Contactez-nous dans les 30 jours suivant
votre achat. Du lundi au vendredi, de 8h30
à 12h00, 13h00 à 16h30 (heure de l'Est). Ayez
sous la main votre preuve d'achat et le nu-
méro de produit Amisco au moment d'ap-
peler.
HARDWARE LIST / LISTE DE LA QUINCAILLERIE
ITEM
Bolt
A
Boulon
Wood screw
B
Vis à bois
Swivel glide
C
Glisseur pivotant
DEUX (2) PERSONNES SONT REQUISES POUR ASSEM-
BLER CE PRODUIT
LISTE DES OUTILS NÉCESSAIRES:
- Un tournevis étoile.
- Une clé allen 5/32" (incluse).
- Un ruban à mesurer ou règle.
IMPORTANT: Afin de prévenir tout dommage à ce produit,
NE PAS UTILISER D' OUTILS ÉLECTRIQUES pour son
assemblage. Assembler ce produit manuellement.
Ne contactez
pas le magasin,
ne retournez pas
votre produit
DESCRIPTION
QTY
16
20 MM 1/4-20nc
16
3/4" #10
4
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 50562 and is the answer not in the manual?

Questions and answers

Summary of Contents for Amisco 50562

  • Page 1 M656480200 / Revision: 1, 17-12-2015 G.L. TABLE BASE (top not included) BASE DE TABLE (dessus non-inclus) 50562 / 50567 Thank you for choosing an Amisco product Merci d’avoir choisi un produit Amisco Dealer or installer: Leave all documents to the consumer. IMPORTANT Détaillant ou installateur: Laissez tous les documents au consommateur.
  • Page 2 1) Screw on glides C under legs 1 . In order to protect certain floor coverings, we suggest you to use self-adhesive felts under legs. Visser les glisseurs C sous les pattes 1 . Afin de protéger certains revêtement de plancher, nous suggérons d’utiliser des feutres autocollants sous les pattes.
