INSTRUCTIONS
© 2019, Speedway Motors, Inc.
350-400
Unser Rear Suspension
62-67 Chevy Nova
350003.1
350003.2
350400.1
350021.1
350009
350029.2
65579031-25.5
65579031-30
350800.4
350029
350402

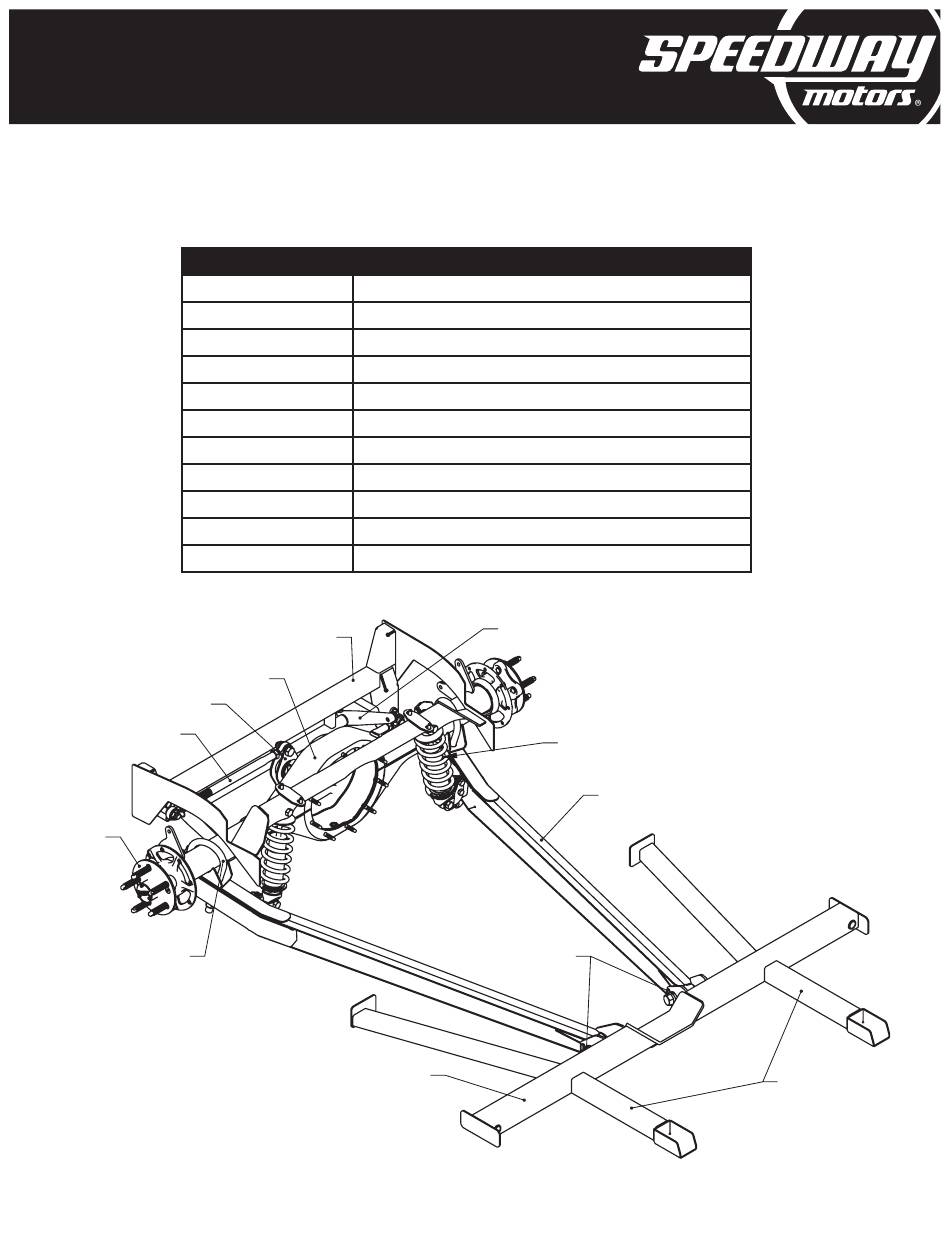

REAR UPPER CROSSMEMBER
FORD NINE INCH FLOATER
REAR END HOUSING
WATTS LINK PIVOT
WATTS LINK RODS
FLOATER
HUBS
U-BOLTS
Kit Contents
G-Comp Chassis Brace
G-Comp Front Support
Chevy II Unser Rear Arms (pair)
G-Comp Upper Crossmember
G-Comp 54" Floater Rear Housing
Floater Components
25.5" Double Splined Axle - 31
30" Double Splined Axle - 31
Hardware Kit - Unser Rear
G-Comp Rear Watts Link Package
G-Comp Rear Sway Bar - Nova
SWAY BAR ARMS
ECCENTRIC CAMS
CHASSIS BRACE
COIL OVERS (NOT INCLUDED)
G-COMP TRUCK ARMS - UNSER EDITION
FRONT SUPPORT BRACES
1
