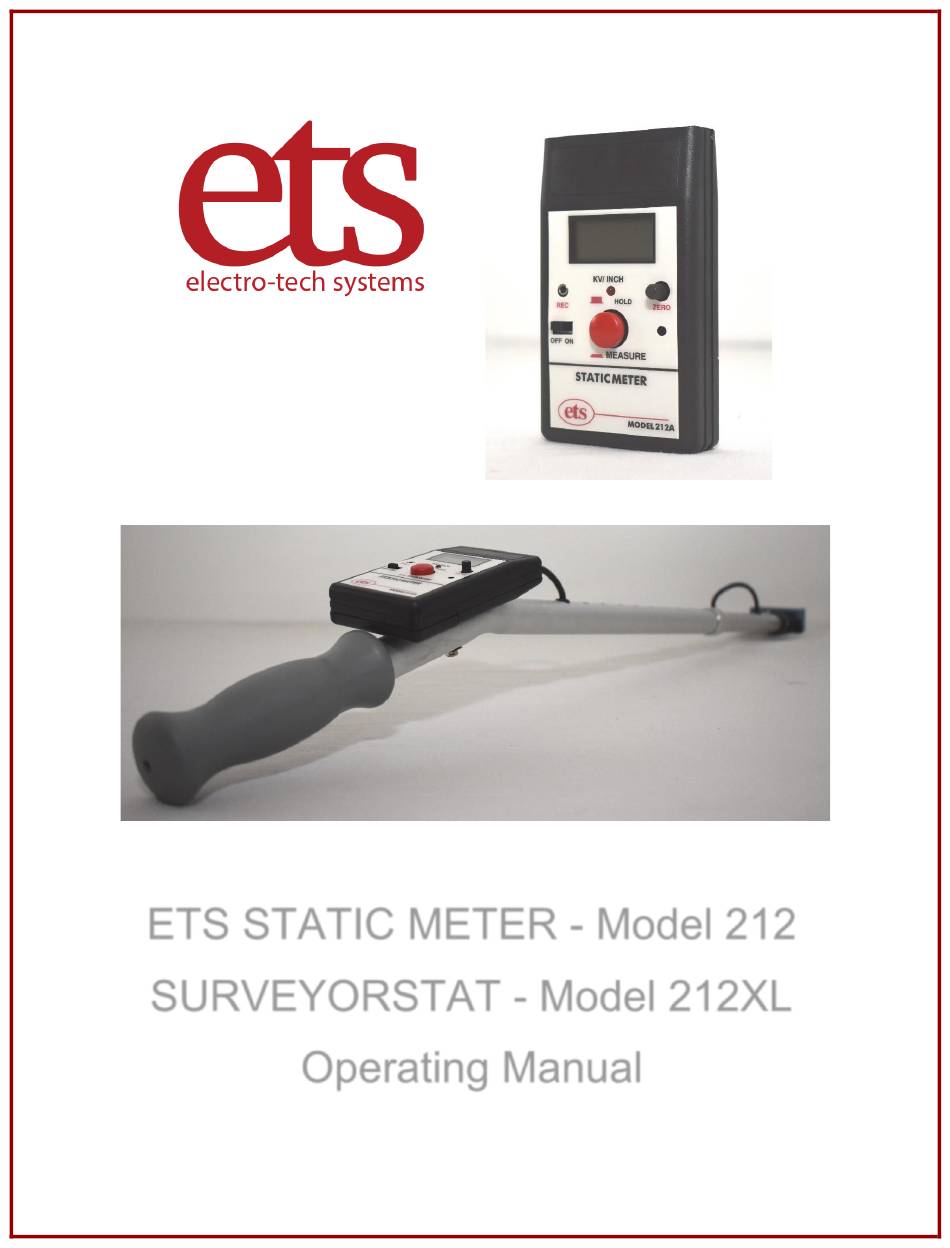

- Page 1 ETS STATIC METER - Model 212 SURVEYORSTAT - Model 212XL Operating Manual Electro-Tech Systems, 700 West Park Avenue, Perkasie, PA 19844 - 833-ENV-GURU (833-368-4878) D00970 Revision C...
-
Page 2: Table Of Contents
Products described in this manual are designed and assembled in the U.S.A. by Electro-Tech Systems, Inc. 700 West Park Avenue Perkasie, PA 19844 www.electrotechsystems.com Model 212 – Static Meter – Operating Manual D00970 Revision C - Page 2 of 15... -
Page 3: Important Safety Information
DO NOT OPERATE IN THE PRESENCE OF A PACEMAKER OR OTHER MEDICAL OR LIFE- SUSTAINING ELECTRONICS. The 212 will not produce an electrical discharge, however it is used to measured HV devices, and accidental zaps may cause malfunction of nearby electronic circuits. -
Page 4: Description Of Components
Static meter (212XL includes separate sensor and extension arm) Cable Black 10’ coiled cord with clip Battery (Installed) Case (212 only – Black vinyl case) Model 212 – Static Meter – Operating Manual D00970 Revision C - Page 4 of 15... -
Page 5: Set-Up Guide
NOTE: The chopper-stabilized sensor that is used in these meters is prone to shock. Extreme care must be taken in handling and transporting these instruments. Keep in supplied case when not in use. Model 212 – Static Meter – Operating Manual D00970 Revision C - Page 5 of 15... -
Page 6: Quick Start Guide
Attach the Ground Cable to the snap on the back of the case. Connect the other end to a known ground. If holding the 212 in your bare hand, discharge by touching ground. Step 3 – Set 1 inch distance Hold the Meter 1 inch (25mm) from the object to be measured. - Page 7 Hold reference. In the HOLD position the red LED will light. The analog output signal is also held. Button Model 212 – Static Meter – Operating Manual D00970 Revision C - Page 7 of 15...
-
Page 8: Operating Instructions
The Model 212 and 212XL Static Meters are accurate, compact electrostatic field meters used for locating and measuring static charge potentials. The Model 212 is a handy, compact handheld unit which utilizes a 3½-digit LCD digital display readout. Ranging lights assure accurate and repeatable measurements when measuring flat surfaces. - Page 9 For example, at a measurement distance of 3” (76mm), multiply the Model 212 meter reading by 3 to give a range of 0 to 60 kilovolts. Observing the aspect ratio guideline above, the object being measured at this distance should be at least 12”...
- Page 10 4. If the meter reads over scale move it back to 2” (5.1 cm). The calibration will then be 40 kV full scale for the Model 212 Meter (double the reading on the meter scale). Moving the Meter back to 3” (7.6 cm) triples the scale factor, etc.

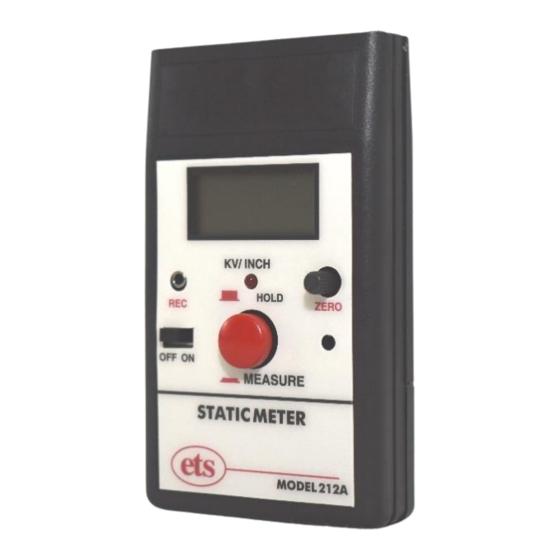

- Page 11 Rotary knob used for fine adjustment of the 0.00 level. Display 3-1/2 digit LCD digital display. REC connector 2.5mm phone jack for analog recorder output. Red LED HOLD indicator Model 212 – Static Meter – Operating Manual D00970 Revision C - Page 11 of 15...
- Page 12 Extender Power 9VDC alkaline battery. 2.4”W x 4.2”L x 1.3”D (61x107x33mm) meter, 22-36” (560-920mm) extender. Size: Weight 1.33 lbs (605g) Charged. Plate Available Adapter Model 212 – Static Meter – Operating Manual D00970 Revision C - Page 12 of 15...
-
Page 13: Calibration And Maintenance
BATTERY REPLACEMENT The Model 212 operates from a standard 9 VDC alkaline battery. Battery life is in excess of 30 hours under normal use. When the battery voltage drops below 6.7 volts, the 212 will indicate low battery by illuminating all of the decimal points on the display. -
Page 14: Warranty
Static Meter and adjust the ZERO if necessary. Turn on the calibrated power supply. The Meter should read the applied voltage 5% for the Model 212. For the Model 211, the correct indicator should light. Small adjustments of the Meter distance from the plate will change the reading. -
Page 15: Appendix A - Probes And Detectors
Model 205C, 205C-x1 and 205C-x10 Charged Plate Detectors These charged plate detectors attach to the front of the Model 211 and 212 Static Meter. The standard Model 205C along with the optional 6”x6” Detector Plate is shown in below increases the sensitivity of the measurement system by a factor of 10 and is designed for low voltage measurements up to 2kV with a resolution of 1V.
