Extensions:
Max. width around 13 cm
Min. width around 6 cm

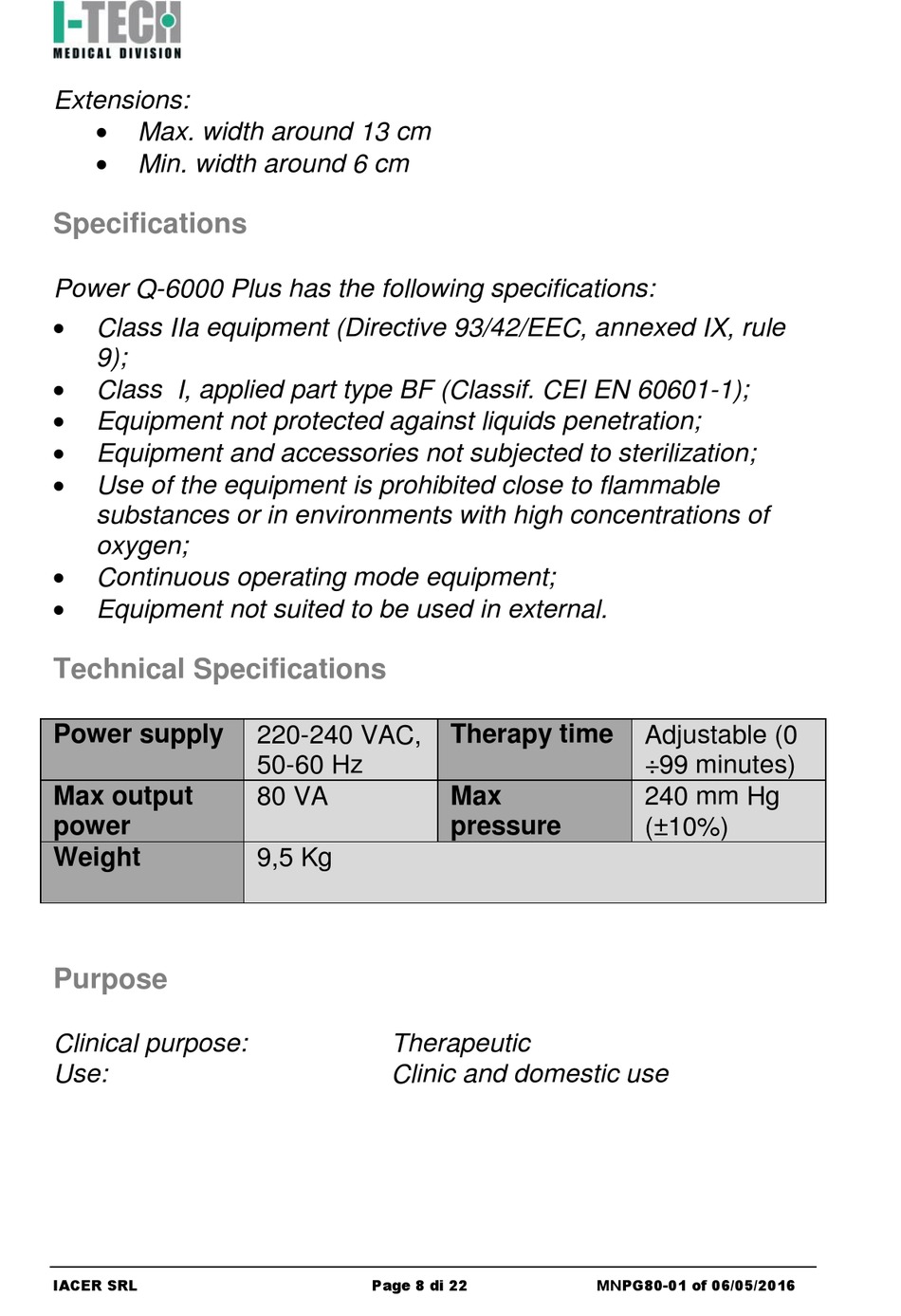

Specifications

Power Q-6000 Plus has the following specifications:
Class IIa equipment (Directive 93/42/EEC, annexed IX, rule
9);
Class I, applied part type BF (Classif. CEI EN 60601-1);
Equipment not protected against liquids penetration;
Equipment and accessories not subjected to sterilization;
Use of the equipment is prohibited close to flammable
substances or in environments with high concentrations of
oxygen;
Continuous operating mode equipment;
Equipment not suited to be used in external.

Technical Specifications

Power supply
Max output
power
Weight

Purpose

Clinical purpose:
Use:
IACER SRL
220-240 VAC,
50-60 Hz
80 VA
9,5 Kg
Therapeutic
Clinic and domestic use
Page 8 di 22
Therapy time
Max
pressure
MNPG80-01 of 06/05/2016
Adjustable (0
÷99 minutes)
240 mm Hg
(±10%)
