koller ASZEP10-PL Instructions

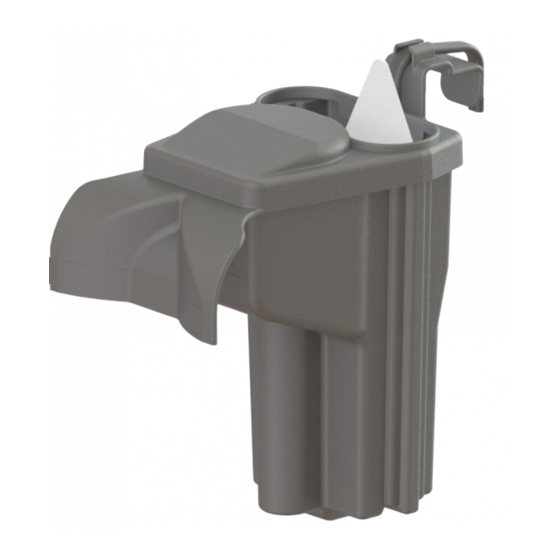

AQUARIUM INTERNAL
POWER FILTER
UNIT INSTRUCTIONS
WITH IMPORTANT SAFEGUARDS
AND WARRANTY
UL Approved Pump Motor
120V 60 HZ .03A
For Household Use Only
Children Under 13 Must Be
Supervised By An Adult
FILTER MODEL # ASZEP10-PL
COPYDATE 7/15/2019
HANGER INSTALLATION
Locate the adjustable hanger bracket included
with your filter unit. It could have been placed
inside the filter cartridge compartment.
HANGER POST
HANGER BRACKET
Place the hanger bracket at 90° and align one
of the adjustment holes onto the mounting post
as shown in the illustration ABOVE.
Then rotate the hook until the hanger is vertical
as shown in the illustration BELOW.
PLACE WIRE THROUGH
CLEAT ON HANGER
MAINTAINING PROPER WATER LEVEL
Important: Before using the filter submerge the
unit entirely under water until all bubbles disap-
pear. Then hang the filter on the side of the
tank. Always keep in mind the Water level on the
filter is very important to keep it running quiet
and efficient. Allowing the level to drop below
minimum will allow the pump to run dry.
DO NOT RUN PUMP DRY.
HIGH LEVEL
LOW LEVEL
THIS LINE IS SHOWN ON THE FRONT OF
THE SHROUD DEFLECTOR. IT IS THE OP-
TIMAL WATER LEVEL. MAINTAINING THIS
LEVEL ASSURES PROPER OPERATION.
TECHNICAL DATA
FLOW RATE
FILTER WATTAGE (GPH)
ASZEP10-PL 3.6 30
REPLACEABLE
CARTRIDGE
S
