SCS
Resistance Pro Meter Kit
Installation, Operation and Maintenance

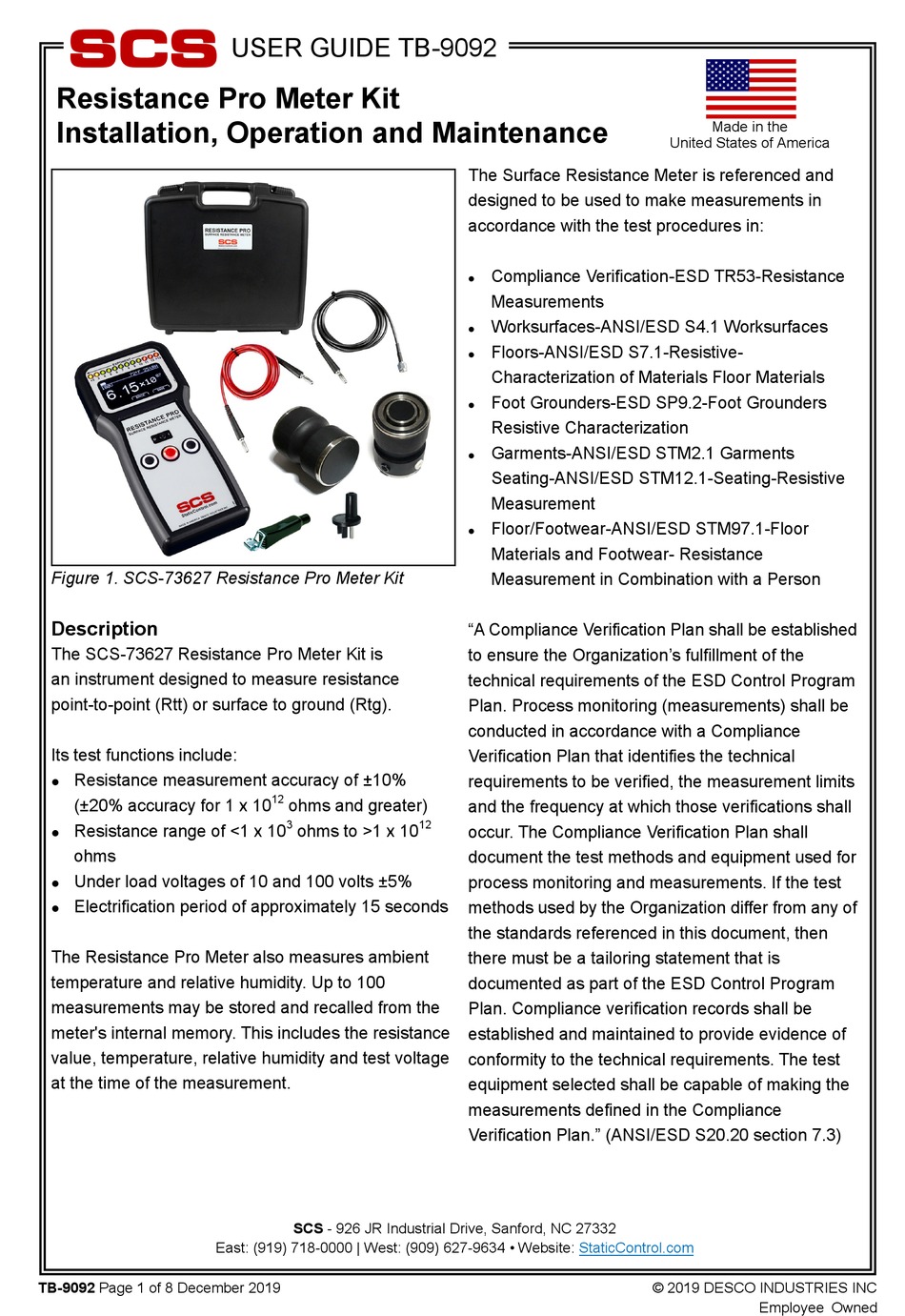

Figure 1. SCS-73627 Resistance Pro Meter Kit

Description

The SCS-73627 Resistance Pro Meter Kit is
an instrument designed to measure resistance
point-to-point (Rtt) or surface to ground (Rtg).
Its test functions include:
Resistance measurement accuracy of ±10%
l
(±20% accuracy for 1 x 10
Resistance range of <1 x 10
l
ohms
Under load voltages of 10 and 100 volts ±5%
l
Electrification period of approximately 15 seconds
l
The Resistance Pro Meter also measures ambient
temperature and relative humidity. Up to 100
measurements may be stored and recalled from the
meter's internal memory. This includes the resistance
value, temperature, relative humidity and test voltage
at the time of the measurement.
TB-9092 Page 1 of 8 December 2019
USER GUIDE TB-9092
12
ohms and greater)
3
ohms to >1 x 10
SCS - 926 JR Industrial Drive, Sanford, NC 27332
East: (919) 718-0000 | West: (909) 627-9634 • Website:
The Surface Resistance Meter is referenced and
designed to be used to make measurements in
accordance with the test procedures in:
Compliance Verification-ESD TR53-Resistance
l
Measurements
Worksurfaces-ANSI/ESD S4.1 Worksurfaces
l
Floors-ANSI/ESD S7.1-Resistive-
l
Characterization of Materials Floor Materials
Foot Grounders-ESD SP9.2-Foot Grounders
l
Resistive Characterization
Garments-ANSI/ESD STM2.1 Garments
l
Seating-ANSI/ESD STM12.1-Seating-Resistive
Measurement
Floor/Footwear-ANSI/ESD STM97.1-Floor
l
Materials and Footwear- Resistance
Measurement in Combination with a Person
"A Compliance Verification Plan shall be established
to ensure the Organization's fulfillment of the
technical requirements of the ESD Control Program
Plan. Process monitoring (measurements) shall be
conducted in accordance with a Compliance
Verification Plan that identifies the technical
requirements to be verified, the measurement limits
and the frequency at which those verifications shall
12
occur. The Compliance Verification Plan shall
document the test methods and equipment used for
process monitoring and measurements. If the test
methods used by the Organization differ from any of
the standards referenced in this document, then
there must be a tailoring statement that is
documented as part of the ESD Control Program
Plan. Compliance verification records shall be
established and maintained to provide evidence of
conformity to the technical requirements. The test
equipment selected shall be capable of making the
measurements defined in the Compliance
Verification Plan." (ANSI/ESD S20.20 section 7.3)
StaticControl.com
Made in the
United States of America
© 2019 DESCO INDUSTRIES INC
Employee Owned
