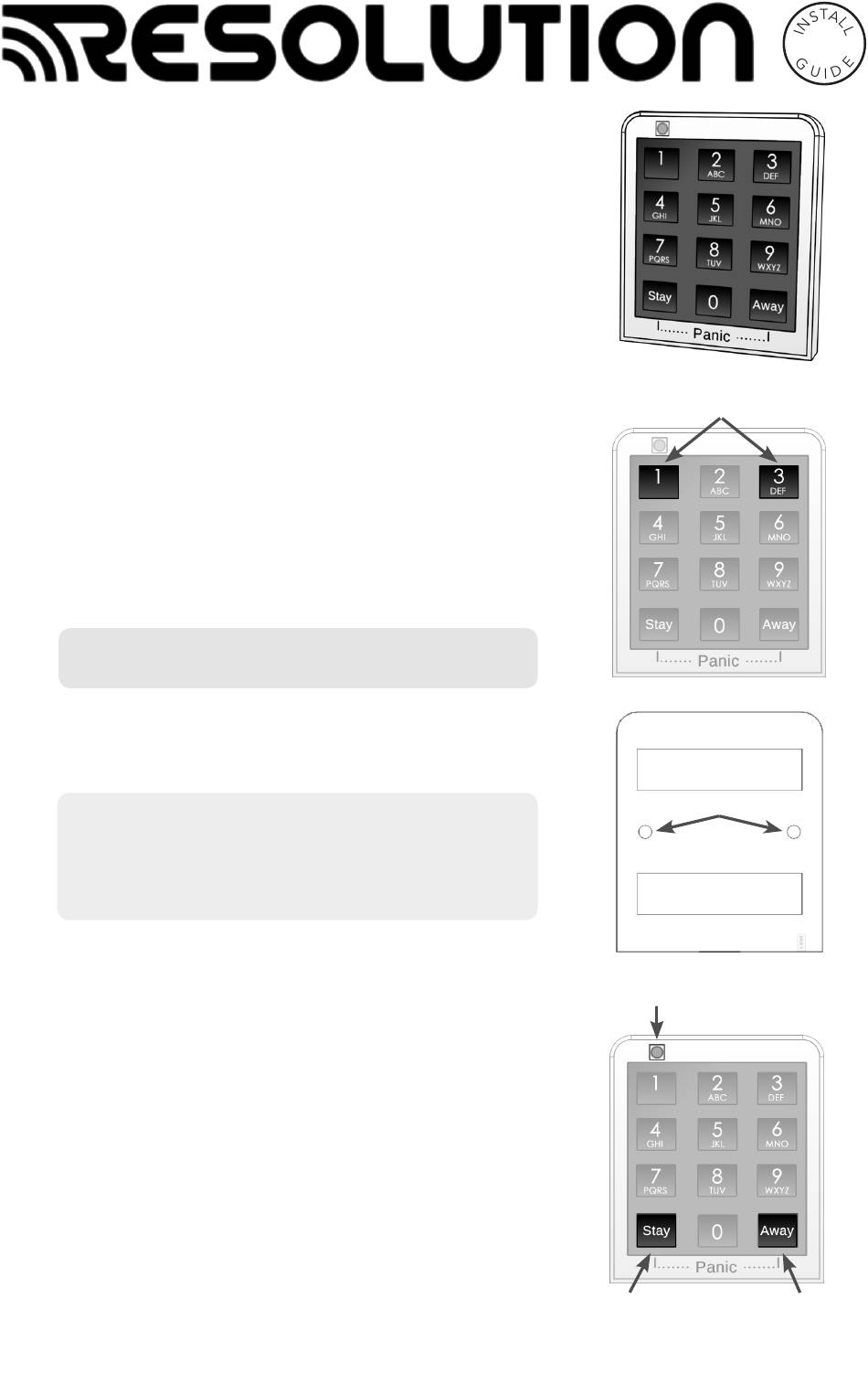

Resolution CryptiX PINPad RE652 Series Install Manual

RE652 Series CryptiX™ PINPad™
PINPad
is a simple arming station that allows local
control of the Helix panel. It is battery powered and
requires no installation tools. Many can be installed
throughout the home to provide convenient system
control.

Features

• Secure 4 to 10 digit disarming
• Supports 1-button arming
• Small yet comfortable
• 5 year warranty

Enroll

by placing the panel into wireless enrollment
mode and then sending an enrollment signal from the
PINPad. Alternatively, the PINPad can be enrolled
by scanning its bar code using the HeliLink app or
by entering its 8-character serial number on the
interactive service provider's web portal.
Option for sending an Enrollment Signal
• Press 1 and 3 buttons simultaneously

Install

using the 3M VHB® tape on the back of the
PINPad to adhere it to a wall.
• See Pro Tips for recommendations about using
3M VHB tape.
• Two #4 or #6 screws may be used instead of,
or in addition to, the 3M VHB tape.

Operate

using the PINPad buttons. The PINPad LED
will blink when a button is activated.

Disarm

by entering a valid 4-10 digit user code on
the number pad.

Arm Away

by pressing the AWAY button until the
PINPad LED flashes red.

Arm Stay

by pressing the STAY button until the
PINPad LED flashes red.

Trigger a panic alarm

AWAY buttons together until the PINPad LED
flashes red.
Use the Helix installation guide to verify proper system setup.
by pressing the STAY &
Enrollment Buttons
VHB Tape
Mounting Screw Holes
VHB Tape
PINPad LED
Arm Stay Arm Away
