Fitting The Briefcase Ledge; Fitting The Return Desk - Konig + Neurath DO IT 4 Assembly Instructions Manual

9.

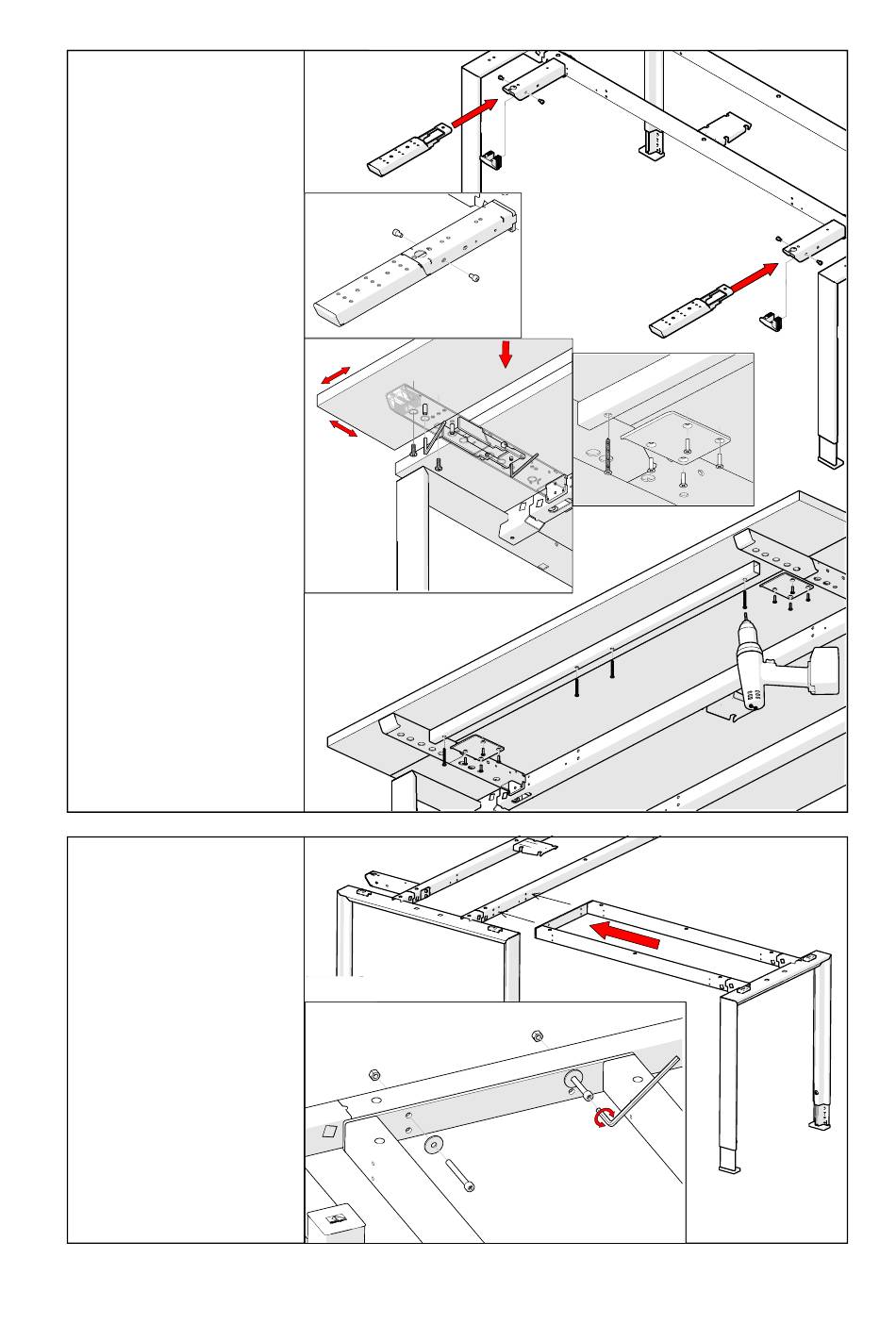

Fitting the brief-
case ledge
Remove end caps (a). Insert
the briefcase ledge bracket (b)
into the frame bracket and fix
in place with two cylinder head
screws M6x10 (SW5) on each
side (c).
Position top (d) on the
brackets, fit them together
from underneath, using screws
ø4,5x20 (e). The alignment of
the briefcase ledge to the desk
top can be adjusted with grub
screws M8x20 (f) (SW4).
Adjust the inclination of the
briefcase ledge with grub
screw M6x10 (g) (SW3).
Fit an additionally reinforcing
tube (h) from underneath to
the top, using wood screws
ø4,5x45 (from type 1600).
Fit support plates (i) to the
table top from beneath with
chipboard screws ø4x15.
10.
Fitting the return
desk
Align the return desk leg
frame (a) with the desk
frame.
Connect it through the main
beam of the desk frame
using cylinder head screws
(b) M6x55 (SW5) and wash-
ers with hex nuts (c).
(b)
(a)
(c)
(d)
(f)
(g)
(e)
(c)
25
(b)
(h)
(i)
(a)
(b)
(a)
