5.

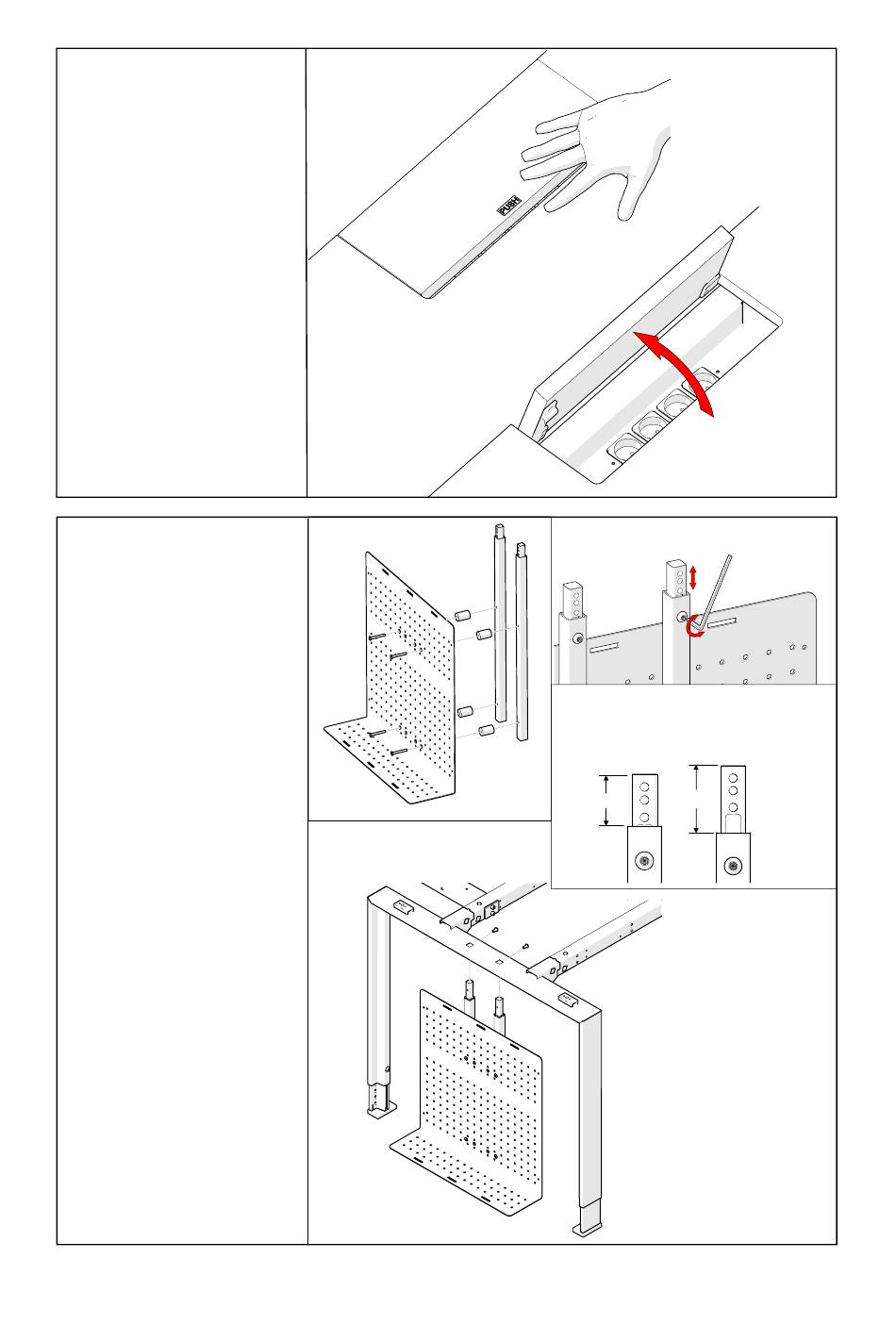

Using the desk flap

(optional)
The push to open-function is
activated by a soft touch (a).
Now enables access to the
socket (b) and the desk can
be supplied with power.
6.
Fitting the CPU hol-
der
Fit plate to the tubes (a) with
counter-sunk screws M5x40
(SW3) and spacers.
Note dimension of the pins (b):
40 mm (T profile) or 30 mm
(rectangular profile).
Push the pins of the CPU hol-
der (c) into the appropriate
openings on the cross-beam
from underneath and screw into
place from inside using button
head screws (d) M6x35, T-
profile or M6x16, rectangular
profile (SW 4). The CPU holder
can optionally be mounted on
the inside or the outside.
Desks with fold-out cable tray:
only on the outside!
(a)
(a)
30
(d)
(c)
22
(b)
(b)
T profile
rectangular
profile
40
