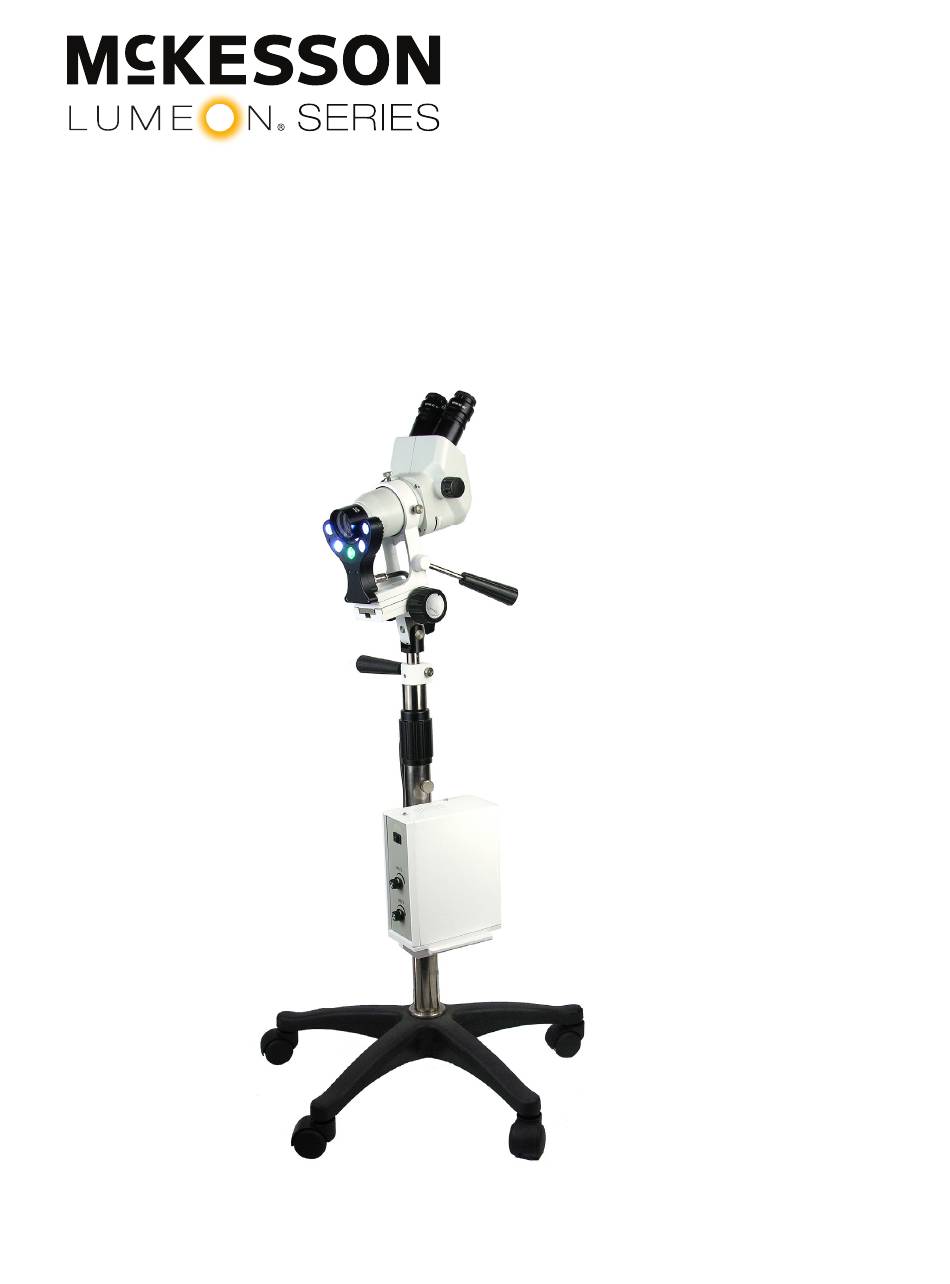

- Page 1 CENTER POST COLPOSCOPE OPERATION MANUAL For use with MFR# 179 and 164.
- Page 2 ® Thank you for choosing the McKesson LUMEON Center Post Colposcope. This precisely built, durable instrument should give you years of service to even the busiest office practice. Our technical and customer support departments stand ready to assist you with any questions or comments you may have.
- Page 3 BASE AND THE CENTER-POST STAND ASSEMBLY Remove 5-leg base from the shipping box and put it on a flat surface. Install the lower post into the mounting hole of the base. Insert the bolt through the bottom of the base in to threaded hole of the post. Tighten using the Allen wrench provided.
- Page 4 FOCUSING ® McKesson LUMEON Series Colposcope Proper set-up of your is essential to viewing in-focus over the entire zoom range of 4X – 27X. Please follow these instructions for successful viewing. Plug-in and turn on the Colposcope illuminator, set the rheostat to it’s brightest setting Set the diopters for each eyepiece to “0”...
Need help?
Do you have a question about the Lumeon Series and is the answer not in the manual?
Questions and answers

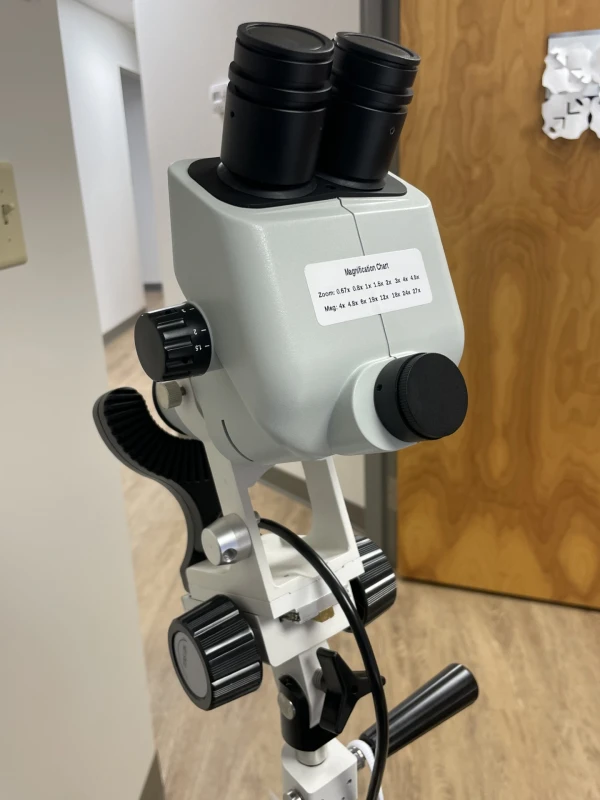

Good evening, I just used my new McKesson Lumeon 179 for the first time, and I have run into some issues. 1st- there are no focusing diopters included with my model. 2nd- I **** also missing one of the handles used to reposition the device so I cannot adjust the angle without loosening the bolt and just hoping it doesn't topple over. 3rd: The large focus knobs are installed backwards. The numbers are upside down and it is clearing focusing in when turned down to .67 and focusing out when turned up to 4.5. We are eager for a solution. Thank you.
If your McKesson Lumeon 179 is missing focusing diopters, a repositioning handle, and has incorrectly installed focus knobs, you should contact the customer support team for assistance in obtaining the necessary accessories or spare parts. Additionally, if the focus knobs need adjustment, you can follow the focusing tension adjustment instructions in the manual to tighten or loosen them as needed.
This answer is automatically generated
