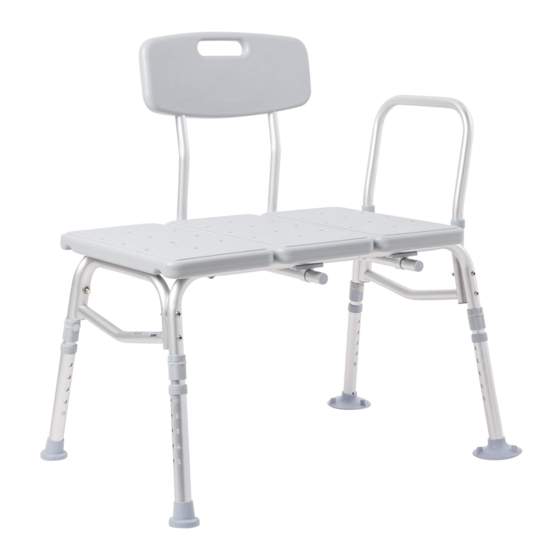

McKesson 146-RTL12031KDR Assembly Instructions

Transfer Bench
aluminum frame
Provides a total weight bearing capacity of 400 lbs (181 kg).
For use with MFR# 146-RTL12031KDR.
ASSEMBLY INSTRUCTIONS
1. Remove contents from carton.
2. Lay both transfer bench seat sections upside
down on a flat surface.
3. Slide smaller seat section into larger section by
depressing the brass push pins and inserting into
the receptacles. Snap buttons will pop out when
secure (Figure 1).
FIGURE 1
4. Remove black top from 4 leg receptacles.
5. Attach leg with the large suction cup (marked "A")
by depressing the brass push pin and inserting
into the receptacle with the matching "A". Repeat
for second leg (Figure 2).
FIGURE 2
6. Attach leg with small rubber tip (marked "B") by
depressing brass push pin and inserting into the
receptacle with matching "B". Repeat for second
leg (Figure 3).
FIGURE 3
7. Turn transfer bench right-side-up. Attach armrest by
depressing brass push pins and sliding into the arm
receptacle on the side of the bench. Make sure the arm
arcs outward, not inward (Figure 4).
FIGURE 4
