McKesson 146-12011KD-2 Instructions For Use

BATH SAFETY

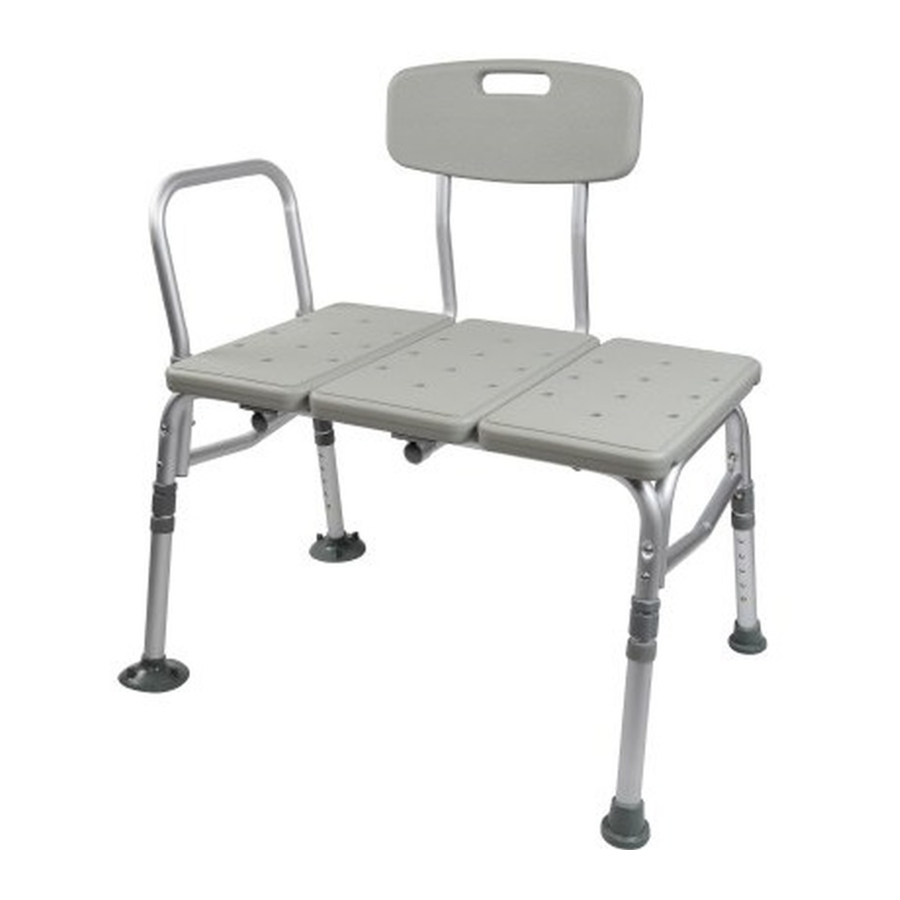

Transfer Bench
aluminum frame
Provides a total weight bearing capacity of 400 lbs (181 kg).
INSTRUCTIONS FOR USE
OUTSIDE LEGS
32 in x 23 in
(81 cm x 58 cm)
146-12011KD-2
MFR #
ASSEMBLY INSTRUCTIONS
1. Remove contents from carton.
2. Lay transfer bench upside down on a flat surface.
3. Attach leg with the large suction cup (marked "A")
by depressing the brass push pin and inserting
into the receptacle with the matching "A". Repeat
for second leg (Figure 1).
FIGURE 1
4. Attach leg with small rubber tip (marked "B") by
depressing brass push pin and inserting into the
receptacle with matching "B". Repeat for second
leg (Figure 2).
FIGURE 2
5. Turn transfer bench right-side-up. Attach armrest
by depressing brass push pins and sliding into the
arm receptacle on the side of the bench. Make
sure the arm arcs outward, not inward (Figure 3).
FIGURE 3
6. To assemble backrest, insert pole into backrest
support by depressing push pin and sliding into
receptacle. Repeat for second pole (Figure 4).
FIGURE 4
