Summary of Contents for Cochlear WIRELESS PHONE CLIP

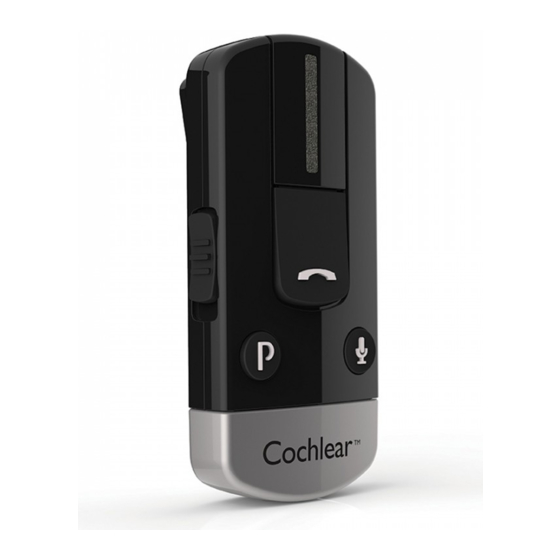

- Page 1 COCHLEAR WIRELESS ™ PHONE CLIP POCKET GUIDE...
- Page 2 Welcome to True Wireless. No Strings Attached. Index Overview Getting Started Product Diagram Pairing Using Visit us online for helpful tips, how-to videos and more: www.cochlear.com/us/N6wireless recipients.mycochlear.com...
- Page 3 The Cochlear Wireless ™ Phone Clip allows you to: Enjoy hands-free calling direct to your CP900 Series Sound Processor. Hear your Bluetooth -enabled ® navigation system. Stream music from a Bluetooth- enabled device. How to: The Phone Clip can be easily attached to clothing.
-
Page 4: Getting Started
Getting Started Charging the battery Plug one end of the included micro- USB charging cable into the Phone Clip and the other into a computer, or into a power outlet via the supplied adapter. When the red LED indicator on top of the Phone Clip turns green with a red blink every 2 seconds charging is complete. -
Page 5: Product Diagram
Product Diagram Microphone inlet Call pick-up/ hang-up button Power Volume control switch (Not used with CP900 series) Micro-USB connector for charging... - Page 6 Pairing Follow the four steps below to pair your Nucleus 6 or Kanso Sound ® ™ Processor to the Cochlear Wireless Phone Clip. Switch off your CP900 Series Sound Processor. Remove the Sound Processor from your ear. Disconnect the battery.
- Page 7 Press the white pairing button on the Phone Clip once using the tip of a pen or similar object. Note: The LED will flash yellow every 2 seconds and the Phone Clip will now be in pairing mode for 20 seconds. While pairing mode is active (20 seconds), attach the battery to the Nucleus 6 Sound Processor (CP910/920)
-
Page 8: Pairing With A Mobile Phone
Pairing with a Mobile Phone Follow the six steps below to pair your the Cochlear Wireless Phone Clip with your mobile phone. Switch on your Phone Clip and remove the silver cap. Switch on Remove cap Make sure your mobile phone’s Bluetooth function is switched on. - Page 9 During pairing mode the LED will turn blue. On your mobile phone search for new Bluetooth devices and select “Hearing Aid Phone” from the list. If your mobile phone asks for a passcode, enter “0000” (four zeros). Your Phone Clip should now be paired with your mobile phone.
- Page 10 Using Now that the Cochlear Wireless Phone Clip is paired you are ready to start using it. Managing calls with the call pick-up / hang-up button Incoming calls: To answer a call, press once. To decline a call, double-click. During a call: To transfer a call started on your phone to the phone clip, press once.
- Page 11 Stream music from your phone You can use the Phone Clip to stream music from your mobile phone or computer. Connect the device to the Phone Clip using Bluetooth. Start playing music on the device. You hear the audio streaming from the device.
- Page 12 Cochlear Canada Inc. 2500-120 Adelaide Street West Toronto, ON M5H 1T1 Canada Telephone: 1 416 972 5082 Fax: 1 416 972 5083 ©Cochlear Limited 2014. All rights reserved. Trademarks and registered trademarks are the property of Cochlear Limited. FUN2195 ISS3 OCT16...
