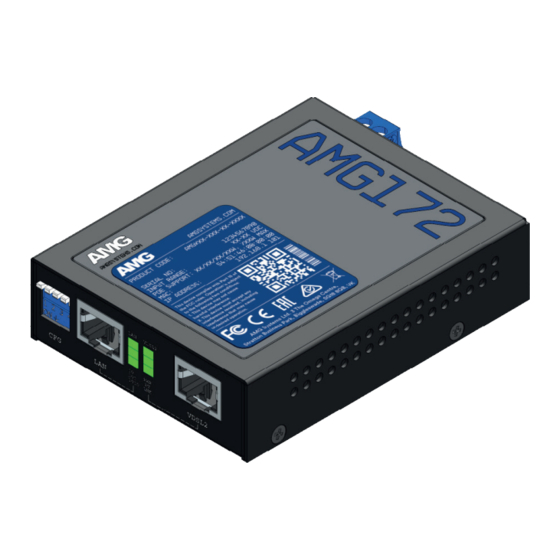

AMG 172 Series Installation Manual

Industrial vdsl2 ethernet extender
Hide thumbs
1
2

Advertisement

Table of Contents

AMG Systems Ltd. 3 The Omega Centre, Stratton Business Park, Biggleswade, SG18 8QB, UK
T :: +44 (0) 1767 600 777 E :: sales@amgsystems.com
www.amgsystems.com
D39156-00
AMG172 SERIES INCLUDED ACCESSORIES
AMG172-1G-1V
DIN Rail Bracket
RJ45 to RJ11 Adapter
RJ45 to Coax Adapter
RJ45 to 2-Wire Adapter
Ethernet Extender
www.amgsystems.com

DIN RAIL MOUNT INSTALLATION

①

SURFACE MOUNT INSTALLATION

① Fix 2 x 3MM screws into the surface
(for location please refer to product
dimensional drawing).
② Position unit onto the screws and
then push down to lock into position.
AMG172 Series
Industrial VDSL2
Installation Manual - Hardware
②

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 172 Series and is the answer not in the manual?

Questions and answers

Related Manuals for AMG 172 Series

Summary of Contents for AMG 172 Series

  • Page 1 AMG172 Series Industrial VDSL2 Ethernet Extender Installation Manual - Hardware AMG Systems Ltd. 3 The Omega Centre, Stratton Business Park, Biggleswade, SG18 8QB, UK T :: +44 (0) 1767 600 777 E :: sales@amgsystems.com www.amgsystems.com www.amgsystems.com D39156-00 AMG172 SERIES INCLUDED ACCESSORIES DIN RAIL MOUNT INSTALLATION ①...
  • Page 2 LED INDICATORS POWER Voltage Power 10-30 VDC 4.5W Max Please ensure the unit is correctly earthed using the earth connection provided to maintain surge protection Warning Do not exceed the rated voltage. Refer to product label VDSL2 RJ45 PORT PIN ASSIGNMENTS Colour Description Pin Number...
