Commander™ Site Controller Software Installation Guide
Rear Panel
July 25, 2013
Activity LEDs for CPU A
Device Ports for CPU A

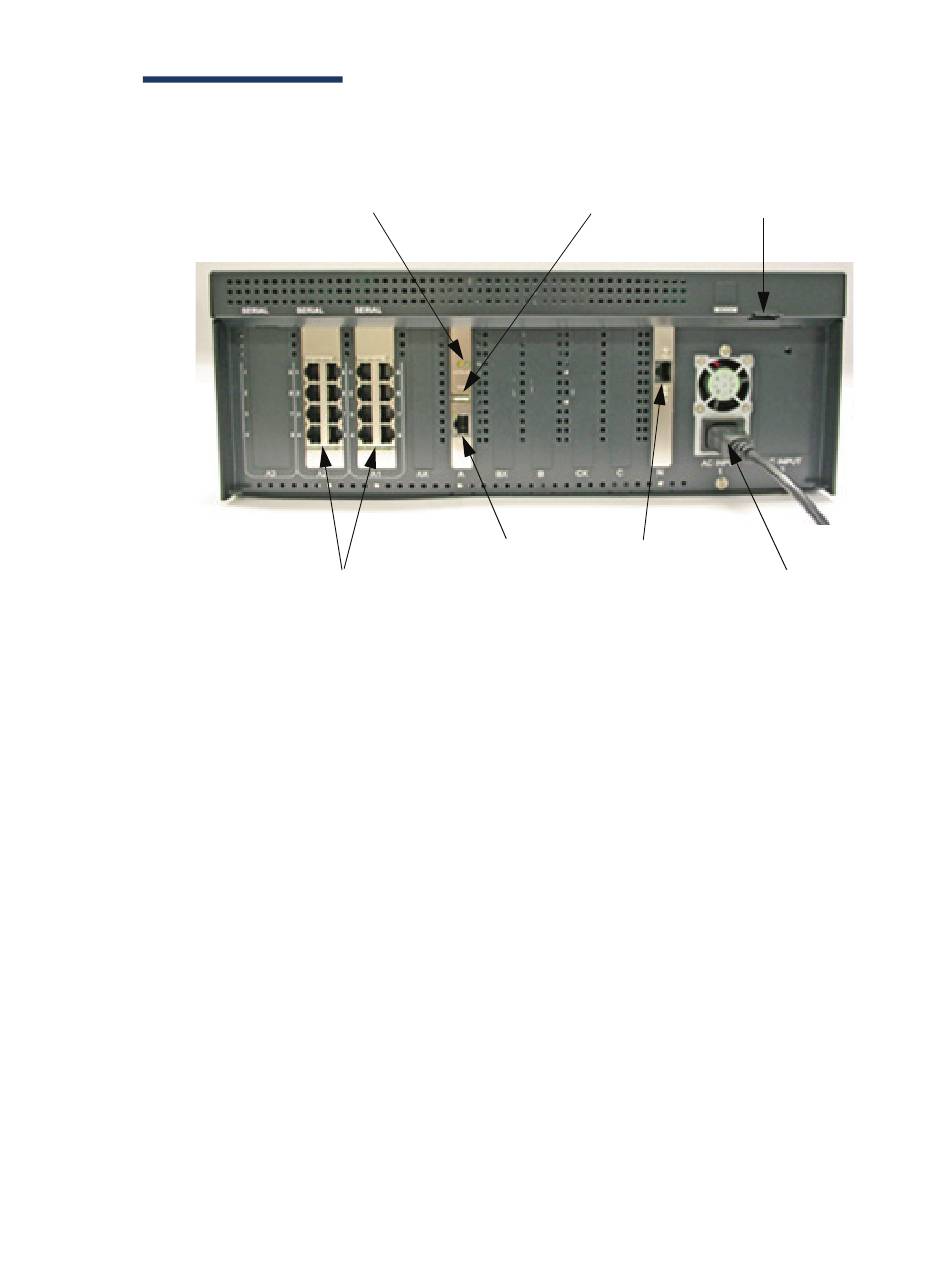

Figure 5: Commander Site Controller - Rear Panel
Device Ports for CPU A — Serial Port Connections
■
for CPU A, Banks A1 and A2
Activity LEDS for CPU A — LEDs flicker to show
■
LAN activity
USB Port — One USB 2.0 Port
■
LAN — For Card Processing Network
■
Modem Port — Connection used for dedicated
■
telephone line.
Note:
Ethernet Port — Ethernet port for POS and
■
external connectivity (WAN, VPN)
Power Connector — Connector for applying power
■
to the Site Controller
USB Port
Ethernet Port
LAN
Actual modem may not be present in all
configurations. Only UL listed USB Modem
permitted.
Modem Port
Power Connector
7
