Summary of Contents for Trio UNIPLAY 7

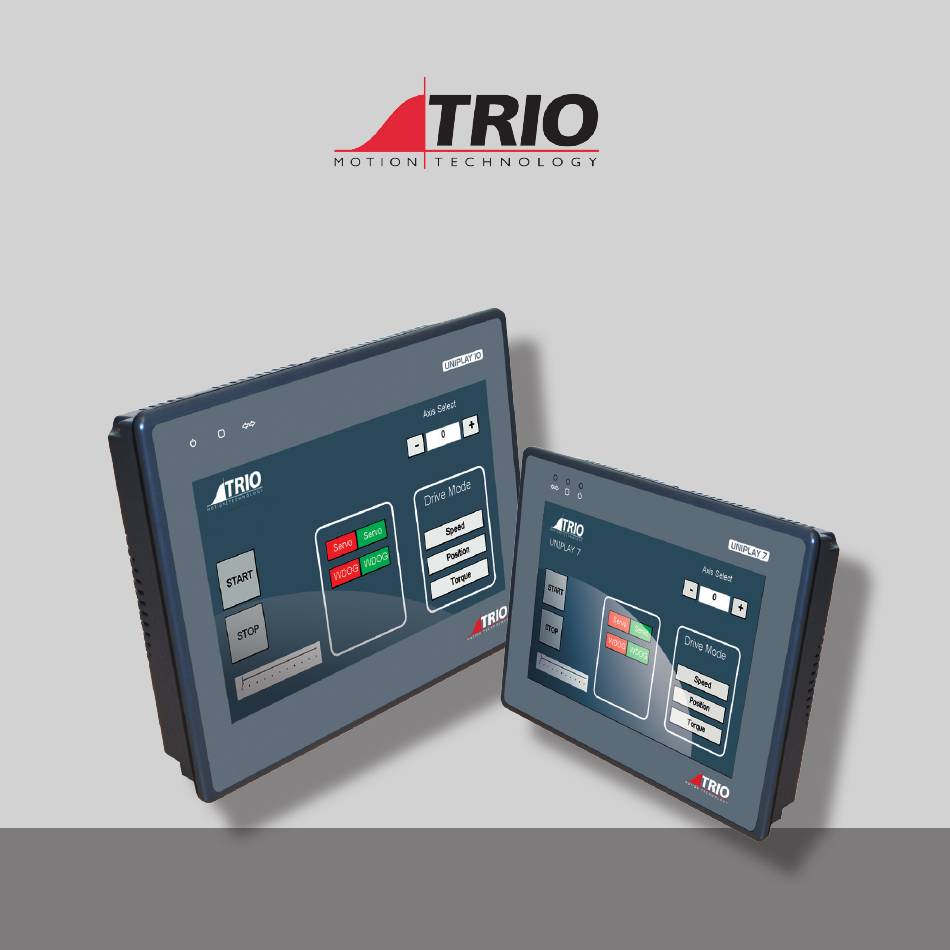

- Page 1 UNIPLAY HMI Quick Start Guides QUICK CONNECTION GUIDE...

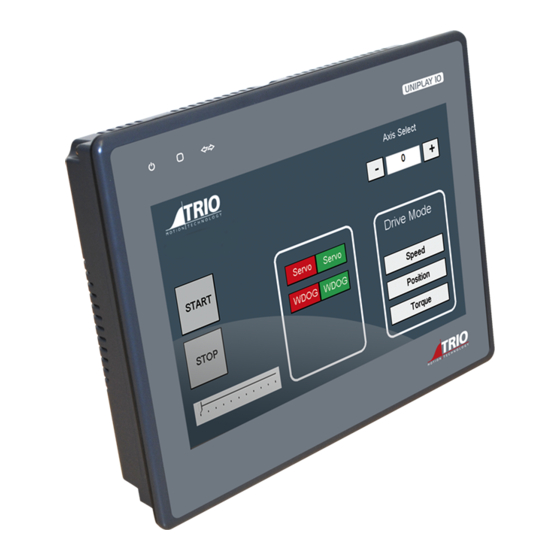

- Page 2 USING UNIPLAY UNIPLAY HMI’s work with the Trio 4xx Motion Coordinator range. Motion Perfect 3 is used to create operator HMI screens which are transferred to the UNIPLAY HMI by the Motion Coordinator at runtime. Trio recommend using a USB powered switch...
-
Page 3: Installation
INSTALLATION 4. Whilst attempting to connect to the Motion Coordinator the panel displays a page: 1 The Motion Coordinator default IP address is 192.168.0.250 2 The UNIPLAY panel default IP address is 192.168.0.251 3 The HMI panel must be aware of the Motion Coordinator IP address. - Page 4 CREATING AN HMI PAGE The new blank page will open in the editor: Right mouse click on “Programs” or use Program->New on the menu The components on the left hand column can be dragged and dropped on the page. The top border tools are used to edit and align pages.
- Page 5 The properties of each component can be edited The menu then lets you choose what type of by a menu brought up using a right mouse click: controller data to link to. This can be a program variable, for example in the program “MAINPROG”...
- Page 6 CREATING FURTHER HMI To see the screen run live on the UNIPLAY HMI simply click the green “upload” button: PAGES Further pages are made in the same way as the first page by right-clicking “Programs”. Note how one HMI screen is set to be the “Start-up page”. This is the first page that will be displayed and is highlighted in bold in the program tree.
-
Page 7: Software Installation
USING CHINESE FONTS WITH Electrical Environment UNIPLAY The UNIPLAY 7 / 10 has been tested to conform to European CE requirements. This means that The UNIPLAY panel runs Win CE and has the circuitry is designed to resist the effects of Microsoft JhengHei font installed both in standard electrical noise. -
Page 8: Environmental Considerations
Environmental Considerations This device should be mounted in the vertical position on a flat surface of the enclosure. • The UNIPLAY are to be used indoors as built in displays. Make sure that the display are NEMA-4 Mounting installed correctly and that the operating limits Put the unit through the panel cut out (See are followed. -
Page 9: Fusing Requirements
The power conditioning circuitry inside the unit If wiring is to be exposed to lightning or surges, is accomplished by a switching power supply. The use appropriate surge suppression devices. peak starting current can be as high as 2A. Keep a.c., high energy, and rapidly switching d.c. wiring separate from the 3 signal wires. -
Page 10: Dip Switch Settings
Ethernet: the central star earth point. Ground conductors should be as short and as wide in size as possible. A 1:1 or cross-over Ethernet cable may be used The conductors must always be large enough to connect the UNIPLAY screen to a Motion to carry the maximum short circuit current of Coordinator or Ethernet switch. -
Page 11: Dimensions And Ports
Com1 RS485, Com3 RS485, Com3 RS232 Fuse Com1 RS232, Com2 RS232 Power connector Ethernet port VESA 75mm screw holes USB Host port Line out USB Client port SD card slot R2mm 138mm CUTOUT DIMENSIONS 192mm 146.35mm 42.55mm 200.35mm UNIPLAY 7 Quick Start Guides... - Page 12 R2mm 201mm CUTOUT DIMENSIONS 259mm 212.97mm 50mm 270.97mm UNIPLAY 10 UK | USA | CHINA | INDIA WWW.TRIOMOTION.COM B R E A T H I N G L I F E I N T O M A C H I N E S quick start v3-November 2012...
