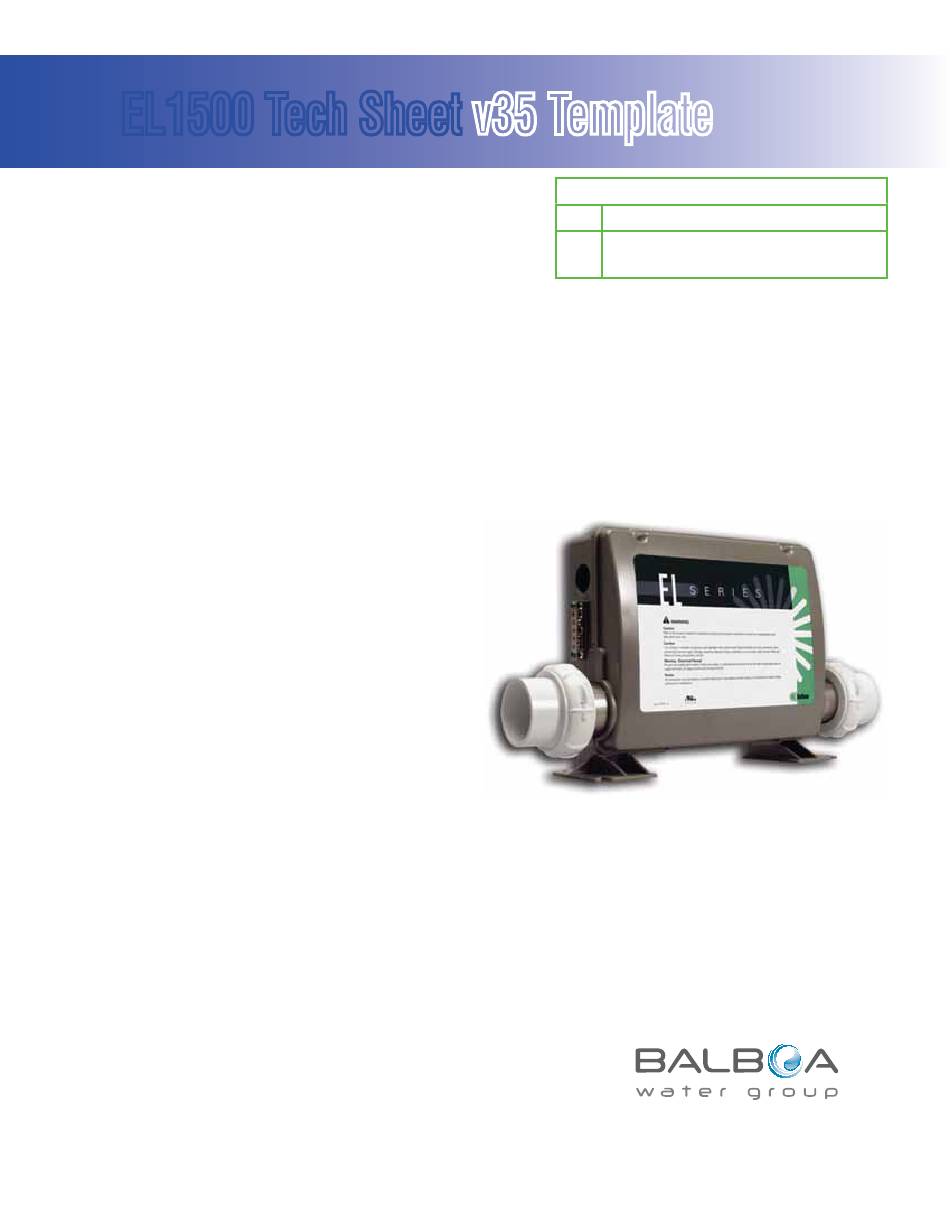

EL1500 Tech Sheet
EL1500 Tech Sheet
_____________
Customer;
System PN ________
System Model # E2P-______-_CA_
Software Version # 35
EPN # _____
Base PCBA – PN ______
PCB EL1500 – PN 22075 Rev B
HEX File – __________
Configuration Signature – __________
Base Panels
See last page for Panel and
MLM990H – PN 54526
Overlay selection.
MLM990S – PN 54527
ML900 – PN 52654
Main Panel PN ________
ML700 – PN 52649
Main Panel Overlay PN ________
ML551 – PN 53502
ML550 – PN 53392
ML400 – PN 52684
Aux Panel PN ________
ML260 – PN 53566
Aux Panel Overlay PN ________
ML240 – PN 53643
ML200 – PN 52685
Aux Panels
AX40 – PN 54527
Redlines created by: _____________
AX10-X
Template used: 40916_01_C.pdf 04/24/2009
40916_01_C.pdf 04/24/2009
Date: _____________
v35 Template
Configuration Method (Check One)
N/A
DIP Switch Configured
Software Configured
Configuration Signature ______________
This is not a shippable model.
This document template is merely a
starting point for custom models.
Optional Custom Box Overlay (Circle One)
- No
- Yes, Overlay PN _______
Page 1
EL1500 - 40916_01_C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Balboa EL1500 v35
Summary of Contents for Balboa EL1500 v35
- Page 1 EL1500 Tech Sheet EL1500 Tech Sheet v35 Template Configuration Method (Check One) _____________ Customer; DIP Switch Configured Software Configured System PN ________ Configuration Signature ______________ System Model # E2P-______-_CA_ Software Version # 35 EPN # _____ This is not a shippable model. This document template is merely a Base PCBA –...
- Page 2 System Revision History This page is for listing the changes made to this system and will be filled in as the tech sheet are System PN EPN Date Requested By Changes Made created/updated. This will provide a quick reference of what was changed from one system version to the next. Page 2 EL1500 - 40916_01_C...
-
Page 3: Power Requirements
Basic System Features and Functions Software Configured Service - Input Power Requirements (Circle Letter Assignment) Power Requirements System Outputs (Circle Configurations) System Outputs Pump 1 240V 120V 1-Speed 2-Speed Disabled Pump 2 240V 120V 1-Speed 2-Speed Disabled Setup 1 (As Manufactured) Pump 3 240V 120V 1-Speed... - Page 4 Persistent Memory and Powering Up message on power up: affect parameters the user can change (any filter settings, set temperature ” or default, Celsius vs Fahrenheit, 12-hour vs 24-hour time, reminders Software Configuration Settings in a valid manner. This must be corrected or Software Configuration Settings changes to take effect.
- Page 5 Wiring Configuration and DIP Settings Setup 1 (As Manufactured) (Stereo) For 120V Systems, DIP A2 and A3 must be OFF and Jumper Wire added. Do not remove Fuse F8 (20A) BLK AC J61 J62 FUSE 20A 250V J15 J16 J25 J63 J64 J66 J65 MAIN ML PNL FUSE .3A 250V...
- Page 6 Setting DIP switches incorrectly may cause abnormal system behavior and/or damage to system components. Refer to Switchbank illustration on Wiring Configuration page for correct settings for this system. Contact Balboa if you require additional configuration pages added to this tech sheet. DIP Switchbank A Key .....Test Mode (normally Off)
-
Page 7: Configuration Options
– Note X-03 option board for retro fit X-Mount P PN 53933 – Spa Light (12V only) Note: Some panels styles are not available depending on system configuration. Consult your Balboa product representative for details. White Other Features Quadrant Green –... -
Page 8: Expander Options
Used for a 1-speed Pump output. X-P231 X-P332 PN 53681 PN 55137 P/N 22909 REV B P/N 22909 REV B T30A 480V T30A 480V X-P231 PN 53681 X-P332 PN 55137 RED/WHT BLK/12VAC-A Balboa PN 22051_A 2006 X-TB PN 55344 Page 8 EL1500 - 40916_01_C... -
Page 9: Software Configuration Settings
Software Configuration Settings OEM Setting (Green circle) Program Filter Cycles by Duration n = Start and stop times; for time capable panels. Y = Duration; for non-time capable panels = 1 DIP Switch Pump 1 in Filter (w/Circ Pump) Y (This feature is used in Circ Mode only.) Allows Pump 1 Low to operate in Filter Cycles to add extra filtration. - Page 10 Software Configuration Settings Continued Pump 1 Speeds 1 = 1 speed; 2 = 2 speed; = 1 DIP Switch Pump 2 Speeds 0 = Disabled; 1 = On/Off on main board; 2 = 2 speed on X-P332 Board; E = On/Off on X-P or X-P231; = 2 DIP Switch Pump 3 Speeds 0 = Disabled;...
- Page 11 Software Configuration Settings Continued Option 1* n = Disabled; Y/P = Enabled on J17; = 2 DIP Switch Option 3* n = Disabled; Y/P = Enabled on pin 1 of X-P332 board; = 2 DIP Switch Option 4* n = Disabled; Y/P = Enabled on pin 2 of X-P332 board; = 2 DIP Switch *Note: Options 3-4: Y = On/Off w/ no timeout (toggle) mode;...
- Page 12 Software Configuration Settings Continued Aux Button 1 (Bank A) 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 Aux Button 2 (Bank A) 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 Aux Button 3 (Bank A) 1 2 3 4 5 6 g F E o t d P n A U r O H 9 L 8 7...
- Page 13 Software Configuration Settings Continued Lowest Set Temperature* 8 = 80˚F/26.0˚C; 7 = 70˚F/21.0˚C *Setting LS at 7 and Fr at 5 will cause a CFE error. Default Set Temperature** 5 = 95˚F/35.0˚C; 6 = 96˚F/35.5˚C; 7 = 97˚F/36.0˚C; 8 = 98˚F/36.5˚C; 9 = 99˚F/37.0˚C; 0 = 100˚F/38.0˚C; 1 = 101˚F/38.5˚C;...
- Page 14 Software Configuration Settings Continued Light Cycle Programming n = Disabled; Y = Enabled Filter 1 Start Hour (Set 1)* 0 1 2 3 4 5 6 7 8 9 A b C d E F g H J L n o P r Filter 1 Duration (Set 1)* 0 1 2 3 4 5 6 7 8 9 A b C d E F g H J L n o P r Filter 2 Start Hour (Set 1)*...
- Page 15 Software Configuration Settings Continued Pump Purge Duration 3 = 30 seconds; 1 - 5 = 1 - 5 minutes; t = 10 minutes Blower Purge Duration 5 = 5 seconds; 1 = 10 seconds; 2 = 20 seconds; 3 = 30 seconds; 4 = 45 seconds;...
- Page 16 Software Configuration Settings Continued Remote Button 1 (Set A) 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 Remote Button 2 (Set A) 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 Remote Button 3 (Set A) 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 Remote Button 4 (Set A)
- Page 17 Software Configuration Settings Continued ML90x Custom Button 1 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 ML90x Custom Button 2 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 ML90x Custom Button 3 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 ML90x Custom Button 4...
- Page 18 Software Configuration Settings Continued ML70x Custom Button 1 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 ML70x Custom Button 2 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 ML70x Custom Button 3 2 3 4 5 6 b g F E o t d P n A U r O H 9 L 8 7 ML70x Custom Button 4...
- Page 19 Software Configuration Settings Continued ML40x/ML2xx Custom Button 1 2 3 4 5 6 b g F E o t d P n A r O H 9 L 8 7 ML40x/ML2xx Custom Button 2 2 3 4 5 6 b g F E o t d P n A r O H 9 L 8 7 ML40x/ML2xx Custom Button 3 2 3 4 5 6 b g F E o t d P n A...
- Page 20 The voltage to the ozone connector can be changed in the field if required. W2 or W7 just need to be set for the required voltage. Balboa Ozone Generator: If the board is set up to operate a 120V ozone generator, the connector on the ozone generator is likely to be configured correctly, but should be compared to the illustration below.
-
Page 21: Panel Configurations
Panel Configurations Images not shown to scale. Note: Connects to Main Panel terminal J70 or J71 Real-time clock board MUST be installed to save time-of-day if 102 º F power is shut off to the spa. MLM990S or MLM990H (MLM990H requires a RF transceiver) Jets 1 Jets 1 Jets 1...
