Ø52 mm: 21-1950-5, 21-1951-5, 21-1952-5 & 21-1953-5
Ø83 mm: 21-1970-5, 21-1971-5, 21-1972-5 & 21-1973-5
Specifications
Rated voltage:
230V
Rated power:
Ø52 = 1W / Ø83 = 1.6W
Installation depth:
Maximum 1m
Expected lifetime:
50.000 hours
21-19x0-5:
Slimlite with cool white LED light
21-19x1-5:
Slimlite with colour changing LED light
21-19x2-5:
Slimlite with warm white LED light
21-19x3-5:
Slimlite with bright blue LED light
Important
The Slimlite requires external potentiel equalization.
Installation
1.
Drill a 42 or 64 mm hole in the tub for the LED bulb.
2.
Fix the small silicone gasket (4) on the body (1) and add, if necessary, silicone. Pass the lead, trafo
& body through the hole from the inside of the tub.
3.
Place the foam gasket (3) (from outside) around the body.
4.
Fix the nut (2) from outsideside and fasten it tightly on the body.
5.
Carry out external potential equalization via the connector (5) on lightbody.
6.
Connect the cable to a 230V current supply.

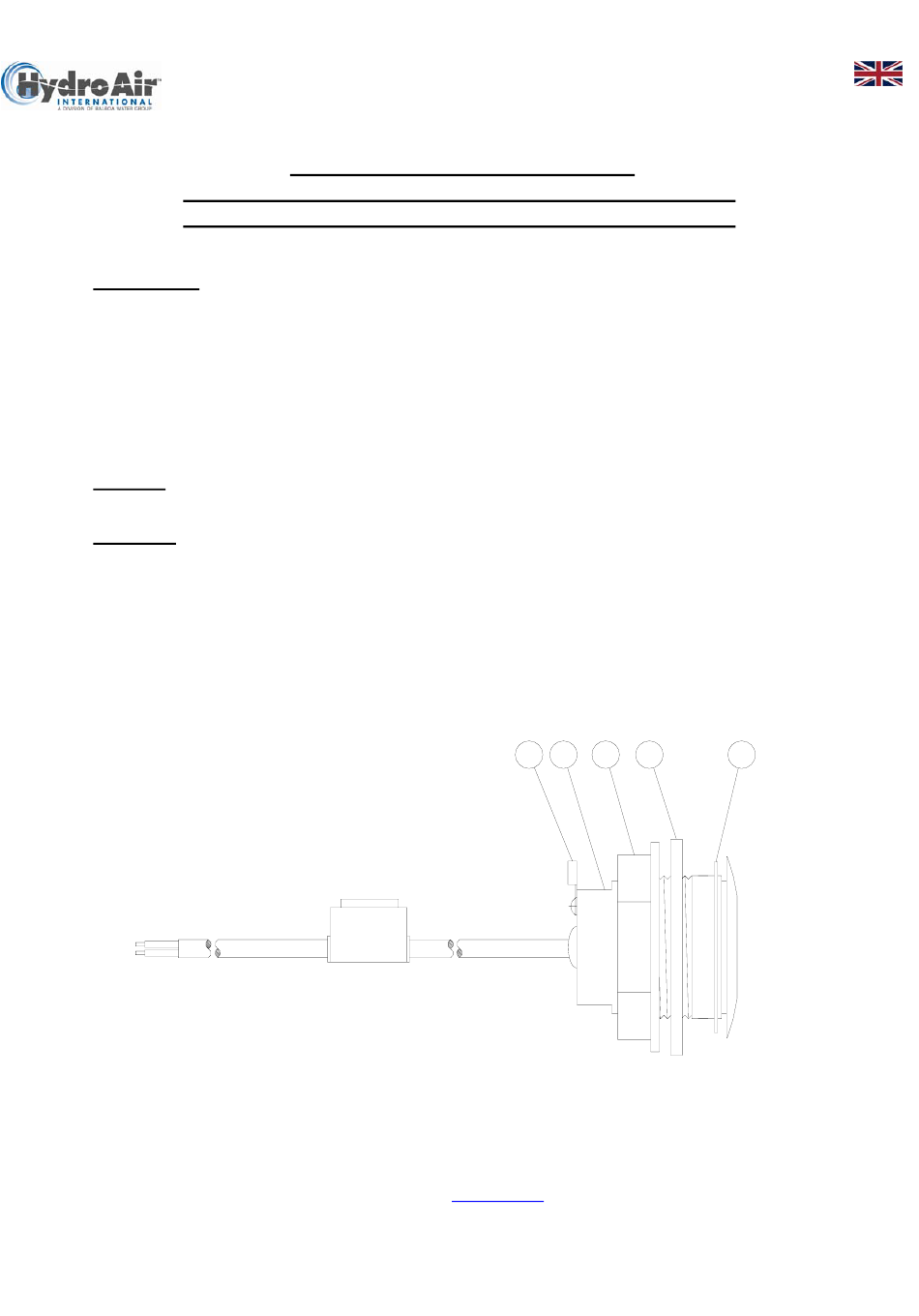

SLIMLITE INCL. TRANSFORMER
49-21-195x-5 & 21-197x-5 -
www.hydroair.dk
5
1
2
3
– March 2009
4
