SLIMLITE COLOUR CHANGE/STOP INCL. TRANSFORMER
Ø52 mm: 21-1954-5 & Ø83 mm: 21-1974-5
Specifications
Rated voltage:
230V
Rated power:
Ø52 = 1W / Ø83 = 1.6W
Installation depth:
Maximum 1m
Expected lifetime:
50.000 hours
21-19x4-5:
Slimlite – colour change/stop LED light incl. connector and standard touch.
Important
The Slimlite requires external potentiel equalization.

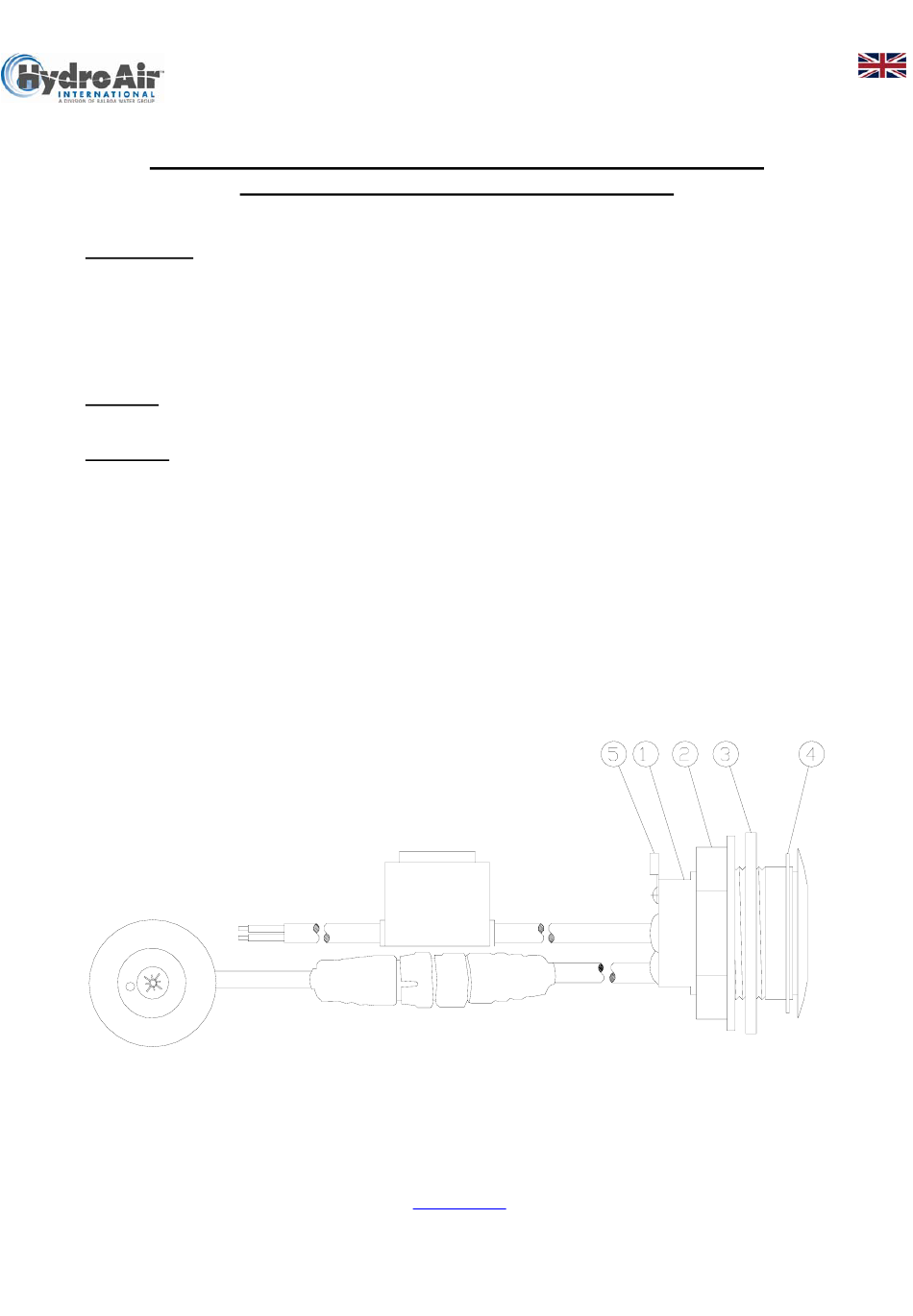

Installation
1.
Drill a 42 or 64 mm hole in the tub for the LED bulb.
2.
Fix the small silicone gasket (4) on the body (1) and add, if necessary, silicone. Pass the lead,
transformer & body through the hole from the inside of the tub.
3.
Place the foam gasket (3) (from outside) around the body.
4.
Fix the nut (2) from outside and fasten it tightly on the body.
5.
Drill a 32 mm hole in the bathtub rim for the touch. Place it in position and hand tighten the nut from
the backside of the tub. The touch can be mounted without nut if removal from front side is wished.
In this case, use a little silicone to hold it in position and place the touch in the hole.
6.
Connect the signal cable from the LED bulb and the cable from the touch with the two black IPX5
connectors.
7.
Carry out external potential equalization via the connector (5) on lightbody.
8.
Connect the cable to a 230V power supply.
49-21-19x4-5 -
www.hydroair.dk
– March 2009
