- Page 1 Industrial X-Ray Chiller Manual XRCA-5001-OA For OEM COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 1 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001 Printed from SAP on 7.09.2015...
- Page 2 Update Chapter 2+3 30/07/2014 R. Moser Outline drawing added 07/09/2015 M. Schmid Change Shell Daial COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 2 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001 Printed from SAP on 7.09.2015...
- Page 3 Never carry out any work at the refrigeration cycle, this work must be car- • ried out at manufacturer site! COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 3 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001 Printed from SAP on 7.09.2015...
-
Page 4: Table Of Contents
Outline drawing ..................12 Circuit Diagrams ..................13 Electrical diagram ..........................13 Block diagram ............................14 Declaration of conformity ................15 COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 4 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001... -
Page 5: Description

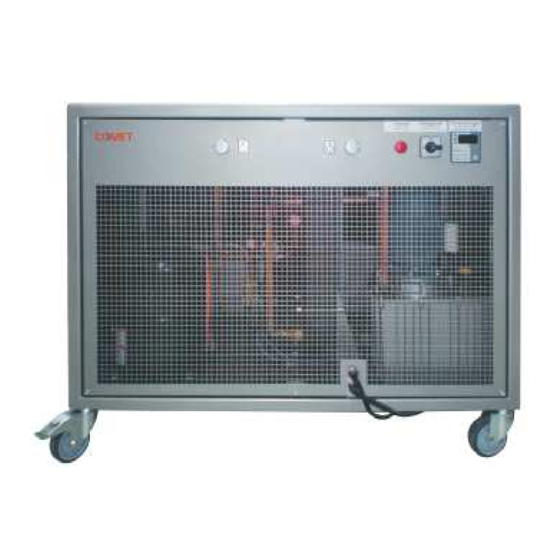

1 Description The cooling unit XRCA-5001-OA is designed to provide a continues flow of cooling fluid at a constant temperature. Oil circulates between the cooling unit and the heat source. The oil is chilled by an air-cooled refrigeration system (refrigerant R 134A).The cooling unit has a main switch to start the refrigeration system. -
Page 6: Technical Data
Anti freezing (T2): + 5°C Temperature MAX (T3): + 50°C Flow switch open: < 22 l/min COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 6 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001 Printed from SAP on 7.09.2015... -
Page 7: Performance Chart
3 Performance chart COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 7 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001 Printed from SAP on 7.09.2015... -
Page 8: Setting To Work
• applied plastic cap mount cover • COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 8 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001 Printed from SAP on 7.09.2015... -
Page 9: Settings
4°C. If temperature drops below an- ti freezing temperature (+5 °C) refrigerating unit runs only if temperature exceeds +9 °C. COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 9 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001 Printed from SAP on 7.09.2015... - Page 10 (if there is no changing of parameters, the temperature controller returns automatically into run-mode after 45 seconds). COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 10 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001 Printed from SAP on 7.09.2015...
-
Page 11: Maintenance
Remove dust by forcing it out in the opposite direction from which it entered. If com- pressed air is available, direct the air against the inside of the condenser. Check oil level regularly and refill if necessary. COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 11 of 15 Tel. -
Page 12: Outline Drawing
7 Outline drawing COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 12 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001 Printed from SAP on 7.09.2015... -
Page 13: Circuit Diagrams
8 Circuit Diagrams 8.1 Electrical diagram COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 13 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001 Printed from SAP on 7.09.2015... -
Page 14: Block Diagram
8.2 Block diagram COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 14 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001 Printed from SAP on 7.09.2015... -
Page 15: Declaration Of Conformity
9 Declaration of conformity COMET AG Herrengasse 10, CH-3175 Flamatt XRCA-5001-OA, Doc.-No. 50005555 Page 15 of 15 Tel. +41 31 744 9000, www.comet-xray.com SAP-DocNr: 50005555_001 Printed from SAP on 7.09.2015...
