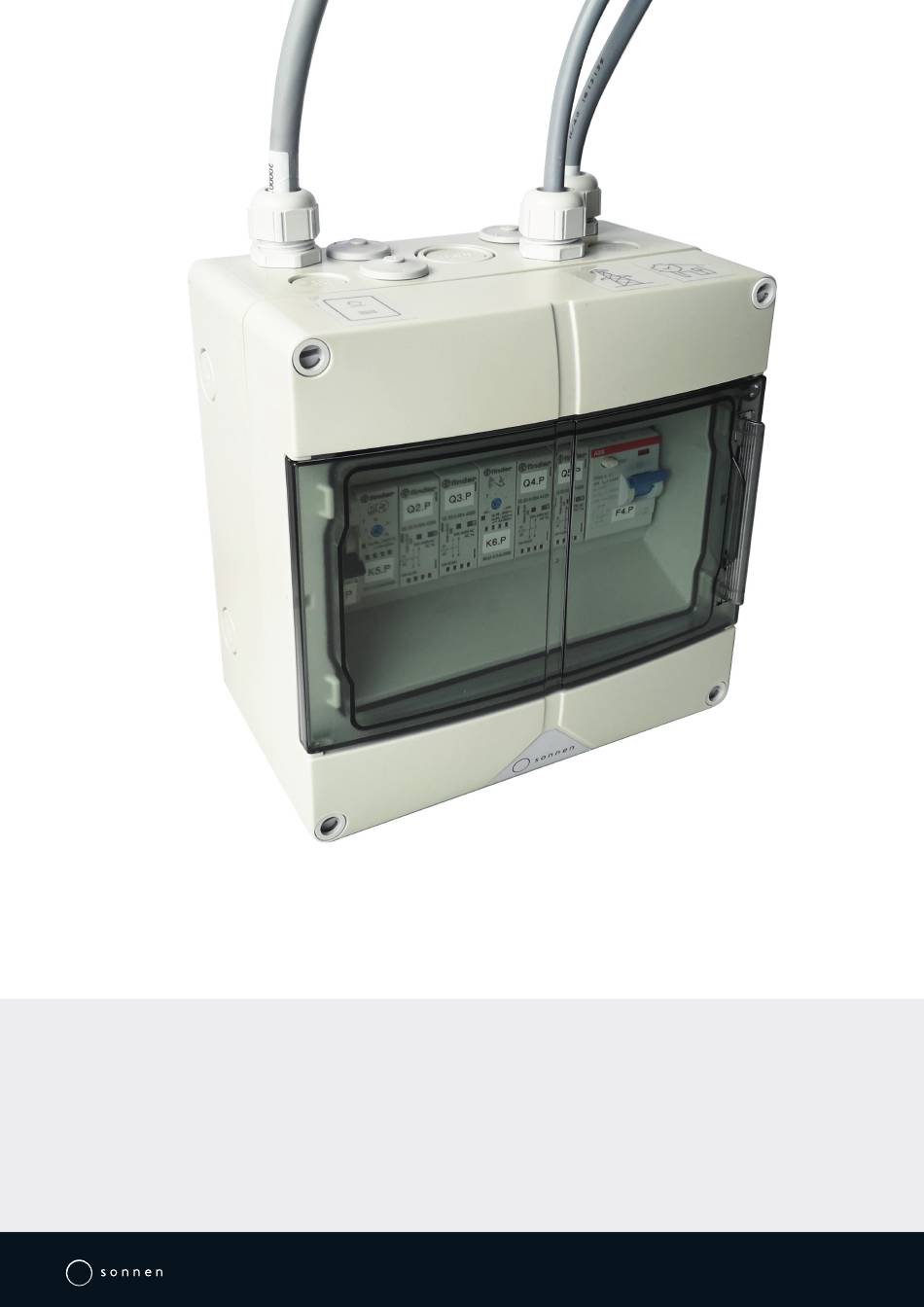

- Page 1 Operating instructions | for operators sonnenProtect 2500 for sonnenBatterie hybrid 9.53 KD-536 • Part no. 1000051 • Version 02 info@sonnen.de • sonnen.de...
- Page 2 „ Retain this document for reference purposes. Publisher sonnen GmbH Am Riedbach 1 D-87499 Wildpoldsried Service number +61 13 7666 Email info@sonnen.com.au Document Document number Part number 1000051 Version Valid for AU, NZ Publication date 05/02/2021 9007199366748683 Operating instructions sonnenProtect 2500...
-
Page 3: Table Of Contents
Table of contents Table of contents 1 Information about this document...................... 4 Target group of this document ...................... 4 Designations in this document ...................... 4 1.3 Explanation of symbols......................... 4 2 Safety.................................. 5 Intended use............................. 5 2.2 Requirements for the electrician...................... 5 2.3 Operating the product ......................... -
Page 4: Information About This Document
1 | Information about this document 1 Information about this document This document describes the operation of the sonnenProtect 2500 in connection with a sonnenBatterie hybrid 9.53 storage system. „ Read this document in its entirety. „ Keep this document in the vicinity of the sonnenBatterie. -
Page 5: Safety

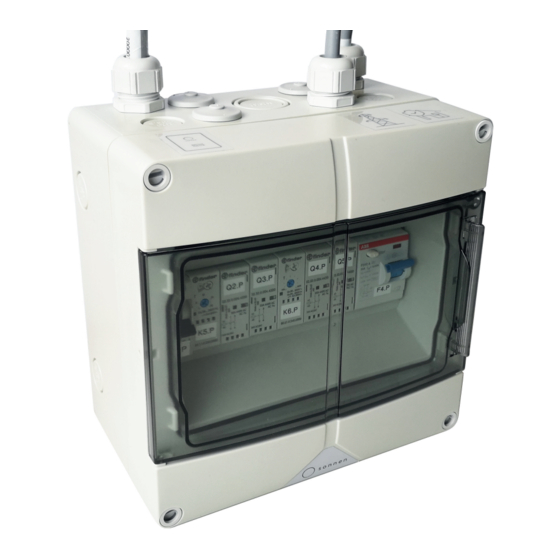

The sonnenProtect 2500 is an backup power unit designed to supplement the sonnenBatterie hybrid 9.53. The sonnenProtect- in conjunction with the appropriate stor- age system of the sonnen GmbH - serves to supply power in the event of a power failure. Any other use is considered improper use. -
Page 6: Product Modifications Or Changes To The Product Environment
As the sonnenProtect is connected to the inverter of the stor- age system, this means that the voltage from the inverter also flows into the 5 min sonnenProtect. Therefore: „ Do not open the sonnenProtect. „ Do not remove any plastic covers. 6 / 20 Operating instructions sonnenProtect 2500... -
Page 7: Product Description
Product description | 3 3 Product description 3.1 Technical data sonnenProtect 2500 System data Nominal power 2,500 W Maximum power (30 sec.) 3,000 W Output voltage 230 VAC +/- 10 % Nominal frequency 50 Hz Power factor range 0 capacitive ... 0 inductive Max. -
Page 8: System Components Of The Sonnenprotect
The following information is specified on the type plate: • Item designation • Item number • Technical data A duplicate of the type plate for the sonnenProtect 2500 must be affixed by the installer to the storage system. 8 / 20 Operating instructions sonnenProtect 2500... -
Page 9: Symbols On The Outside Of The Sonnenprotect
Product description | 3 3.4 Symbols on the outside of the sonnenProtect Symbol Meaning Warning: electrical voltage. Warning: electrical voltage. Wait five minutes after switching off (ca- pacitor de-energising time). 5 min CE mark. The product meets the requirements of the applicable EU Directives. -
Page 10: Operation
(1 - 4) are connected to the public electricity grid (9). All con- sumers in the house are supplied with electrical power. The storage system controls - as described in the product documentation of the storage system - the energy flows in the building. 10 / 20 Operating instructions sonnenProtect 2500... -
Page 11: Backup Operation - Grid Outage
L1, L2 or or L3 (1 - 3) will not be supplied with electrical power. The switchover from grid to backup operation is signaled by the sonnen Eclipse (light ring) on the storage system. The color of the sonnen Eclipse changes from white (normal opera- tion) to green (backup operation). -
Page 12: Backup Operation - Overload Behaviour
2. The overload remains: The storage system tries to resume backup operation twice. If it is switched off a third time, the backup operation remains disabled until the grid outage is over. The eclipse will continue to glow orange. 12 / 20 Operating instructions sonnenProtect 2500... -
Page 13: Setting The Backup Buffer
ü The sonnenProtect was set up by the installer using the commissioning assistant 2. Proceed as follows to access the storage system web interface: „ Enter the following address into your browser’s address line: https://find-my.sonnen-batterie.com The following window appears: 12345 123.456.78.99... - Page 14 4 | Operation 14 / 20 Operating instructions sonnenProtect 2500...
-
Page 15: Switching Off The Sonnenprotect
Switching off the sonnenProtect | 5 5 Switching off the sonnenProtect To switch off the sonnenProtect manually, the following procedure can be carried out. „ Disconnect the power supply to the storage system as described in the relevant product documentation. After switching off, the consumers connected to the backup circuit(s) can no longer be supplied with electrical energy from the battery of the storage system. -
Page 16: Maintenance And Cleaning
„ Do not use water jets. „ Carefully clean the outside of the sonnenProtect with a clean, moist cloth. For tougher dirt, use a small amount of household dishwashing detergent on a moist cloth. 16 / 20 Operating instructions sonnenProtect 2500... -
Page 17: Uninstallation And Disposal
Uninstallation and disposal | 7 7 Uninstallation and disposal 7.1 Uninstallation DANGER Improper uninstallation of the sonnenProtect Danger to life due to electrocution! „ The sonnenProtect must only be uninstalled by authorised electricians. 7.2 Disposal The sonnenProtect must not be disposed of as do- mestic waste! „... -
Page 18: Troubleshooting
Only connect electrical consumers to the backup circuit when they have a power consumption that does not exceed the nominal power or (when switching on) the maximum power of the sonnenProtect. 18 / 20 Operating instructions sonnenProtect 2500... - Page 19 Troubleshooting | 8 Fault Possible causes Rectification Backup operation (grid outage) - Backup operation stops Backup operation stops. The mini- The batteries of the storage system If the PV system generates electrical ature circuit breaker and the RCD have discharged so much that further power, the backup operation will continue in the sonnenProtect have not discharging would lead to a deep dis-...
- Page 20 GmbH Am Riedbach 1 D-87499 Wildpoldsried...
