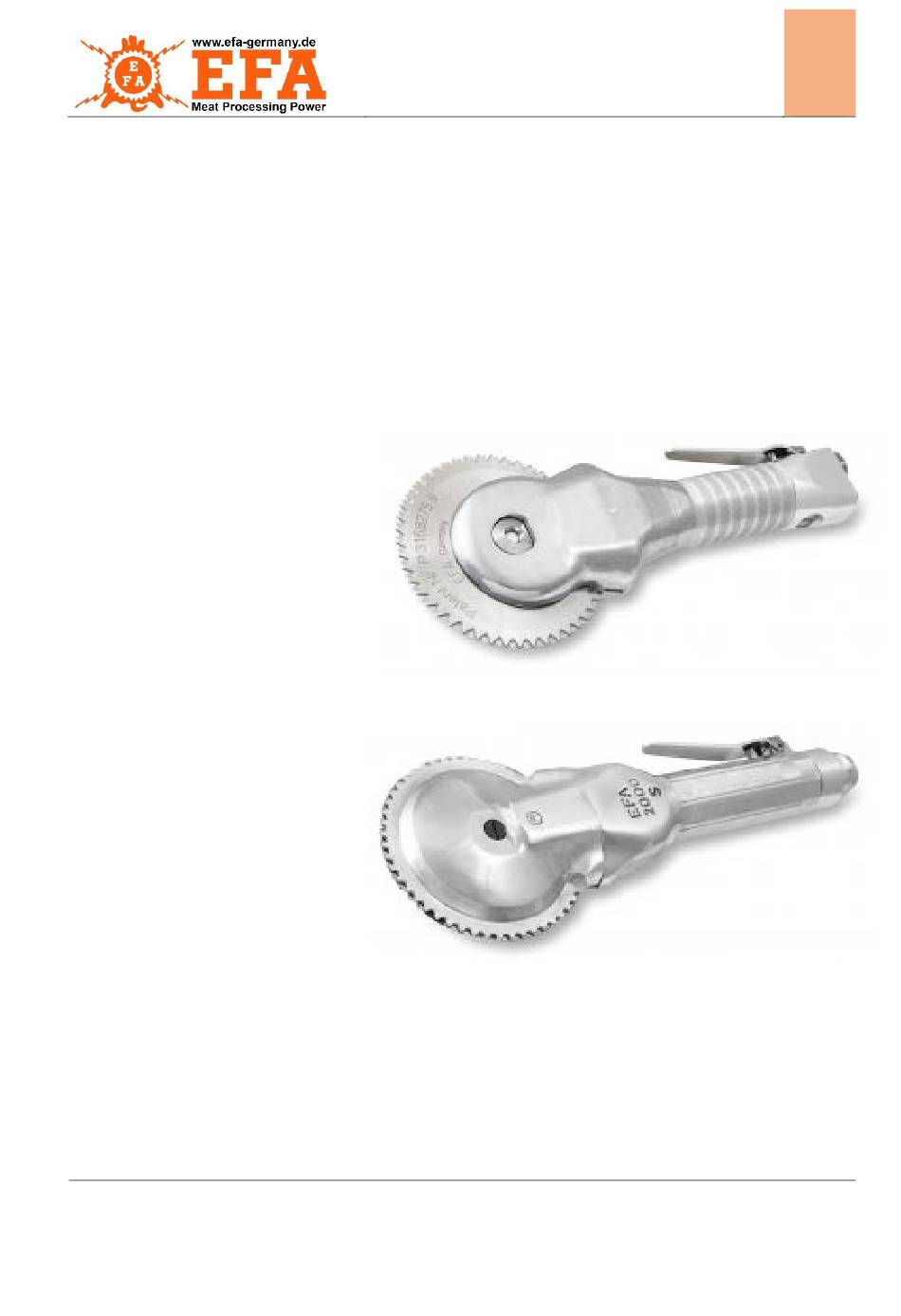

- Page 1 EFA dehider Original operating instructions EFA dehider EFA 620 EFA 2000 Rev. 00 – 10.2020 Schmid & Wezel GmbH www.efa-germany.com...
- Page 2 EFA dehider Original operating instructions Original operating instructions Schmid & Wezel GmbH. All rights reserved. Printed in Germany. These original operating instructions must not be reproduced in whole or in part, used for competitive purposes without our authorisation, or made available to third parties without our consent.
-
Page 3: Table Of Contents
EFA dehider Original operating instructions Table of contents 1 Introduction and general information ______________________________________________________ 2 1.1 Information on the operating instructions ______________________________________________________ 2 1.2 User group _____________________________________________________________________________ 2 1.3 Scope of supply __________________________________________________________________________ 3 1.4 Intended use ____________________________________________________________________________ 3 1.5 Claims for defects, liability, warranty __________________________________________________________ 4 2 Safety ______________________________________________________________________________ 6 2.1 Safety instructions ________________________________________________________________________ 6... -
Page 4: Introduction And General Information
Service department. User group Only instructed and/or trained personnel over 16 years of age are allowed to set up or operate the EFA pneumatically operated dehider. Furthermore, it is imperative that everyone working with and on the machine has read and understood the operating instructions, and observes them. -
Page 5: Scope Of Supply

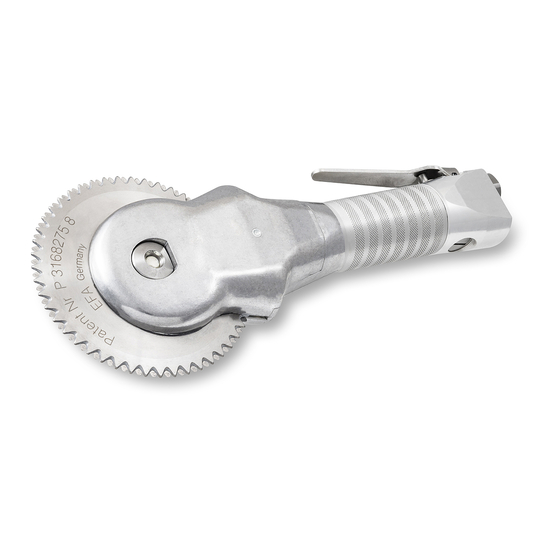

Areas of application The pneumatically operated dehider EFA 620 (with a pair of blades moving in opposite directions) and EFA 2000 (with single blade moving in a circular path) are used for dehiding cattle, horses, sheep and pigs in non-frozen condition. -
Page 6: Claims For Defects, Liability, Warranty
There is a risk of injury especially in the uncovered area of the sharp pair of blades moving in opposite directions (EFA 620) or the single blade moving in a circular path (EFA 2000). Remain focused and act with caution when working. Wear personal protective equipment. - Page 7 EFA dehider Original operating instructions Technical changes The manufacturer Schmid & Wezel GmbH reserves the right to make technical changes within the scope of improving the usage properties and further development without prior notice. Figures are for basic understanding and could differ from the actual design of the system.
-
Page 8: Safety
EFA dehider Original operating instructions Safety Everyone who is involved in the installation, start-up, operation, set-up, equipping and maintenance of the machine in the operating company must have read and understood the operating instructions, in particular the "Safety" chapter. Safe operation of the machine is only guaranteed if: ... -
Page 9: Other Safety Signs
EFA dehider Original operating instructions 2.1.1 Other safety signs Symbol Meaning Mark of conformity! The machine complies with the applicable regulations of the EC Machinery Directive Recyclable materials! Ensure that the materials are recycled properly! 2.1.2 Warning sign Warnings and symbols used in the operating instructions and documentation are intended to help you to recognise and assess the dangers more easily. -
Page 10: Prohibition Sign
Keep other persons away from your workplace. Focus on the job in hand when working. Do not use the EFA pneumatically operated dehider when you are tired and/or unfocused. Store the dehider in a safe manner. Store unused devices in a dry place. -
Page 11: Technical Description
α K 0.07 K 0.05 vibration characteristic value Weight Tab. 3.2 – EFA pneumatically operated dehider overview EFA dehider Application Application EFA 620 100260040 Round blade dehider for cattle, horses, sheep and pigs. The pneumatically operated dehider is used for dehiding cattle, horses, sheep, pigs, etc.;... -
Page 12: Dimensions
Original operating instructions Dimensions The following figures give you an overview of the dimensions of the machine. Pneumatically operated dehider EFA 620 – part no. 100260040 Pneumatically operated dehider EFA 2000 – part no. 100300001 Rev.00 – 10.2020 10 of 24... -
Page 13: Machine Marking
Machine marking The machine marking is affixed to the machine and contains information on the machine type and part number. The following figure shows an example of the machine marking for the dehider EFA 620. Rev.00 – 10.2020 11 of 24... -
Page 14: Transport And Storage
EFA dehider Original operating instructions Transport and storage The machine has been tested and carefully checked in our factory before shipment. The test ensures that the machine is working properly. Despite all care taken, there is a possibility that the machine could be damaged during transport. -
Page 15: Connection And Start-Up
5.1.2 Connecting the pneumatically operated dehider The pneumatically operated dehiders are delivered from the factory ready for use. EFA 620 (see Fig. 5.1) Connect the dehider (5) to an oil mist lubricator (1) (special accessory) with an air hose (6). -
Page 16: Handling
EFA dehider Original operating instructions Handling Switch operation Important! The dehider must not be used before the operator has read these operating instructions and the device has been connected correctly! The pneumatically operated dehider is equipped with a valve lever (1) for switching the compressed air flow, see Fig. -
Page 17: Assembly
Danger! Never reach into the cutting edge area of the moving blades, otherwise you could cut off limbs! Danger! Only use genuine EFA blades! Blunt, worn blades must be replaced. Fig. 7.1 – Removing the EFA 620 (see Fig. 7.1 and Fig. 7.2) - Page 18 Fig. 7.4 – Sharpening the blade Important! The countersunk screw (4) is secured with Loctite and should only be loosened by specialist personnel from S&W! Detail -2- Detail -1- Fig. 7.5 – Checking the blade guide (EFA 2000) Rev.00 – 10.2020 16 of 24...
-
Page 19: Cleaning And Lubrication
During daily cleaning, please check whether parts of the pneumatically operated dehider are worn out. Timely renewal of worn parts saves costs! Daily cleaning after completion of the slaughtering Trouble-free continuous operation can only be guaranteed if the EFA dehider is kept perfectly and hygienically clean at all times. Also observe the safety instructions in the product data sheets of the cleaning agents. - Page 20 (9), the dehider blades and the corrugated spring (10). 7) The assembly is carried out in reverse order. 8) After assembly, press EFA special grease into the three grease nipples (11, 12 and 13) with 2 strokes of a grease gun.
-
Page 21: Maintenance
EFA dehider Original operating instructions Maintenance Important! All work must be carried out by qualified instructed specialist personnel only. During operation, it is possible that the function can be disrupted, but in most cases, troubleshooting is relatively easy. The malfunctions are listed in Table 9.1 with possible causes and resulting remedies. -
Page 22: 10 Maintenance And Repair
Only use genuine spare parts. The EFA Service department of Schmid & Wezel GmbH is at your disposal for repairs. If your equipment needs to be repaired, please contact the nearest authorised service centre or our head office. ... -
Page 23: 11 Waste Disposal - Recycling
EFA dehider Original operating instructions 11 Waste disposal – recycling The machine must be disposed of in accordance with the valid legal regulations of the respective countries. Disassembly and disposal 11.1 Old and used machines contain reusable materials that can be recycled. - Page 24 EFA dehider Original operating instructions Schmid & Wezel GmbH Maschinenfabrik Maybachstrasse 2 75433 Maulbronn / Germany +49 7043 1020 +49 7043 10278 ＠ efa-verkauf@efa-germany.de Internet: http://www.efa-germany.de...
