Haden 198204 Instruction Manual

Tabletop oven
Hide thumbs
Table of Contents

Advertisement

Quick Links

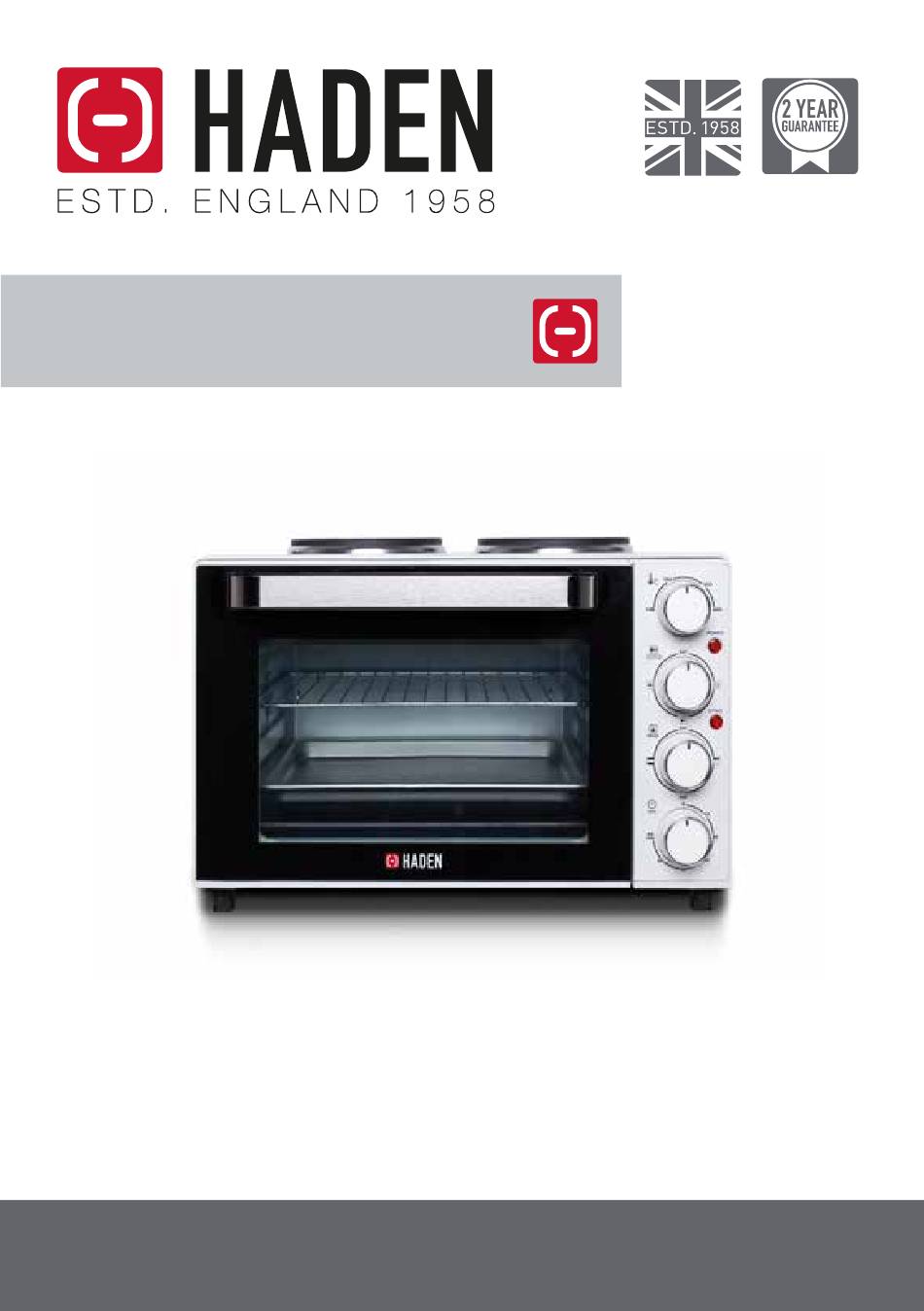

INSTRUCTION MANUAL
PRODUCT CODE: 198204
TABLETOP OVEN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 198204 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haden 198204

Summary of Contents for Haden 198204

  • Page 1 INSTRUCTION MANUAL PRODUCT CODE: 198204 TABLETOP OVEN...
  • Page 2 www.haden.com...

  • Page 4: Safety Information

    SAFETY INFORMATION Read these instructions carefully and completely before using your appliance and keep in a safe convenient place for reference when necessary. GENERAL SAFETY • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Page 5 ELECTRICAL SAFETY (continued) • Only connect the product to a grounded outlet/line with the voltage and protection as specified in the “Technical specifications”. Have the grounding installation made by a qualified electrician while using the product with or without a transformer.

  • Page 6: Product Safety

    PRODUCT SAFETY • WARNING: The appliance and its accessible parts become hot d uring use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. • Never use the product when your judgment or coordination is i mpaired by the use of alcohol and/or drugs.
  • Page 7 • Do not use harsh abrasive cleaners or sharp metal scrapers to c lean the oven door glass since they can scratch the surface, which may result in shattering of the glass. • Placing the wire shelf and baking tray onto the rails properly. It is important to place the wire shelf and/or tray onto the rack properly.

  • Page 8: Intended Use

    • WARNING: Vapour pressure that build up due to the moisture on the hob surface or at the bottom of the pot can cause the pot to move. Therefore, make sure that the oven surface and bottom of the pots are always dry. Prevention against possible fire risk! •...

  • Page 9: Getting To Know Your Appliance

    GETTING TO KNOW YOUR APPLIANCE Lorem ipsum Control Panel Wire rack Baking tray Glass Door Door Handle Heating elements Shelf positions Hotplate 1 – 600W Hotplate 2 – 600W...

  • Page 10: Control Panel

    CONTROL PANEL Temperature control Power Indicator light Hotplate control Hotplate Indicator light Oven function control Timer control...

  • Page 11: Before First Use

    BEFORE FIRST USE Unpack the oven removing all packaging materials. Wipe all surfaces with a soft damp cloth and dry thoroughtly. Wash the accesories in warm, soapy water, then rinse and dry. Before placing back in the oven. Do not immerse the oven in water or any other liquid. Do not use aggressive detergents, cleaning powders/creams or any sharp objects durning cleaning.
  • Page 12 OVEN & HOB CONTROLS Oven Function Symbol Meaning Suggested Use Control No Heat Baking cakes, pizzas Lower heating element activated Upper heating element Toasting, grilling activated Upper and Lower heating Roasting, general oven elements activated cooking Hob Function Symbol Meaning Suggested Use Control No Heat...

  • Page 13: Using The Oven

    USING THE OVEN Prepare the food that is going to be cooked Select the desired oven function - upper or lower heating elements (or both) using the oven control. Turn the temperature dial to the required heat setting for the food to be cooked.

  • Page 14: Using The Hotplates

    Once the cooking is complete, turn the oven control to the ‘OFF’ postion. If the timer is still running allow it finish, do not force it to ‘0’. Using oven gloves, open the oven door fully and remove the baking tray or wire rack using the baking tray handle.

  • Page 15: Cleaning And Maintenance

    CLEANING AND MAINTENANCE WARNING: Ensure to unplug the oven and allow it to cool before cleaning. Wipe up all spillages, to avoid discolouring of the surfaces and corroding the hotplates. Hand wash the tray, rack, and handle in warm soapy water. Clean the glass with a proprietary glass cleaner.

  • Page 16: Waste Electrical Recycling

    EARTHING IMPORTANT – This is a Class I Electrical Product. It requires an Earth connection. WARNING! ELECTRIC SHOCK HAZARD. DO NOT DISASSEMBLE THIS APPLIANCE. TOUCHING SOME OF THE INTERNAL COMPONENTS CAN BE EXTREMELY HAZARDOUS. This appliance must be earthed. Consult a qualified electrician or service engineer if the earthing instructions are not completely understood or doubts exist as to whether the appliance is properly earthed.
  • Page 17 Customer misuse, modifications or adjustments. • Products with unreadable or removed serial numbers. Haden disclaims any liability for incidental or consequential loss or damages. In the event of a problem: • Please refer to the troubleshooting tips section within your user guide for help and guidance.

  • Page 18: Technical Specification

    TECHNICAL SPECIFICATION Product 198204 Rated Voltage 220 - 240V Frequency 50-60Hz Oven Power 1400W Hotplates Power 600W / 600W Capacity 25 L Protection Class I Please note these figures are for reference and may differ slightly on the actual product...
