DESCRIPTION

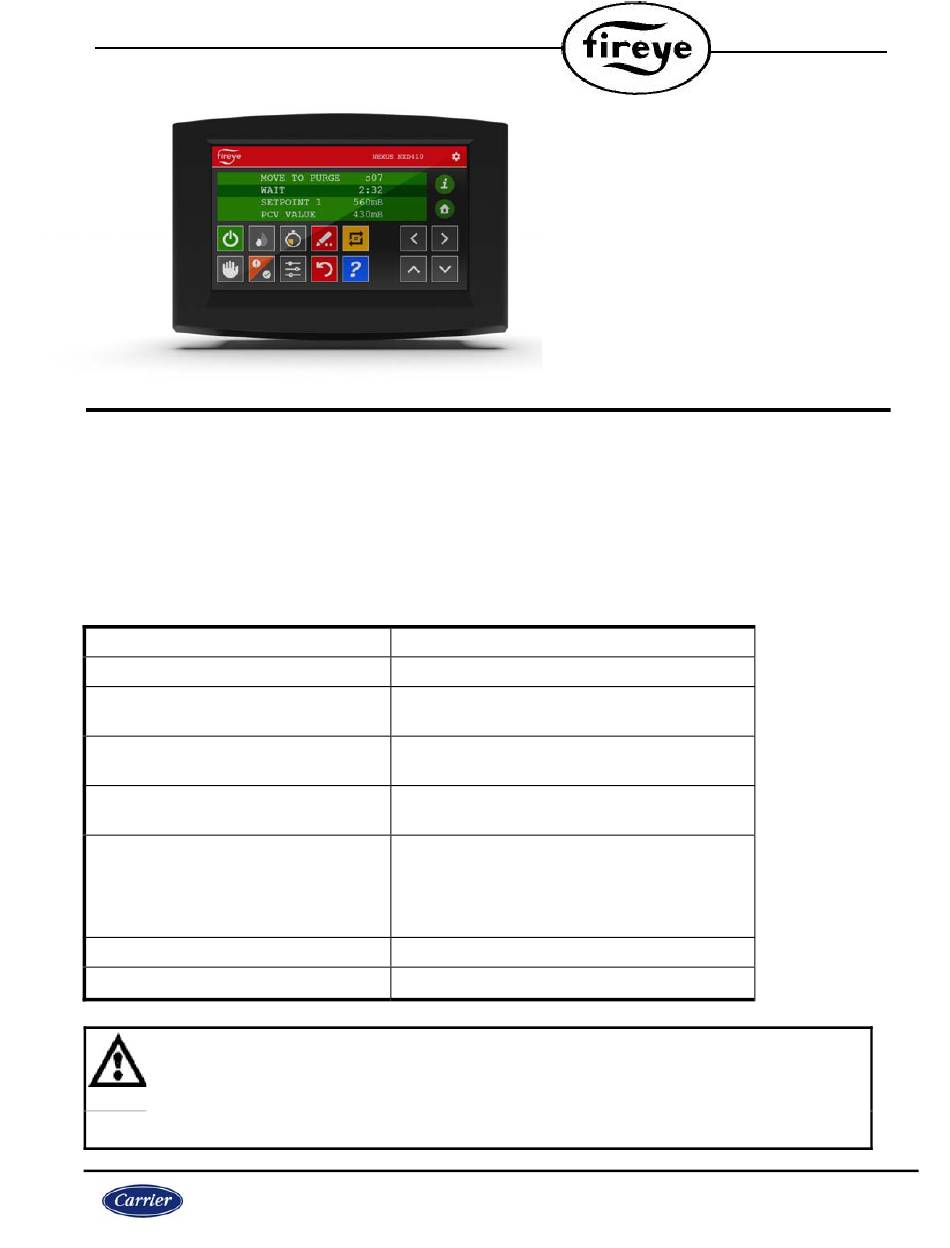

The NXD410TS Touch Screen User Interface provides the means to setup, monitor and display all information
from the PPC4000 and NXF4000 Control and connected accessories. The NXD410TS is a 4.3" widescreen TFT
color touchscreen. The NXD410TS is panel mounted and connects directly to the PPC4000 and NXF4000 using
cable part number 59-561 available by the foot.
Refer to Bulletin PPC-4001 for a complete description of the PPC4000 control system or for NXF4000 See
Bulletin NXF-4001.
SPECIFICATIONS
Supply Voltage:
Power
Consumption:
Temperature Rating:
Protection Category:
Unit Dimensions:
Interface Method:
Shipping Weight:
NOTE: Proper operation of the NXD410TS Touchscreen display requires a PPC4000 with an
Engineering code of 9 or greater or a PPC4000 running main firmware revision v3.7 or greater.
Due to limitations of Modbus RTU, only one master can exist on the Modbus interface. The
NXTSD4xx Touchscreen display is considered the master of the bus and the Modbus
system should be configured such that the Touchscreen display is the only device speaking
to the PPC4000(s) on the bus.
NXD410TS
24 Vdc (18 to 30 Vdc)
0.60A at 24Vdc (max.)
32°F to 122°F (0°C to +50°C)
Indoors use only, IP40
Faceplate LxH 129x88 mm
(5.1")x(3.45")
Cutout AxB 106.5x73.025 mm
(4.19")x(2.875")
allow 1.725" (43.8mm) depth clearance
RS485, 57600 Baud
Approx. 0.9 lbs. (0.41 Kg)
December 16, 2019
NXD410TS
TOUCHSCREEN
INSTALLATION GUIDE
USED WITH PPC4000 and
NXF4000 FUEL AIR RATIO
CONTROLLER
NXDTS-4410
1
Advertisement
Related Manuals for Fireye NXD410TS
Summary of Contents for Fireye NXD410TS
- Page 1 CONTROLLER DESCRIPTION The NXD410TS Touch Screen User Interface provides the means to setup, monitor and display all information from the PPC4000 and NXF4000 Control and connected accessories. The NXD410TS is a 4.3” widescreen TFT color touchscreen. The NXD410TS is panel mounted and connects directly to the PPC4000 and NXF4000 using cable part number 59-561 available by the foot.
-
Page 2: Installation
Directive 2011/65/EC. (RoHS compliant) In compliance with the above regulations the products are CE marked. INSTALLATION The NXD410TS is a panel mounted devices. Use the panel cutout template shown below. Note: Mounting hardware included. (2X M4X25mm studs, 2X M4 Thumb nuts) FIGURE 1. - Page 3 GND Screw CHASSIS Drain wire GND (Shield) Note: Ethernet, USB B and USB A ports are not active. Note: All connection colors represent Fireye cable part number 59-561 and is available by the foot. FIGURE 2. Power Ethernet USB B USB A Serial Port...
-
Page 4: Display Configuration
DISPLAY CONFIGURATION The following information outlines button functions of the NXD410TS touch Screen display. 1. Display Configuration Fundamentals. The NXD410TS display allows the installer or technician to configure/maintain operation of PPC4000/ NXF4000 controller within the associated burner environment. Please refer to bulletin PPC-4001 for further control setup information for the PPC4000. - Page 5 4. Low Fire. Green = Low Fire Hold, Gray = Normal fire modulation based on real demand. This setting allows the control to maintain a low fire modulation rate using the digital input. The operation of this setting is impacted by the keypad Low Fire key. 5.
- Page 6 16. Help The help menu provides detailed information on the buttons and feature shown on this display. The main display area will changes color dependent upon mode as the information shown changes. This is in priority order – e.g. a lockout background color (red) will supersede commissioning mode (yellow): Green –...
- Page 7 This page intentionally left blank...
- Page 8 Fireye shall be limited exclusively to the right to replacement or repair as above provided. In no event shall Fireye be liable for consequential or special damages of any nature that may arise in connection with such product or part.
