- Page 1 BETA400 v1.0 REV. 04/2019 USER’S AND INSTALLER’S MANUAL...
-
Page 2: Table Of Contents
(eg. charger, properly. The BETA400 automation is a product exclusively USB cable, electronic material, controls, developed for the automatic opening of swing • If the operator is to be installed at a level higher than etc.) are susceptible to electric shock by... -
Page 3: Operator

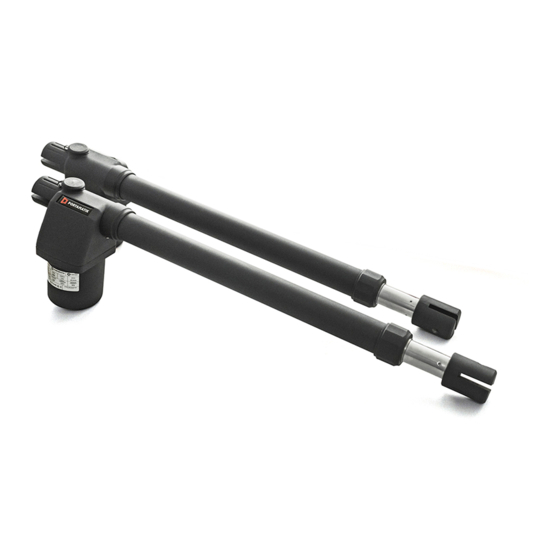

PACKAGE OPERATOR 1169 The dimensions of the BETA400 operator are in milimeters (mm) throughout the manual. The specifications of the operator are as follows: BETA400 230V 230Vac 50/60Hz • Power Supply 110V AC 110V 50/60Hz • Power 230/110V 280W 230V 1,3A •... -
Page 4: Installation
HEIGHT OF THE SUPPORTS INSTALLATION The operator should be installed with a small declination on the front, to prevent water infiltration by the extension arm. To this end, the front support plate must be attached to the gate with a height lower than the height of the rear support plate. -
Page 5: Internal Opening Installation Quotas
(INTERNAL) on the front support Opening mechanical stopper. Axis of rotation of the motor, on the rear support BETA400 | MAX. OPENING ANGLE | EXTERNAL BETA400 | MAX. OPENING ANGLE | INTERNAL Quotas X Quotas X Quotas Y Quotas Y 93º... -
Page 6: Installation Steps
INSTALLATION STEPS Observe the installation dimensions mentioned on the previous pages. It is important that this installation order is adhered to! Otherwise, it is not possible to ensure a correct installation and the automatic controls may not work correctly! 1 • Fasten front bracket 3 •... -
Page 7: Installation Map
INSTALLATION MAP • EXTERIOR • INTERIOR • WARNING PHOTOCELLS • MOTOR BETA400 • EXTERIOR PHOTOCELLS LAMP PHOTOCELLS • KEY SELECTOR • ANTENNA • JUNCTION LEGEND: • CONTROL • Connection cables BOARD • It is important to use a stop at the opening and closing of the gate. -
Page 8: Components Test
COMPONENTS TEST MAINTENANCE To detect if the fault is in the control panel or the motor, it is sometimes necessary to carry out tests with a direct CLEAN STAINLESS STEEL ARM connection to a 230V / 110V power supply. For this purpose, it is necessary to insert a capacitor into the connection so that the automation can operate (check the type of condenser to be used in the product manual). -
Page 9: Troubleshooting
TROUBLESHOOTING Anomaly Procedure Behavior Procedure II Discovering the origin of the problem • Motor • Make sure you • Still not working • Consult a qualified 1 • Open control board and check if 3 • Disconnect the motor from 4 •... -
Page 10: Central Connections
CENTRAL CONNECTIONS Antena * Para mais informações consulte o manual Abertura das fotocélulas a Pedonal instalar. (1 folha) Fotocélulas Fotocélulas Exteriores* Interiores* Fechar os circuitos com ponte (shunt) Abertura quando não usar Completa o circuito de (2 folhas) fotocelulas! Fechadura ∑...
