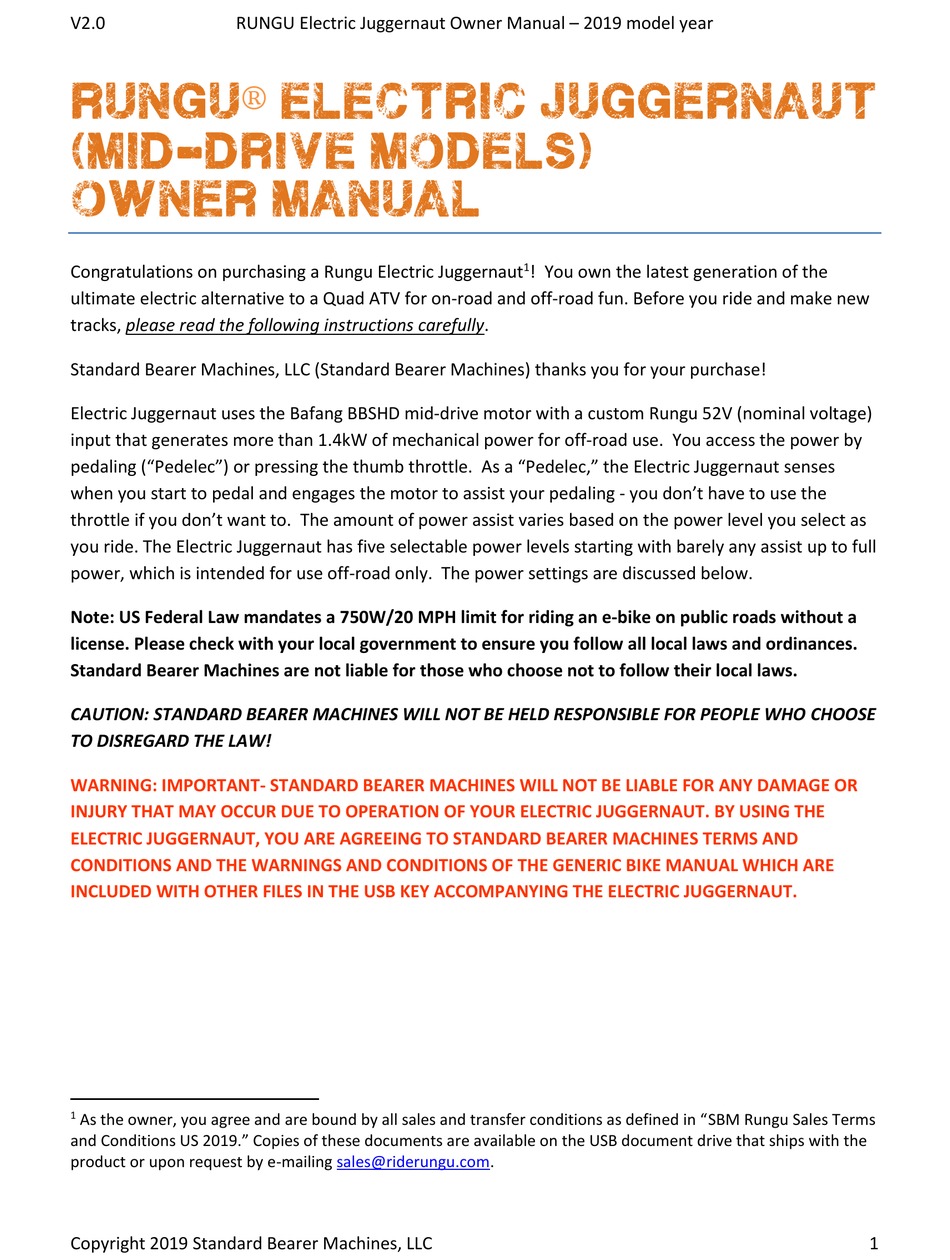

V2.0
RUNGU Electric Juggernaut Owner Manual – 2019 model year
®
rungu
electric juggernaut
(mid-drive models)
owner manual
1

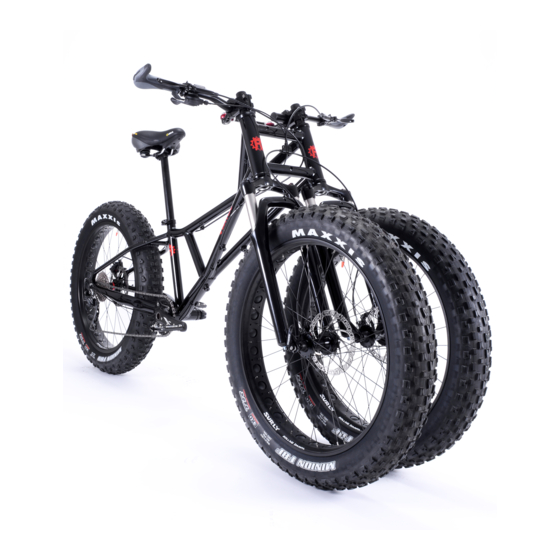

Congratulations on purchasing a Rungu Electric Juggernaut
! You own the latest generation of the
ultimate electric alternative to a Quad ATV for on-road and off-road fun. Before you ride and make new
tracks, please read the following instructions carefully.
Standard Bearer Machines, LLC (Standard Bearer Machines) thanks you for your purchase!
Electric Juggernaut uses the Bafang BBSHD mid-drive motor with a custom Rungu 52V (nominal voltage)
input that generates more than 1.4kW of mechanical power for off-road use. You access the power by
pedaling ("Pedelec") or pressing the thumb throttle. As a "Pedelec," the Electric Juggernaut senses
when you start to pedal and engages the motor to assist your pedaling - you don't have to use the
throttle if you don't want to. The amount of power assist varies based on the power level you select as
you ride. The Electric Juggernaut has five selectable power levels starting with barely any assist up to full
power, which is intended for use off-road only. The power settings are discussed below.
Note: US Federal Law mandates a 750W/20 MPH limit for riding an e-bike on public roads without a
license. Please check with your local government to ensure you follow all local laws and ordinances.
Standard Bearer Machines are not liable for those who choose not to follow their local laws.
CAUTION: STANDARD BEARER MACHINES WILL NOT BE HELD RESPONSIBLE FOR PEOPLE WHO CHOOSE
TO DISREGARD THE LAW!
WARNING: IMPORTANT- STANDARD BEARER MACHINES WILL NOT BE LIABLE FOR ANY DAMAGE OR
INJURY THAT MAY OCCUR DUE TO OPERATION OF YOUR ELECTRIC JUGGERNAUT. BY USING THE
ELECTRIC JUGGERNAUT, YOU ARE AGREEING TO STANDARD BEARER MACHINES TERMS AND
CONDITIONS AND THE WARNINGS AND CONDITIONS OF THE GENERIC BIKE MANUAL WHICH ARE
INCLUDED WITH OTHER FILES IN THE USB KEY ACCOMPANYING THE ELECTRIC JUGGERNAUT.
1
As the owner, you agree and are bound by all sales and transfer conditions as defined in "SBM Rungu Sales Terms
and Conditions US 2019." Copies of these documents are available on the USB document drive that ships with the
product or upon request by e-mailing sales@riderungu.com.
Copyright 2019 Standard Bearer Machines, LLC
1
