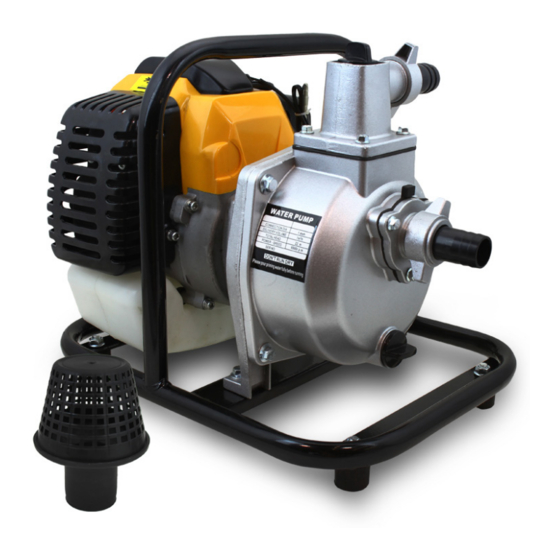

2.5hp gas trash water pump 1” 1850gph 26.5ft
Hide thumbs
Table of Contents

Advertisement

Quick Links

2.5HP GAS TRASH WATER PUMP 1" 1850GPH 26.5FT
ITEM: 71104
OWNER'S MANUAL AND SAFETY INSTRUCTIONS
SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY,
OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT'S
SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH
AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).
FOR QUESTIONS PLEASE CALL OUR CUSTOMER SUPPORT: (909) 628 4900 MON-FRI 9AM TO 3PM PST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 71104 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stark 71104

Summary of Contents for Stark 71104

  • Page 1 2.5HP GAS TRASH WATER PUMP 1” 1850GPH 26.5FT ITEM: 71104 OWNER’S MANUAL AND SAFETY INSTRUCTIONS SAVE THIS MANUAL: KEEP THIS MANUAL FOR SAFETY WARNINGS, PRECAUTIONS, ASSEMBLY, OPERATING, INSPECTION, MAINTENANCE AND CLEANING PROCEDURES. WRITE THE PRODUCT’S SERIAL NUMBER ON THE BACK OF THE MANUAL NEAR THE ASSEMBLY DIAGRAM (OR MONTH AND YEAR OF PURCHASE IF PRODUCT HAS NO NUMBER).

  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION GENERAL SAFETY WARNINGS Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. SAFETY The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur.
  • Page 3 IMPORTANT SAFETY INFORMATION Gasoline fuel and fumes are flammable, and potentially explosive. Use proper fuel storage and handling procedures. DO NOT store fuel or other flammable materials nearby. Have multiple ABC class fire extinguishers nearby. Operation of this equipment may create sparks that can start fires around dry vegetation.

  • Page 4: Parts List

    DIAGRAM AND PARTS LIST WARNING! High Altitude Operation Above 3000 feet At high altitudes, the engine’s carburetor, governor (if so equipped), and any other parts that control the fuel- air ratio will need to be adjusted by a qualified mechanic to allow efficient high-altitude use and to prevent damage to the engine and any other devices used with this product.

  • Page 5: Engine Parts List

    PARTS LIST ENGINE PARTS LIST...

  • Page 6: Operation

    OPERATION 1. CONNECT HOSE 2. TIGHTEN 3. INSERT 4. TIGHTEN 1. Thread intake hose onto Intake Port. NOTICE: Use only a non-collapsible intake hose. 2. Slide the Intake Strainer into the end of the intake hose. Tighten until secure. 3. Thread discharge hose onto Discharge Port. Tighten until secure.

  • Page 7: Starting The Engine

    OPERATION PRE-OPERATION CHECK 1. Remove the plug. 2. Fill with water. 3. Install the plug. STARTING THE ENGINE 1. Use the mixture of gasoline 2. Close the chock, if the engine 3. Press the priming pump two-stroke engine oil, is heated, the chock must be several times until a fuel volume ratio is 25~30:1 opened completely.

  • Page 8: Stopping The Engine

    OPERATION 2. Route the Intake Hose with the Intake Strainer fully immersed in the water supply source. 3. Place Strainer into water to be pumped. NOTICE: Immerse strainer fully in water. Do not operate Pump without Strainer connected to end of suction hose. Keep Strainer out of sand or silt by placing Strainer in a bucket or on stones.

  • Page 9: Troubleshooting And Maintenance

    TROUBLESHOOTING AND MAINTENANCE TO PREVENT SERIOUS INJURY FROM ACCIDENTAL STARTING: Turn the Power Switch of the equipment to its “OFF” position, wait for the engine to cool, and disconnect the spark plug cap before performing any inspection, maintenance, or cleaning procedures. TO PREVENT SERIOUS INJURY FROM EQUIPMENT FAILURE: Do not use damaged equipment.

  • Page 10: Please Read The Following Carefully

    PLEASE READ THE FOLLOWING CAREFULLY THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE ANY PARTS OF THE PRODUCT.
