Mounting the Cortelco 2554 Telephone on a

Wall Jack

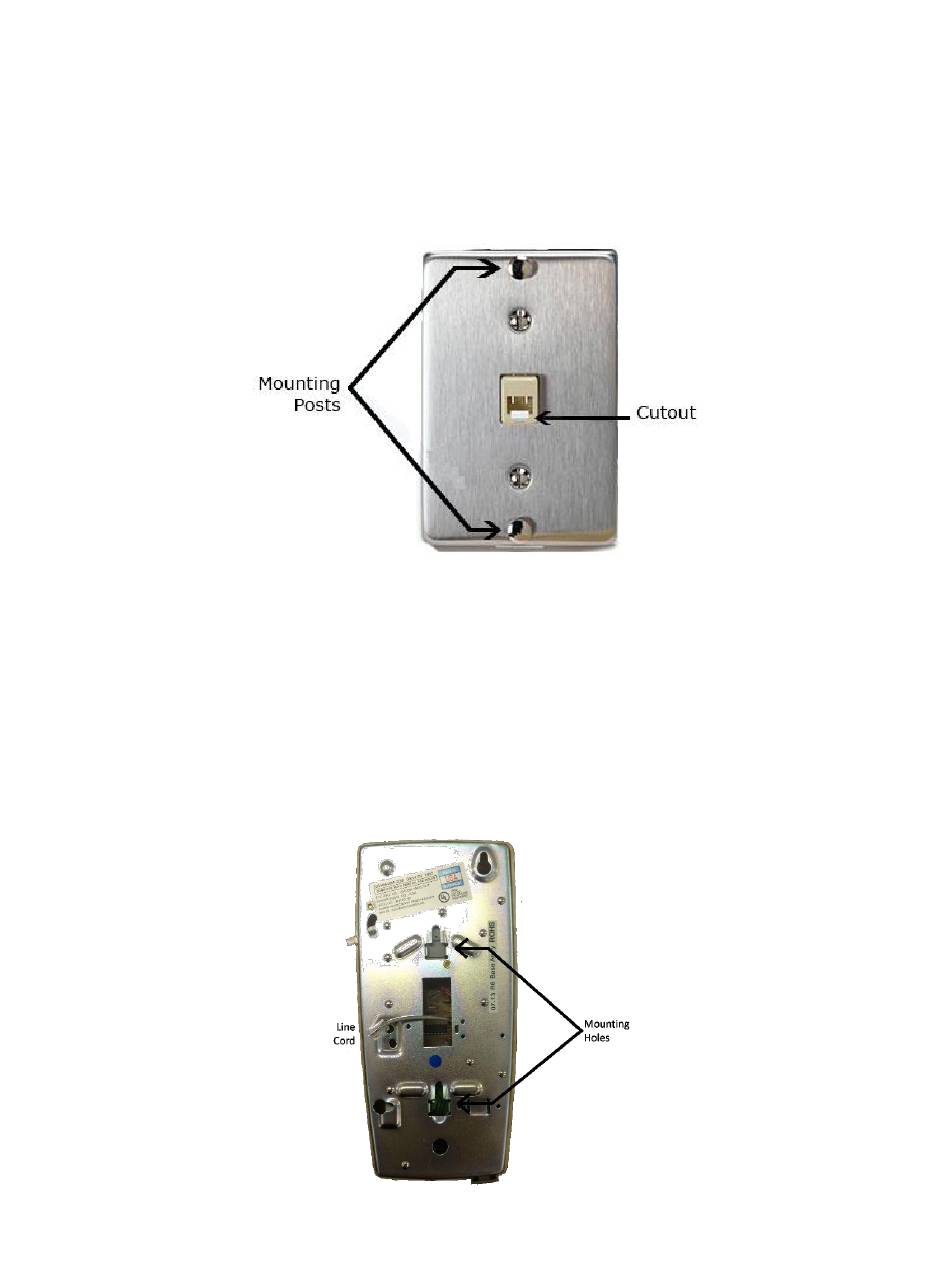

The Cortelco 2554 Telephone is designed to be mounted on a standard RJ-11 wall jack. This jack is

pictured below.

The jack must have mounting posts in order to hold the 2554. Also, note that the jack must be mounted

so that the small cutout is at the bottom of the plastic jack.

The 2554 has two different ways of connecting to the line. Newer phones will have a short line cord

(pigtail cable). Older phones will have a gray sliding jack.

Pigtail Cable Version

To mount the phone, plug the connector on the line cord into the wall jack. Then place the mounting

holes over the mounting posts in the jack and slide the phone down to latch it to the jack.

Table of Contents

Do you have a question about the 2554 and is the answer not in the manual?

Page 1 The Cortelco 2554 Telephone is designed to be mounted on a standard RJ-11 wall jack. This jack is pictured below. The jack must have mounting posts in order to hold the 2554. Also, note that the jack must be mounted so that the small cutout is at the bottom of the plastic jack.
Page 2 Press the phone securely into the jack, and then press it down to latch the phone to the jack. Some wall jacks may not be compatible with the sliding jack version of the 2554. Cortelco recommends the following jacks:...
