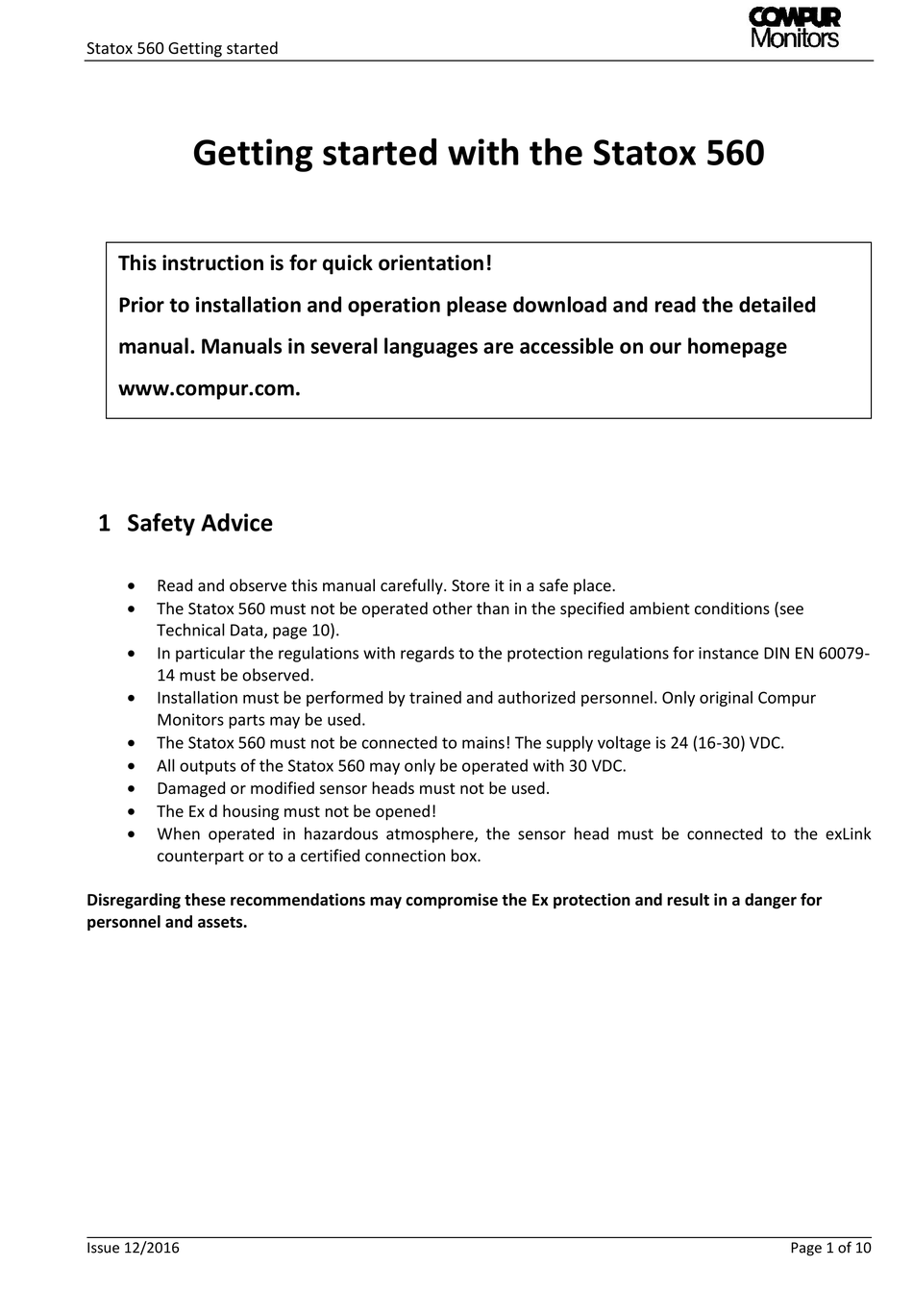

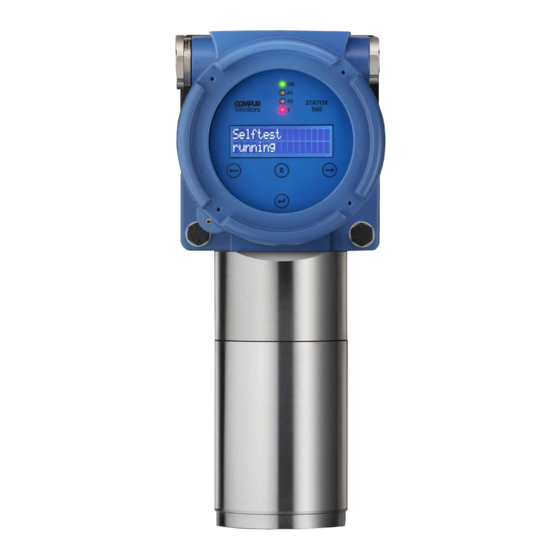

Statox 560 Getting started
Getting started with the Statox 560
This instruction is for quick orientation!
Prior to installation and operation please download and read the detailed
manual. Manuals in several languages are accessible on our homepage
www.compur.com.
1 Safety Advice
Read and observe this manual carefully. Store it in a safe place.
The Statox 560 must not be operated other than in the specified ambient conditions (see
Technical Data, page 10).
In particular the regulations with regards to the protection regulations for instance DIN EN 60079-
14 must be observed.
Installation must be performed by trained and authorized personnel. Only original Compur
Monitors parts may be used.
The Statox 560 must not be connected to mains! The supply voltage is 24 (16-30) VDC.
All outputs of the Statox 560 may only be operated with 30 VDC.
Damaged or modified sensor heads must not be used.
The Ex d housing must not be opened!
When operated in hazardous atmosphere, the sensor head must be connected to the exLink
counterpart or to a certified connection box.
Disregarding these recommendations may compromise the Ex protection and result in a danger for
personnel and assets.
Issue 12/2016
Page 1 of 10
