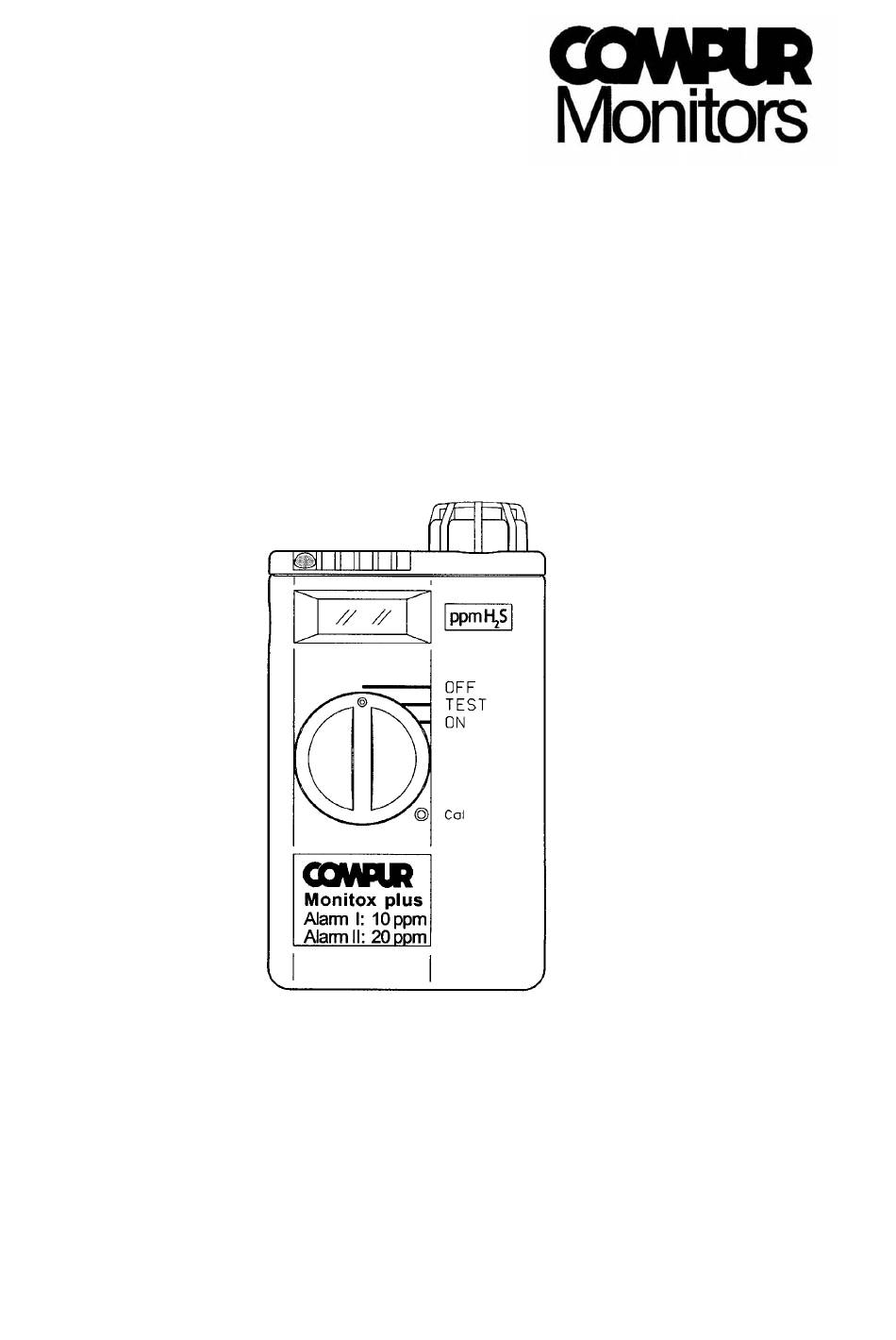

- Page 1 Operating Instructions Compur Monitox plus Subject to changes without notice. Copyright Compur Monitors München Editor: Compur Monitors GmbH & Co. KG Weissenseestr. 101 D-81539 München...
-
Page 2: Table Of Contents
Content Page Monitox plus overview 1. Product description 1.1. Application 1.2. Functional test 1.3. Earphone 1.4. Storage 2. Calibration 2.1. Gas calibration 2.2. Current calibration 2.3. Oxygen sensor 3. Alarm thresholds 4. Maintenance 4.1. Filter cap replacement 4.2. Sensor replacement 4.3. -
Page 3: Monitox Plus Overview
Earphone jack 1. Product description 1.1 Application The Compur Monitox plus warns the user when a toxic gas is present or oxygen deficiency occurs. It should be worn near the breathing zone. The display shows the actual gas concentration in ppm, ppb or %/Vol. -
Page 4: Earphone
“ICAL” is active, to start a gas calibration push it when “GCAL” is active. 2.1 Gas calibration - Place Monitox plus gas adapter (part # 569747) securely on the filter cap. - Connect span gas. NOTE: If using HCN, Cl or other corrosive gases, use non-porus tubing such as Tygon lined with teflon or polypropylene. -
Page 5: Current Calibration
20,9 % oxygen. Zero can be adjusted with pure Nitrogen (GCAL) or electronically (ICAL). 3. Alarm thresholds Compur Monitors recommends to strictly observe the local regulations for the alarm thresholds. Open the instrument. Use proper safety measures for handling CMOS components. Place switch in “TEST” position. -
Page 6: Maintenance
4. Maintenance 4.1 Filter cap replacement Carefully turn the old filter cap 90° counter clockwise. Insert the new filter cap. Turn 90° clockwise. Make sure to use only filter caps for the relevant gas! 4.2 Sensor replacement Remove filter cap. Pull sensor out. Some sensors are shipped with a plug that short circuits the contacts. -
Page 7: Error Messages
6. Error messages Whenever a malfunction occurs, the Compur Monitox plus will give you an error message. The sensor current obtained during gas calibration is out of range. Calibration gas concentration must be within 0,5 TLV and full scale. Switch instrument off and on again to make it operate with the old calibration data. -
Page 8: Status Messages
7. Status messages The status messages give information about the mode in which the instrument operates. New data in the menu GCAL, ICAL, A1 or A2 have been stored. Autozero in process. Gas calibration. Current calibration. Intermediate display when the operation mode has been altered and during the self-test. Self test in process. -
Page 9: Technical Data
No licence is implied or in fact granted under the claims of any patent. Instruments are manufactured by Compur Monitors GmbH & Co. KG, Munich. The General Conditions of Supply and Service of Compur Monitors GmbH & Co. KG are applicable. 5306 500 998 07 00 / 05.05...
