RoboGuard uRx Manual

The repeater station is used to increase the range between a
Roboguard receiver and any Roboguard transmitter.

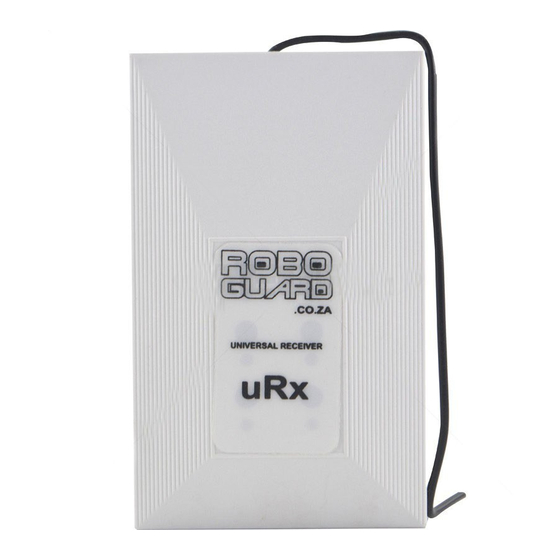

The repeater comprises a Universal Receiver (uRx) wired to a Universal
Transmitter (uTx).
The uRx will pick up any roboguard signal, pass it on to the uTx and
the signal will be re-transmitted 400 metres.
The uTx can be configured to delay the re-transmission. Although not
often used, this feature is important to determine if the repeater is
working properly.
By setting a 4 second delay (see uTx Manual) with the Repeater, HQ
and Roboguard close together, an intruder signal from the Roboguard
will trigger the HQ first and the Repeater will trigger the HQ a second
time, 4 seconds later.
Then reset the uTx to default. The default setting will not cause a
second HQ trigger.
The Repeater station will 'bounce' a roboguard signal over an obstacle
such as a hill or building that is obstructing the signal.
The repeater should be mounted in a high spot where it can receive
the Roboguard signal (you can use an HQ to determine a suitable
location – inside a roof or on top of a building, for example) and it will
then re-transmit the signal to the HQ/Receiver.

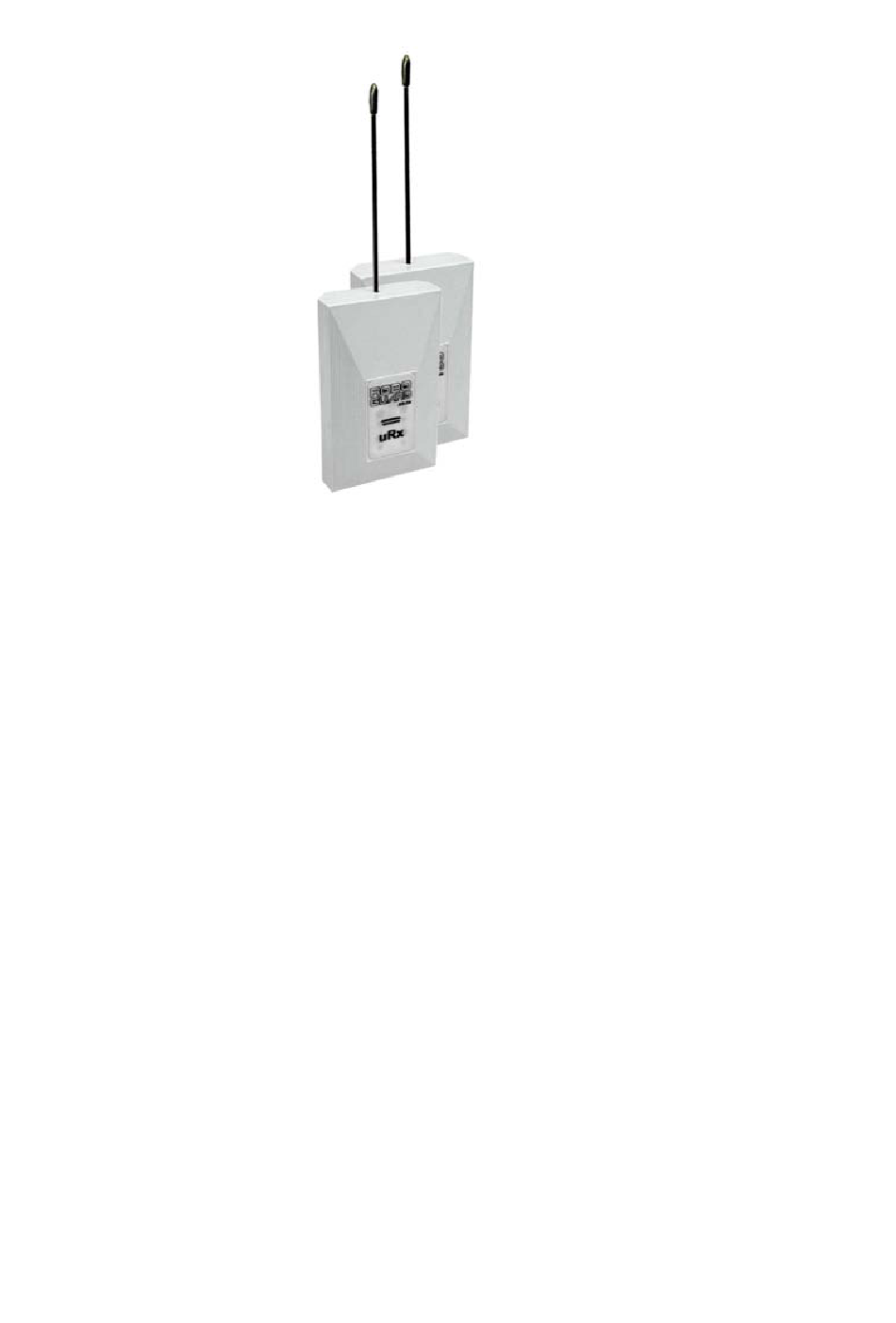

REPEATER - uRx and uTx

Repeater Station 1
