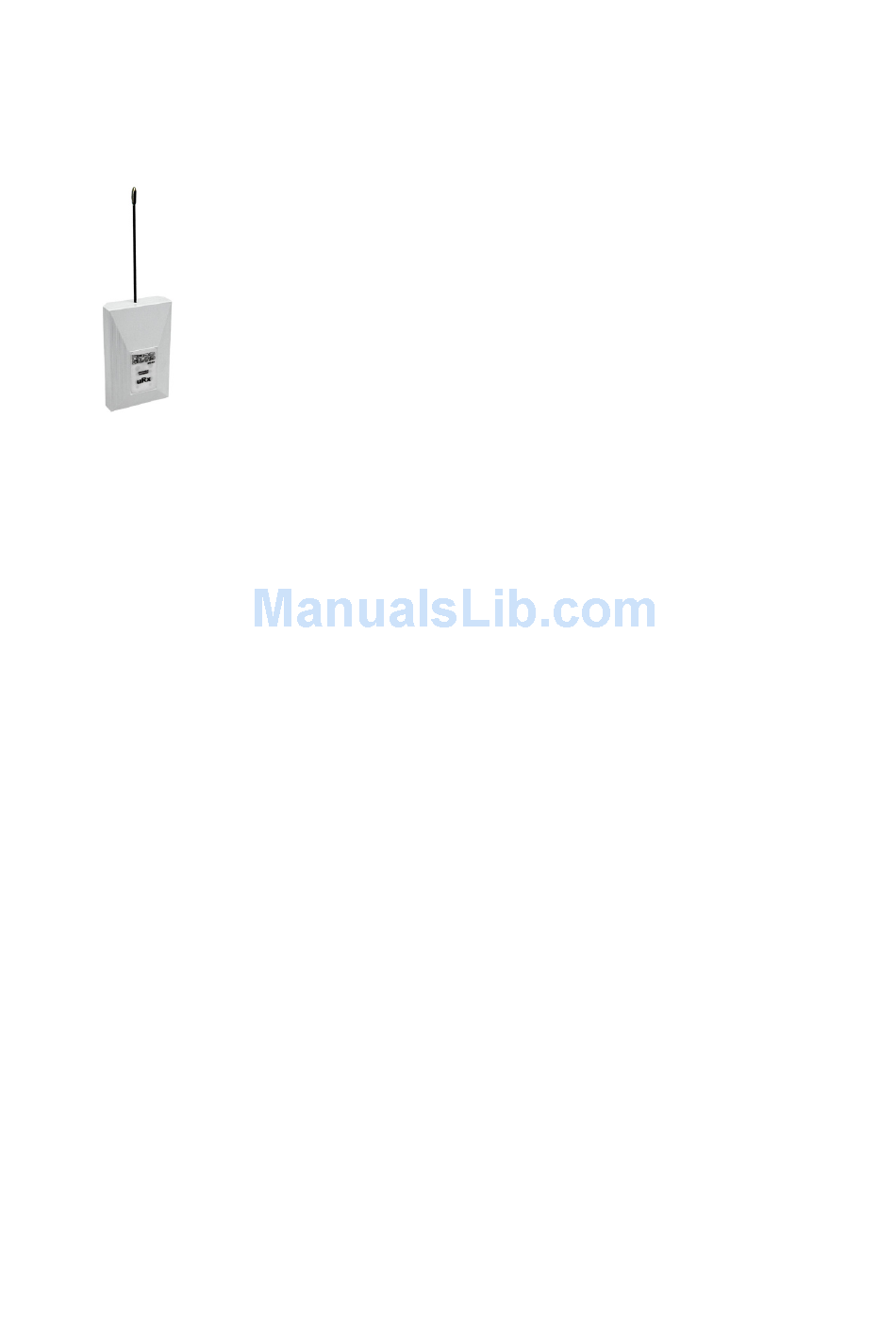

UNIVERSAL RECEIVER (uRx)
common).
Once the uRx has learned a roboguard code, every time it receives
that radio signal, it will respond by triggering a connected device.
This connected device may be an alarm system, a camera system,
a siren, an SMS module, a timer relay - in fact any device capable
of being triggered by an electronic signal.
For example, the uRx can be programmed to respond to a radio
signal from a Roboguard handheld remote. This handheld remote
can then be used as a panic button and the uRx can be used to
trigger an SMS module to send an sms call for help in response to
the panic signal.
Other popular uses include operating garage doors, switching on
external lights and triggering a strike-lock.
The installer must connect the uRx to a 12V-power source and to
the device that you wish to trigger.
The installer must also configure the options on the uRx to correctly
trigger the connected device and must program the transmitter into
the uRx through a learning process.

Installation

When used as a data receiver for the uTx (repeater) or Keypad,
connect 12 volts and 0 volt to the terminals.
Connect the data output (RXO) terminal to the Data/RXD input
terminals on the Keypad/uTx. (see Repeater Station in this manual)

General Operation

The uRx is used as the receiver for the
Keypad and uTx (Repeater Station).
The Universal Receiver (uRx) is also used to
remotely trigger the operation of electronic
devices using Roboguard signals.
The uRx can be "taught" to respond to any
particular roboguard radio signal – Tamper,
Intruder, Auto-test and Remote Tx.
(Intruder and Remote are the most
uRx Manual 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the uRx and is the answer not in the manual?

Questions and answers

Summary of Contents for RoboGuard uRx

  • Page 1 • signal from a Roboguard handheld remote. This handheld remote can then be used as a panic button and the uRx can be used to trigger an SMS module to send an sms call for help in response to the panic signal.
  • Page 2 RF-led flashes for data reception). Wiring See wiring Diagram Below. Wire the uRx to +12V and 0V, ensuring the 0V is common with the 0V of the device to be switched. Wire the data line or the trigger (NC) outputs as needed.
  • Page 3 Manual 3 Coding The device will learn any Roboguard code transmitted while in learn mode. Activate learn mode by using a conductor (like a screwdriver) to short out the program pads on the PCB. The program pads are located between the letter B and the 2-way DIPswitch on the PCB.
