2.7.2

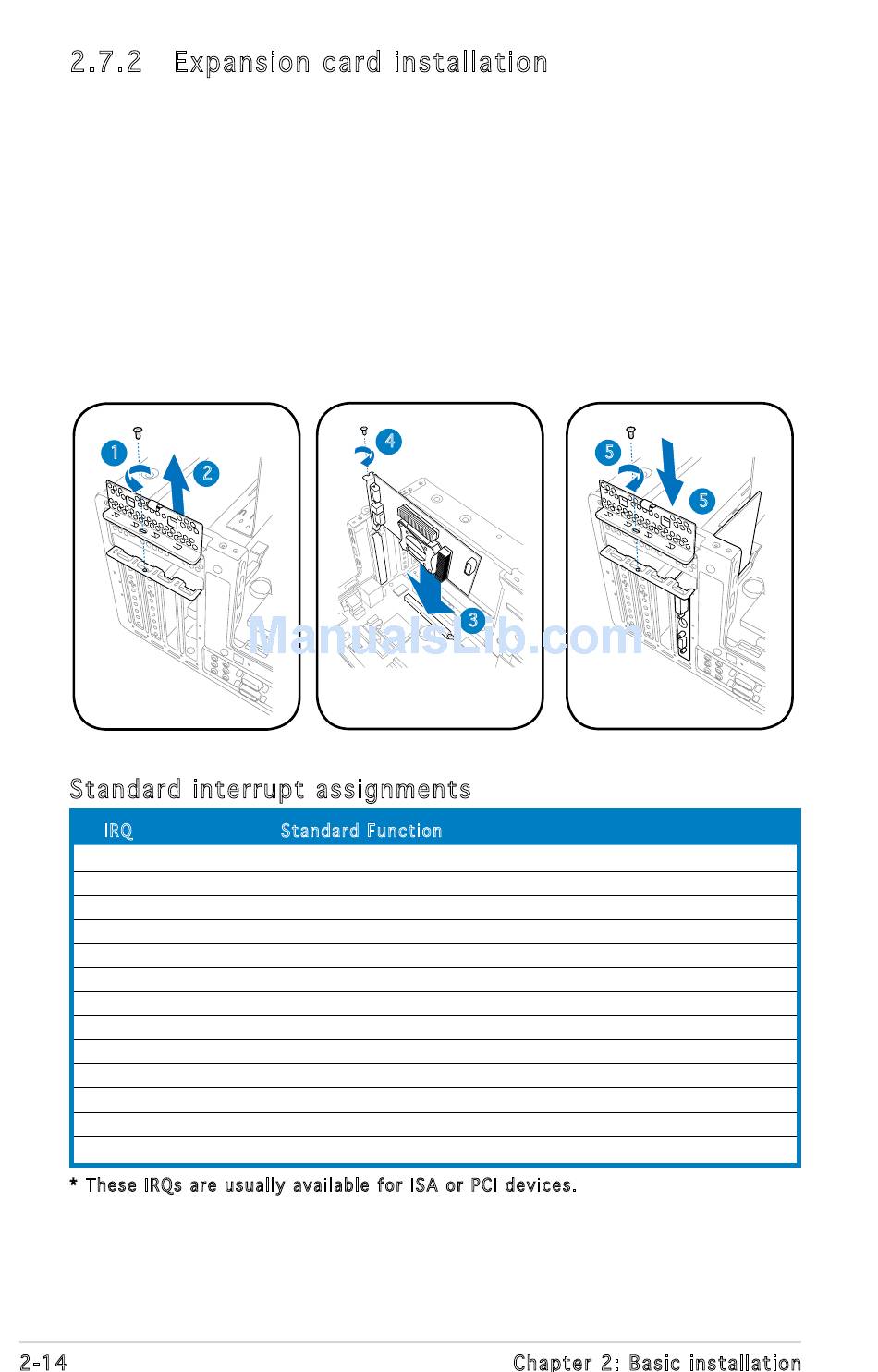

Expansion card installation

To install an expansion card:
1. Before installing the expansion card, read the documentation that
came with it and make the necessary hardware settings for the card.
2. Locate and remove one metal bracket lock screw.
3. Remove the metal bracket lock.
4. Align the card connector with the slot, then press firmly.
5. Secure the card with one screw.
6. Replace the metal braket lock, then secure it with one screw.
1

Standard interrupt assignments

IRQ
0
1
2
4
6
7*
8
9*
10*
11*
12*
13
14*
* These IRQs are usually available for ISA or PCI devices.
2-14
2
Standard Function
System Timer
Keyboard Controller
Programmable Interrupt
Communications Port (COM1)
Floppy Disk Controller
Printer Port (LPT1)
System CMOS/Real Time Clock
ACPI Mode when used
IRQ Holder for PCI Steering
IRQ Holder for PCI Steering
PS/2 Compatible Mouse Port
Numeric Data Processor
Primary IDE Channel
4
3
Chapter 2: Basic installation
