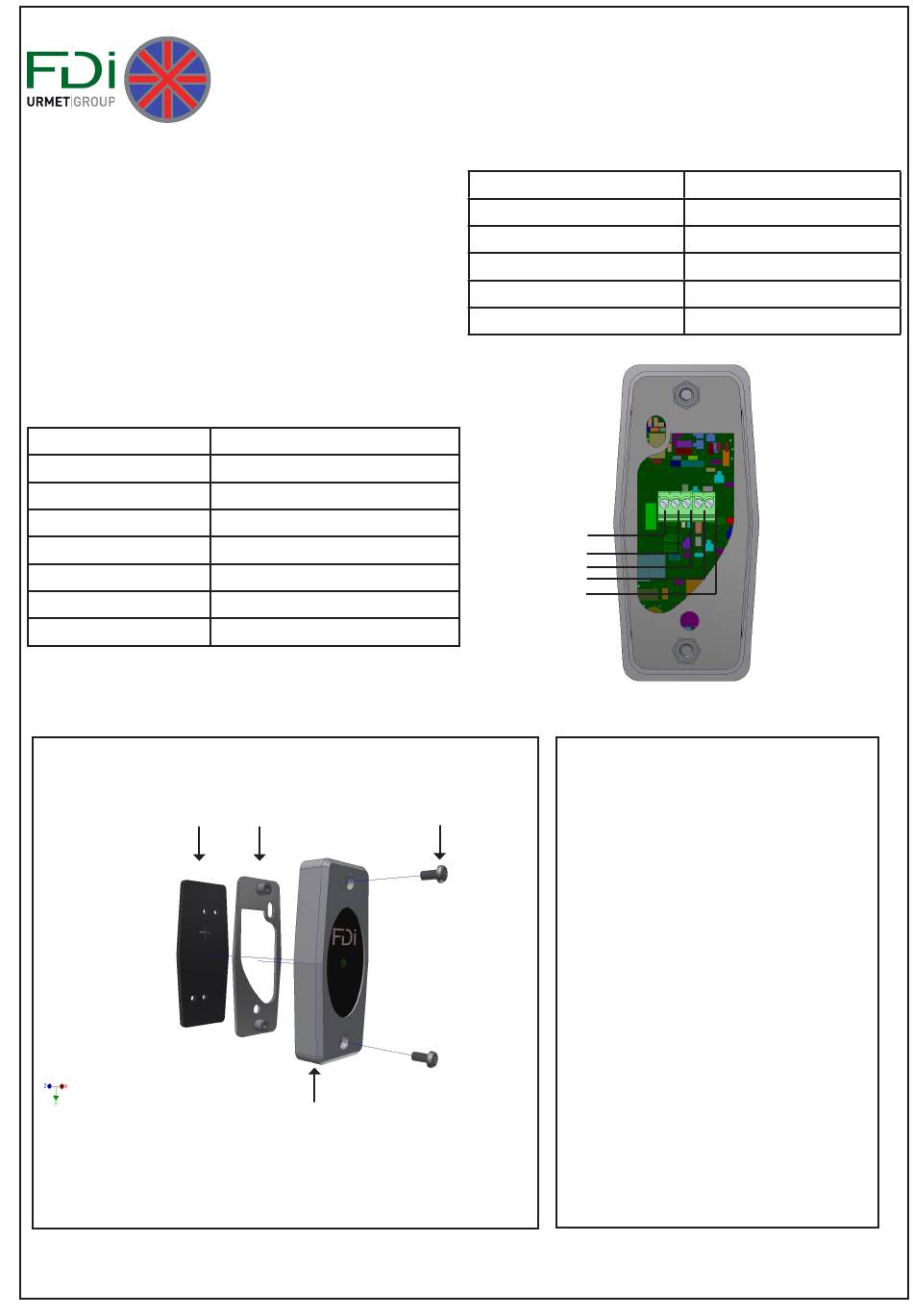

urmet domus FDi FD-020-091 Installation Manual

General Overview:
The VR proxter reader is a 125 kHz vandal resistant proximity
reader. It is designed with a 34 bits Wiegand Output.
Operation:
The reader's led is red when ready to read a proximity key.
When a key is presented to the reader, the led flashes red/
green, meaning that the code is transmitted to the controller.
If the key is valid, the led will change to green.
Features:
Power Supply
Consomption
Wire gauge
Dimension
Reading distance
Frequency
Operating temperature
Protection
rubber gasket
VANDAL RESISTANT READER 125 kHz 5 WIRES WIEGAND 34 BITS
12V DC (supply by the controller)
30mA
5 wires 6/10 100m max / 14AWG
100mm X 45mm X 16mm
up to 6cm (depending on keys)
125 kHz
From 0° to 60°
Diode & Transil
back frame
reader
50-001-042 DOC LEC SAILLIE ANTIVANDALE 125 kHz 5F W34 GB+FR FDI.C
Wiring diagram:
Reader
V+
V-
W0
W1
Led
mounting screws
Step by Step...
1. Stick the rubber gasket on the back frame.
2. Fix the back frame with the rubber gasket
on the wall with two screws in the holes A
and B.
3. Once you have mounted the back frame,
you just need to place the reader and fix it
with the two mounting screws supplied.
INSTALLATION GUIDE
Controller
PSU +
PSU -
Wiegand 0
Wiegand 1
Led
V+ V- W0 W1 Led
V+
V-
W0
W1
Led
